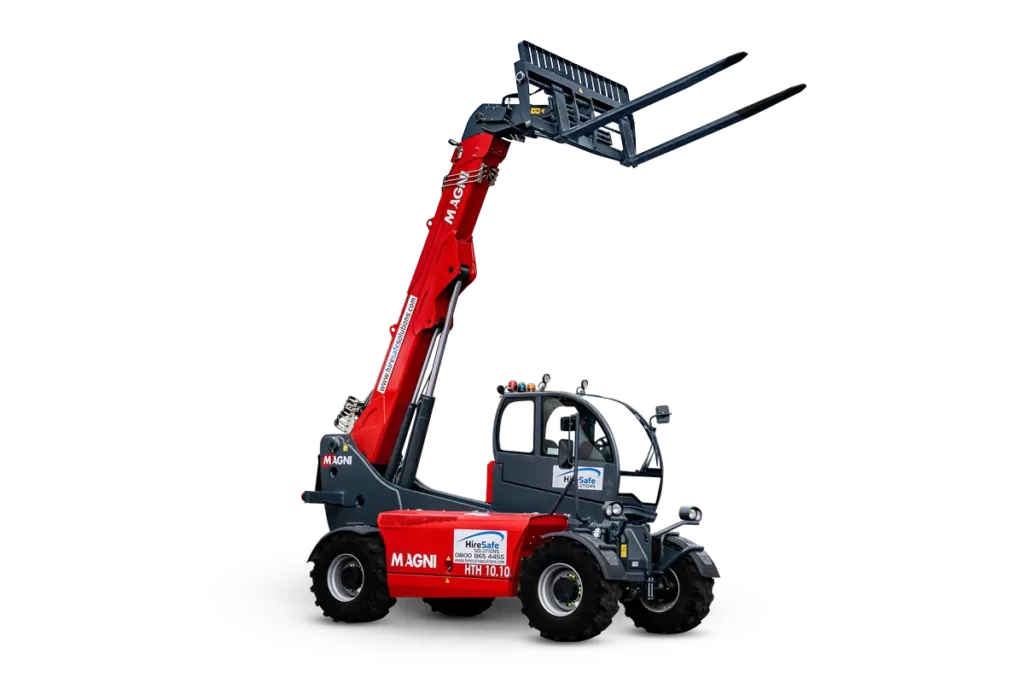

Magni HTH 10.10
Lifting Height: 9.52m / 31ft 3in
Maximum Outreach: 5.05m / 16ft 7in
Min Weight: 2,600.00kg / 5,746lbs
Safe Working Load: 7,000.00kg / 15,470lbs
Magni HTH 35.12
Lifting Height: 11.72m / 38ft 6in
Maximum Outreach: 6.86m / 22ft 7in
Lifting Capacity: 35,000.00kg / 77,350lbs
Machine Length: 7.95m / 26ft 1in

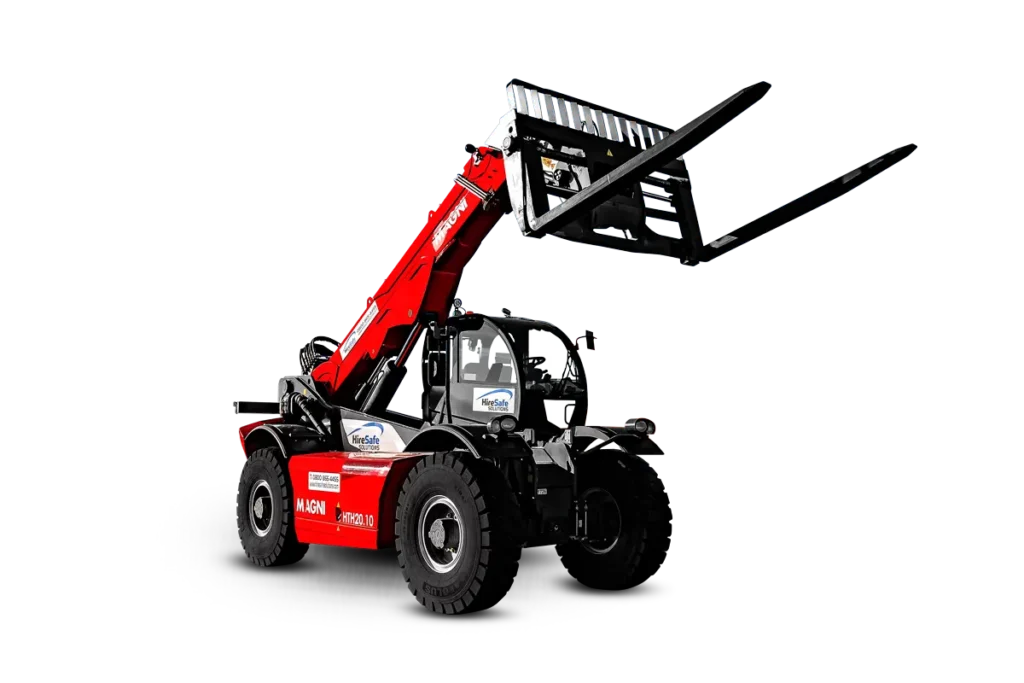

Magni HTH 20.10
Working Height: 9.8m / 32ft 2in
Maximum Outreach: 5.1m / 16ft 9in
Min Weight: 24,000.00kg / 53,040lbs
Safe Working Load: 19,999.00kg / 44,198lbs

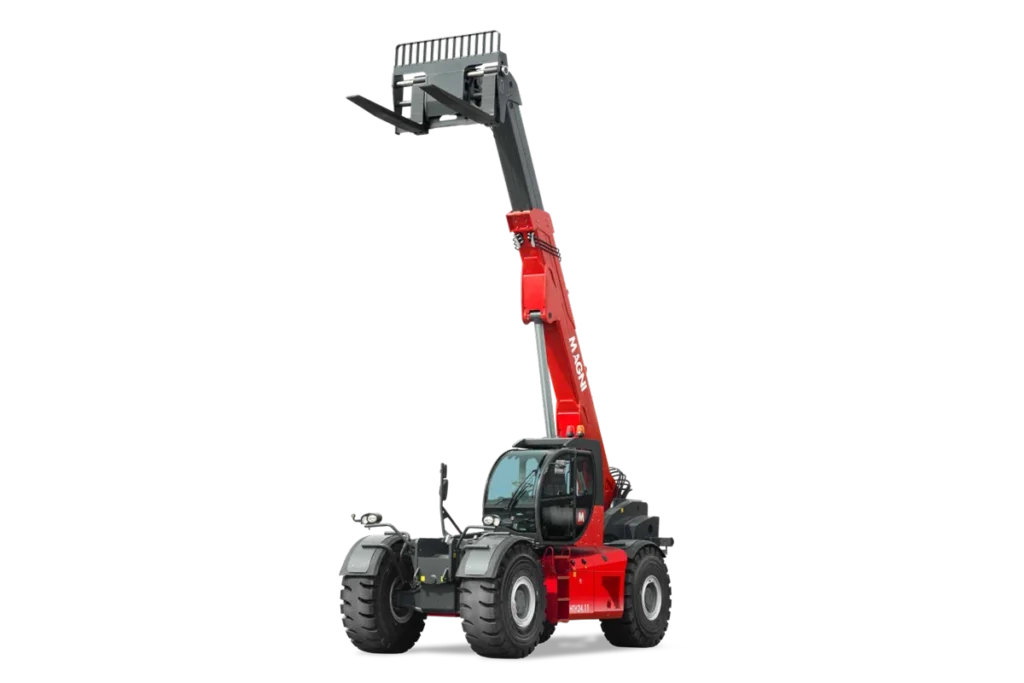

Magni HTH 24.11
Working Height: 10.5m / 34ft 6in
Maximum Outreach: 5.65m / 18ft 7in
Min Weight: 29,700.00kg / 65,637lbs
Safe Working Load: 24,000.00kg / 53,040lbs

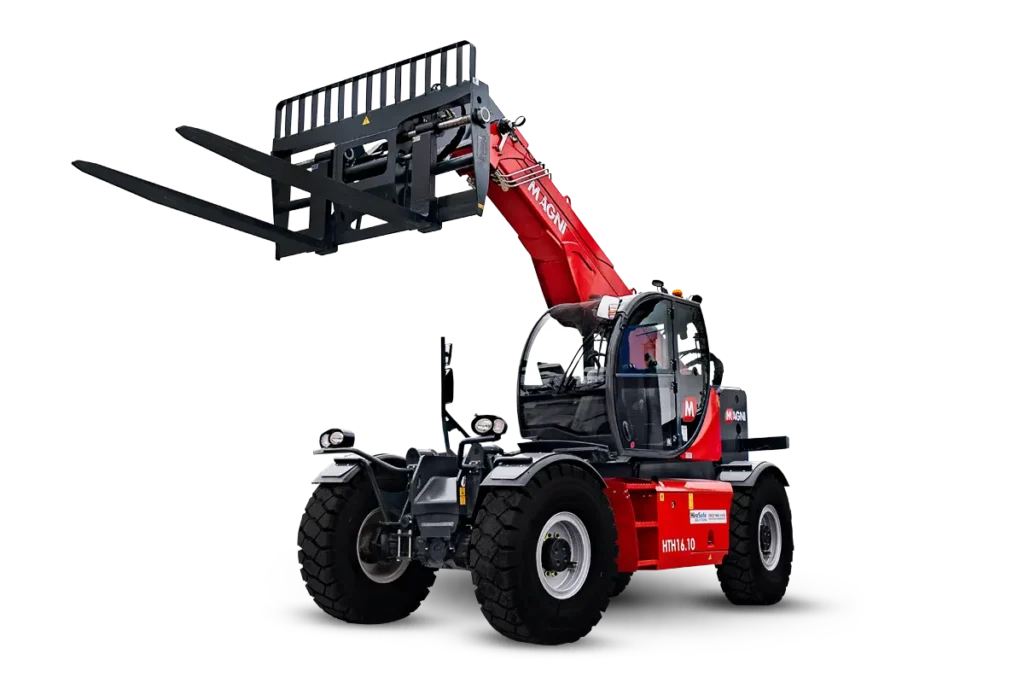

Magni HTH 16.10
Working Height: 10.7m / 35ft 2in
Maximum Outreach: 5.05m / 16ft 7in
Min Weight: 20,500.00kg / 45,305lbs
Safe Working Load: 16,000.00kg / 35,360lbs
Magni HTH 27.11
Working Height: 10.85m / 35ft 8in
Maximum Outreach: 6.6m / 21ft 8in
Min Weight: 35,500.00kg / 78,455lbs
Safe Working Load: 27,000.00kg / 59,670lbs
Magni HTH 30.12
Working Height: 11.7m / 38ft 5in
Maximum Outreach: 6.86m / 22ft 7in
Min Weight: 40,900.00kg / 90,389lbs
Safe Working Load: 30,000.00kg / 66,300lbs
Magni HTH 50.14
Working Height: 14m / 46ft
Maximum Outreach: 8m / 26ft 3in
Min Weight: 65,000.00kg / 143,650lbs
Safe Working Load: 50,000.00kg / 110,500lbs
Heavy duty telescopic handlers are our newest investment in the construction market, they have a payload of between 10 and 45 tonnes and are ideal for heavy duty tasks in manufacturing, ports and mining. They guarantee maneuvering speed and high stability. They have been designed specifically to take on such onerous tasks and so make the ideal companion for those requiring performance and reliability in extreme conditions. They are the undisputed champions in heavy-duty work.
