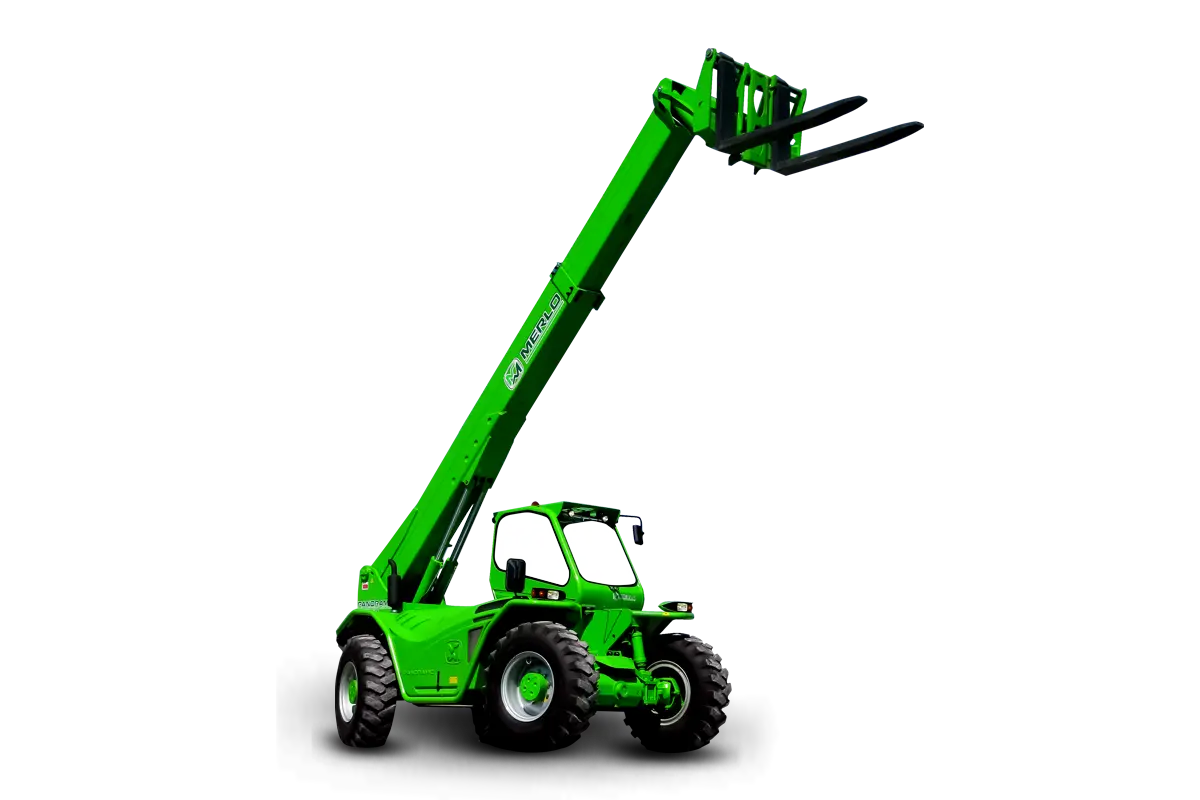

Merlo P120.10 HM

Merlo P120.10 HM

Merlo P120.10 HM

Specification

Make
Make
Merlo
Model
Model
P120.10 HM
Lifting Height
Lifting Height
9.8m / 32ft 2in
Maximum Outreach
Maximum Outreach
5.3m / 17ft 5in
Min Weight
Min Weight
16,200.00kg / 35,802lbs
Lifting Capacity
Lifting Capacity
12,000.00kg / 26,520lbs

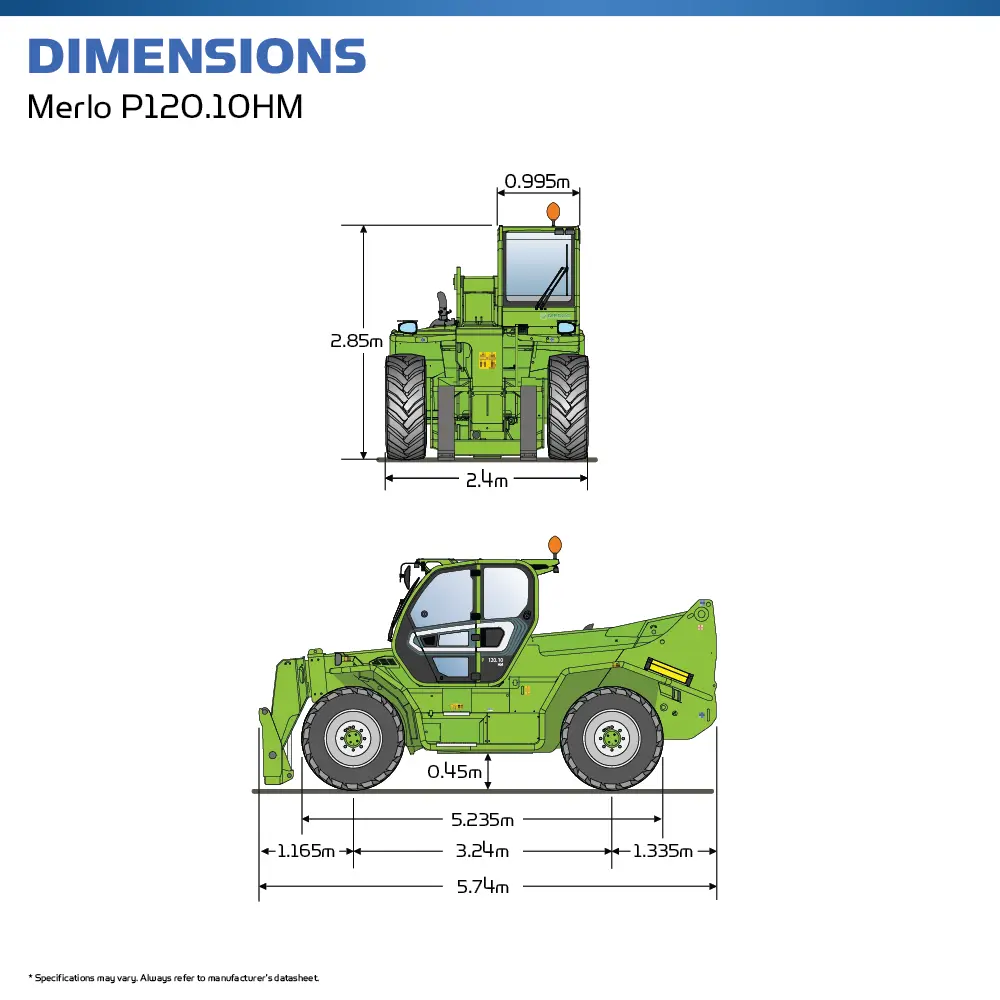

Machine Length
Machine Length
5.74m / 18ft 10in
Machine Width
Machine Width
2.4m / 7ft 11in
Machine Height
Machine Height
2.85m / 9ft 5in
Power Options
Power Options
Diesel

Interested in hiring a Merlo P120.10 HM?

ENQUIRE arrow icon Phone 0800 865 4455
Key Features Accessories Ideal Applications Overview Resources

Merlo P120.10 HM Heavy Lift Telehandler

The Merlo P120.10 HM is a powerful and versatile Heavy Lift Telehandler with high-level performance and reduced dimensions. This machine has been specifically designed to ensure highly effective solutions in all heavy-duty handling operations.

Merlo telehandlers are developed with the aim of being the most compact and lightweight models on the market. Excellent manoeuvrability is ensured by the 4-wheel steering system and the three steering modes, which is able to reduce manoeuvring times and space for decreased fuel consumption.

The Merlo P120.10 HM has excellent braking capacity when the accelerator pedal is released, guaranteeing high torque to the wheels during material handling and transfers, as well as millimetric precision of movements when positioning the load.

It features a maximum lifting height of 9.8 metres, forward reach of 5.3 metres and can lift up to 12,000kg, making it suitable for a range of heavy-lifting applications. It is capable of lifting its full 12,000kg payload capacity to an impressive maximum height of 6.9 metres or, on the flip side, can lift up to 7,000kg when at its maximum lifting height of 9.8 metres.

This Merlo Heavy Lift Telehandler is powered by an FPT NEF45 engine which generates an impressive 170HP. Its 4.5 litre 4-cylinder engine is Emission-level Stage V, ensuring it meets the highest environmental regulations whilst still delivering reliable power. The hydrostatic transmission system has an electronically regulated variable displacement motor. The Finger-Touch system allows the telehandler to change direction while it is moving without forcing the operator to move his hands from the steering wheel. In order to ensure efficient management of the attachments, all the models feature a double-acting hydraulic service line and an electrical socket for machine-implement communication located at the top of the boom.

Key Features of the Merlo P120.10HM

  • Maximum Load Capacity: 12,000kg
  • Maximum Lifting Height: 9.8m
  • Maximum Reach: 5.3m
  • Lifting Height at Max. Load Capacity: 6.9m
  • Reach at Max. Load Capacity: 1.4m
  • Load Capacity at Max. Lifting Height: 7,000kg
  • Load Capacity at Max. Reach: 3,100kg
  • Anti-Pollution Technology: Stage V - SCR + DPF + DOC
  • Boom Side-Shift: +/-185 mm which allows you to correct the positioning of the load without having to move the machine or alter the stability and safety conditions for the operator
  • Telescopic Boom with an exclusive design that ensures lightness, precision and durability.
  • CAB is FOPS (Level II) and ROPS certified. Designed to maintain the maximum level of ergonomics while ensuring excellent protection for the operator. The small width and the wide glass surface ensure unparalleled comfort and full visibility
  • In-cab display for viewing all the operating parameters. Ergonomic joystick and controls with integrated travel-direction selector switch. Cursors and controls are designed to maximise ease of implementation.
  • Hydrostatic transmission with permanent four-wheel drive, 170 HP engine and maximum speed of 40km/h. Exclusive position of the side and longitudinal engine

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Heavy Lift Telehandlers here.

  • Cereals industrial sector
  • Wood industrial sector
  • Refuse industrial sector
  • Farming sector
