Magni HTH 35.12

Magni HTH 35.12

Magni HTH 35.12

Specification

Make
Make
Magni
Model
Model
HTH 35.12
Lifting Height
Lifting Height
11.4m / 37ft 5in
Maximum Outreach
Maximum Outreach
6.9m / 22ft 8in
Min Weight
Min Weight
45,000.00kg / 99,450lbs
Lifting Capacity
Lifting Capacity
35,000.00kg / 77,350lbs
Machine Length
Machine Length
7.95m / 26ft 1in
Machine Width
Machine Width
3m / 9ft 11in
Machine Height
Machine Height
3.6m / 11ft 10in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
9.71m / 31ft 11in
Gradeability
Gradeability
42%

Interested in hiring a Magni HTH 35.12?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

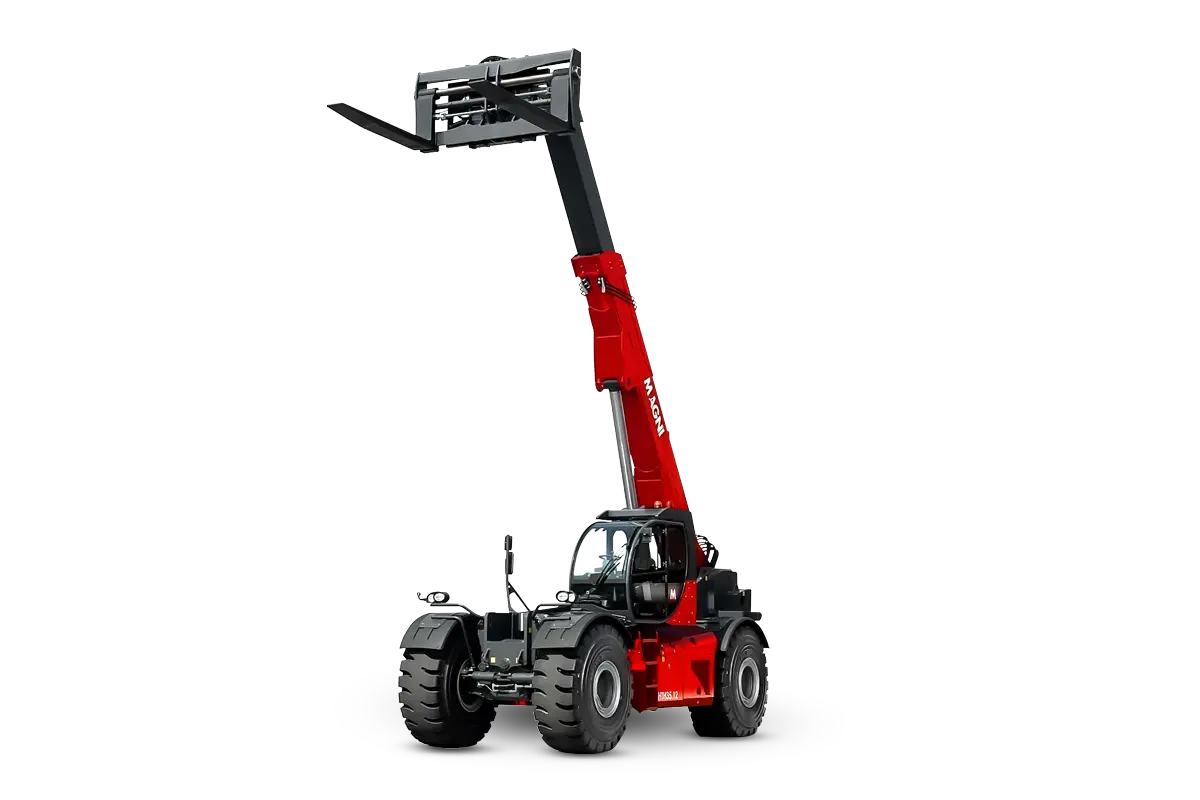

Magni HTH 35.12 Heavy Lift Telehandler

The Magni HTH 35.12 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 35 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The comfort and 360° visibility offered by Magni’s patented cab also allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. Its the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or even moving conveyor belts.

Key Features of the Magni HTH 35.12

  • Comfort seat
  • Adjustable steering column
  • Analogue joypad
  • Heating
  • Air conditioning
  • FM/AM radio with USB and Bluetooth connectivity
  • USB Type-A (5V) inputs
  • Touchscreen, 7”
  • MCTS – Magni Combi Touch System on-board software
  • Automatic RFID tools recognition system
  • LMI – Load Moment Indicator
  • Onboard and remote integrated diagnostics
  • Q-Fit Heavy-Duty
  • Two-line CAN BUS system
  • Automatic front and rear wheel alignment
  • Automatic parking brake
  • Mechanical battery cut-off in engine compartment
  • Electrical system: 24V – IP67

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Heavy Lift Telehandlers here.

  • Quarries
  • Mining
  • Heavy power lift
  • Defence
  • Moving steel bars, rails etc.
