Magni HTH 30.12

Magni HTH 30.12

Magni HTH 30.12

Specification

Make
Make
Magni
Model
Model
HTH 30.12
Lifting Height
Lifting Height
11.7m / 38ft 5in
Maximum Outreach
Maximum Outreach
6.86m / 22ft 7in
Min Weight
Min Weight
40,900.00kg / 90,389lbs
Lifting Capacity
Lifting Capacity
30,000.00kg / 66,300lbs
Machine Length
Machine Length
7.95m / 26ft 1in
Machine Width
Machine Width
3m / 9ft 11in
Machine Height
Machine Height
3.6m / 11ft 10in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
7.99m / 26ft 3in
Gradeability
Gradeability
58%

Interested in hiring a Magni HTH 30.12?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

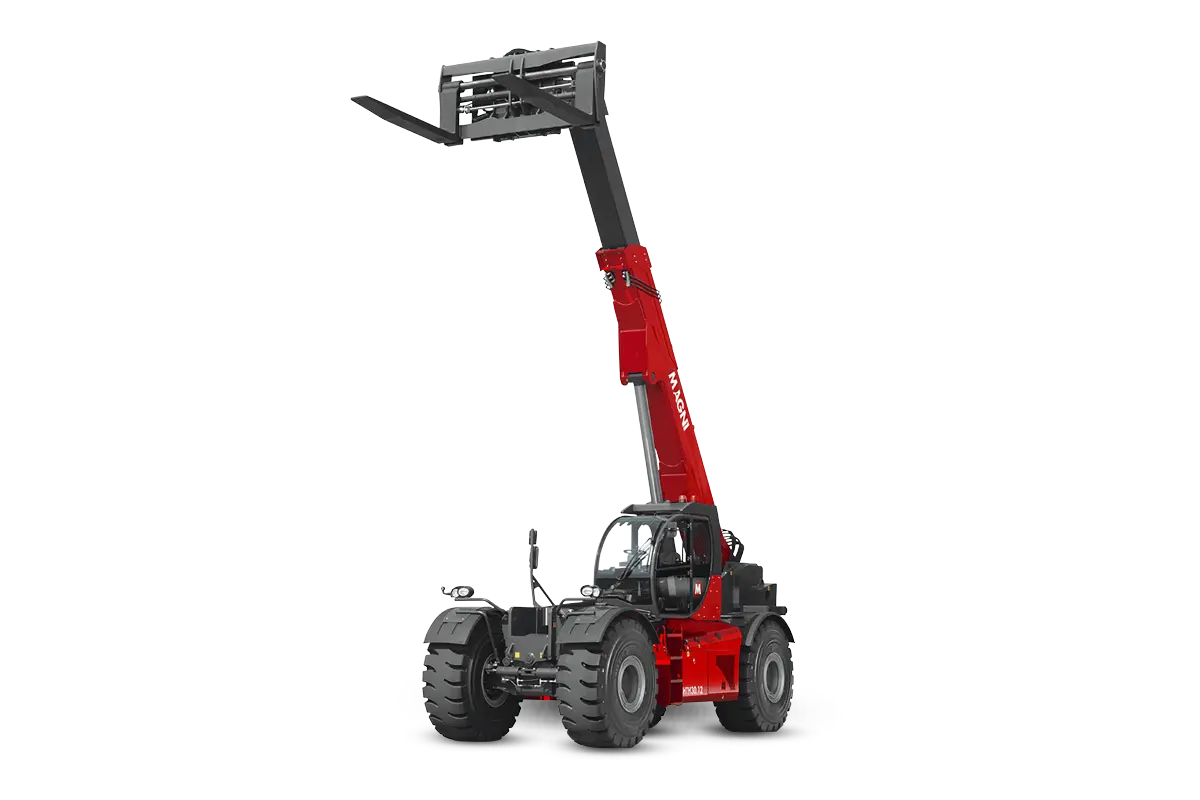

Magni HTH 30.12 - Heavy Lift Telehandler

Main Details

The Magni HTH 30.12 telescopic handler is ideal for moving large, bulky loads in complete safety. It is capable of lifting up to 30 tonnes and is compatible with a wide range of accessories, making it extremely versatile.

Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four wheel drive system, three manoeuvring modes and high ground clearance also make it highly manoeuvrable on all terrains. The HTH 30.12 is also equipped with a 350 hp engine and hydrostatic transmission which offers enhanced power, manoeuvrability and precision when moving loads.

The comfort and 360° visibility offered by Magni’s patented cab also allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts.

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI

  • Quarries
  • Mining
  • Heavy power lift
  • Moving steel bars, rails etc..
