Magni HTH 24.11

Magni HTH 24.11

Magni HTH 24.11

Specification

Make
Make
Magni
Model
Model
HTH 24.11
Lifting Height
Lifting Height
10.5m / 34ft 6in
Maximum Outreach
Maximum Outreach
5.7m / 18ft 9in
Min Weight
Min Weight
29,700.00kg / 65,637lbs
Lifting Capacity
Lifting Capacity
24,000.00kg / 53,040lbs

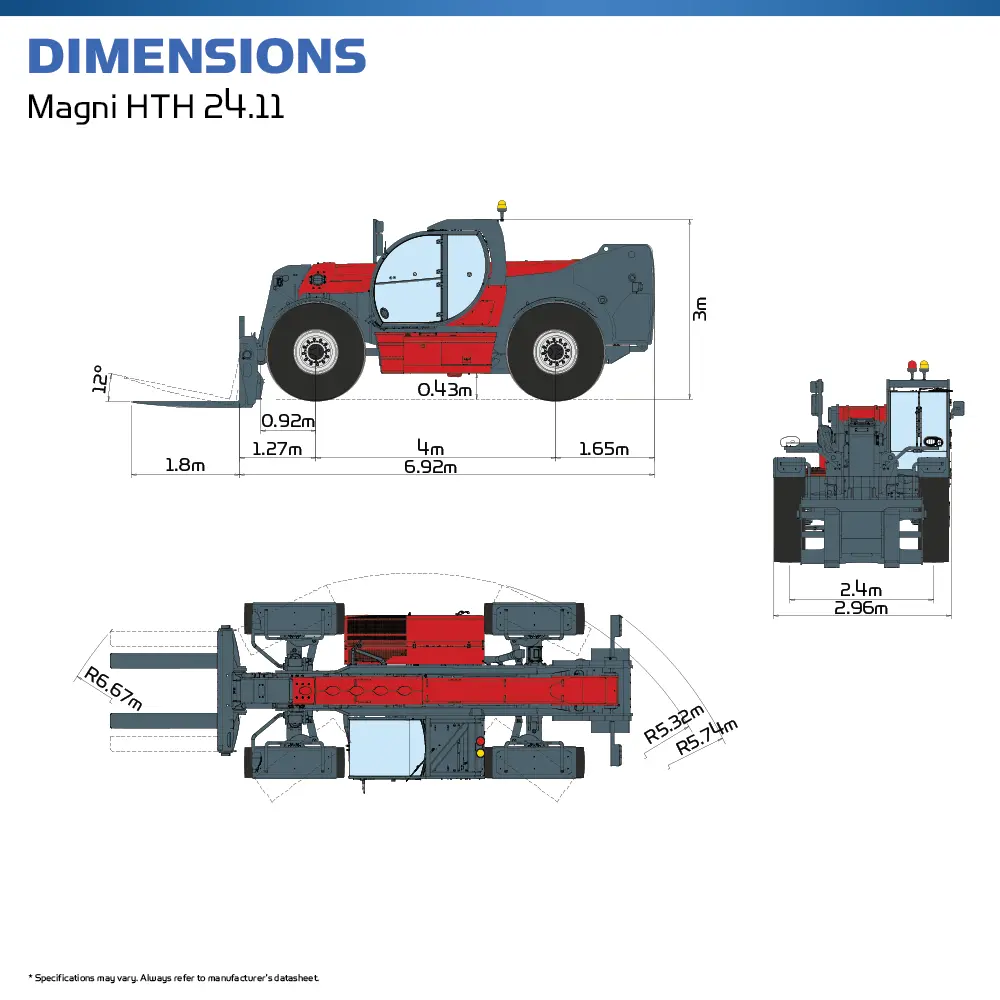

Machine Length
Machine Length
6.92m / 22ft 9in
Machine Width
Machine Width
2.96m / 9ft 9in
Machine Height
Machine Height
3m / 9ft 11in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
5.41m / 17ft 9in
Gradeability
Gradeability
64%

Interested in hiring a Magni HTH 24.11?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

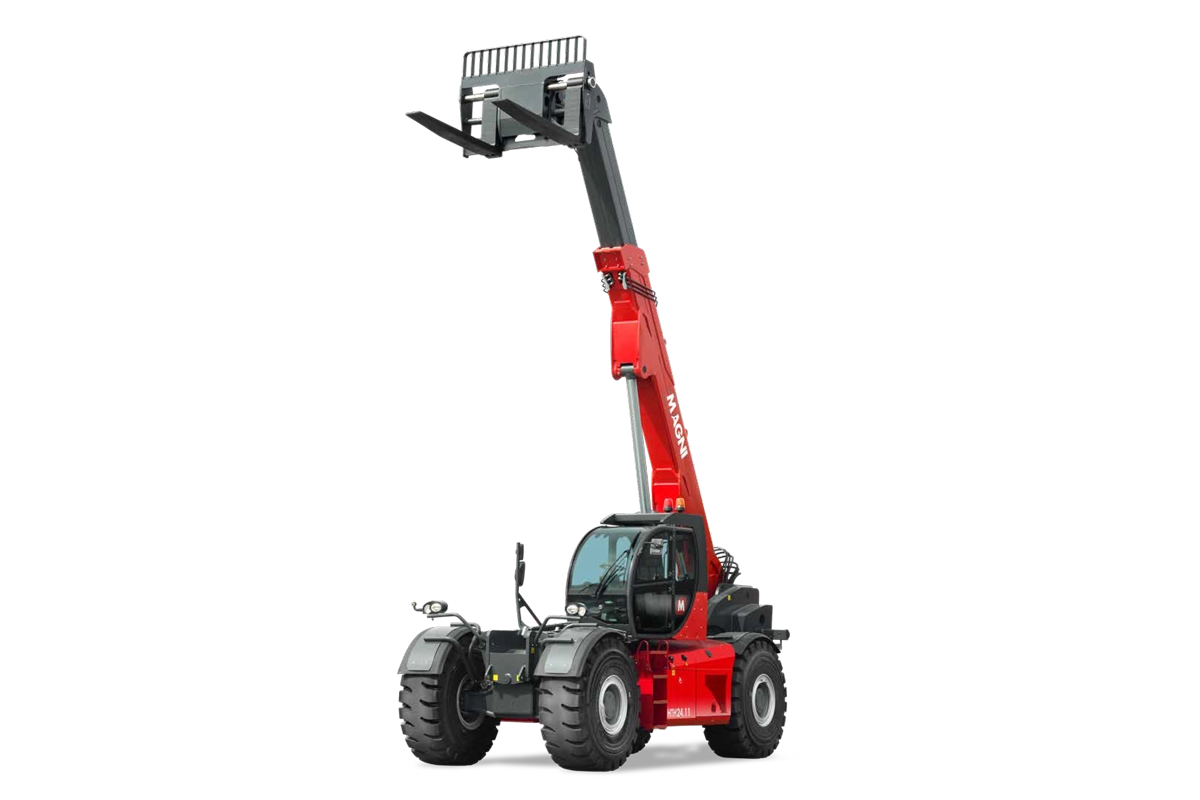

Magni HTH 24.11 Heavy Lift Telehandler

The Magni HTH 24.11 telescopic handler is ideal for moving large, bulky loads in complete safety. it is capable of lifting up to 24 tonnes and is compatible with a wide range of accessories, making it extremely versatile.

Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four wheel drive system, three manoeuvring modes and high ground clearance also make it highly manoeuvrable on all terrains. The comfort and 360° visibility offered by Magni’s patented cab also allow the operator to work under the optimum conditions, and help improve safety during delicate movements.

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Key Features of the Magni HTH 24.11

  • Comfort seat
  • Adjustable steering column
  • Analogue joypad
  • Heating
  • Air conditioning
  • FM/AM radio with USB and Bluetooth connectivity
  • USB Type-A (5V) inputs
  • Touchscreen, 7”
  • MCTS – Magni Combi Touch System on-board software
  • Automatic RFID tools recognition system
  • LMI – Load Moment Indicator
  • Onboard and remote integrated diagnostics
  • Q-Fit Heavy-Duty
  • Two-line CAN BUS system
  • Automatic front and rear wheel alignment
  • Automatic parking brake
  • Mechanical battery cut-off in engine compartment
  • Electrical system: 24V – IP67

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Heavy Lift Telehandlers here.

  • Quarries
  • Mining
  • Heavy power lift
  • Moving steel bars, rails etc.
  • Heavy Logistics
  • Defence
