Sinoboom AB22J Plus

Sinoboom AB22J Plus

Sinoboom AB22J Plus

Specification

Make
Make
Sinoboom
Model
Model
AB22J
Working Height
Working Height
23.6m / 77ft 6in
Platform Height
Platform Height
21.6m / 70ft 11in
Min Weight
Min Weight
12,000.00kg / 26,520lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs

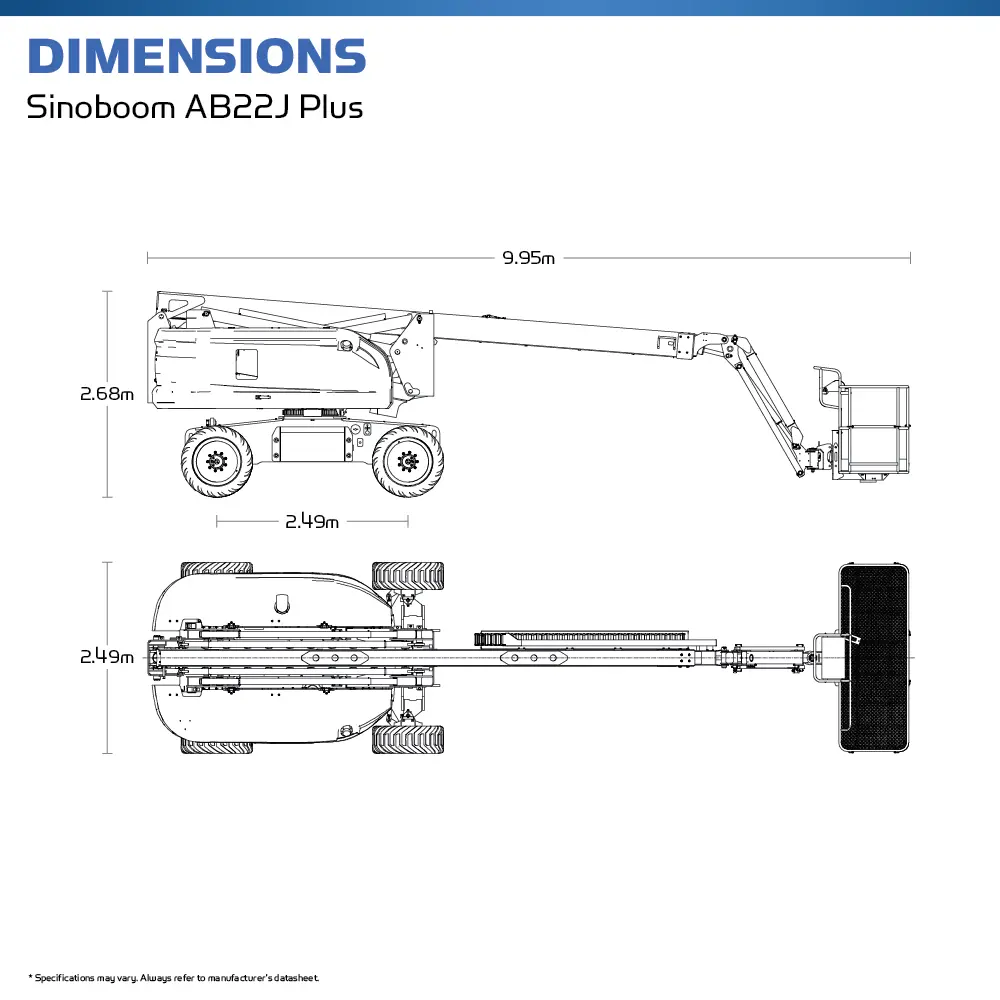

Machine Length
Machine Length
9.95m / 32ft 8in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.68m / 8ft 10in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
3.59m / 11ft 10in
Gradeability
Gradeability
40%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Sinoboom AB22J Plus?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

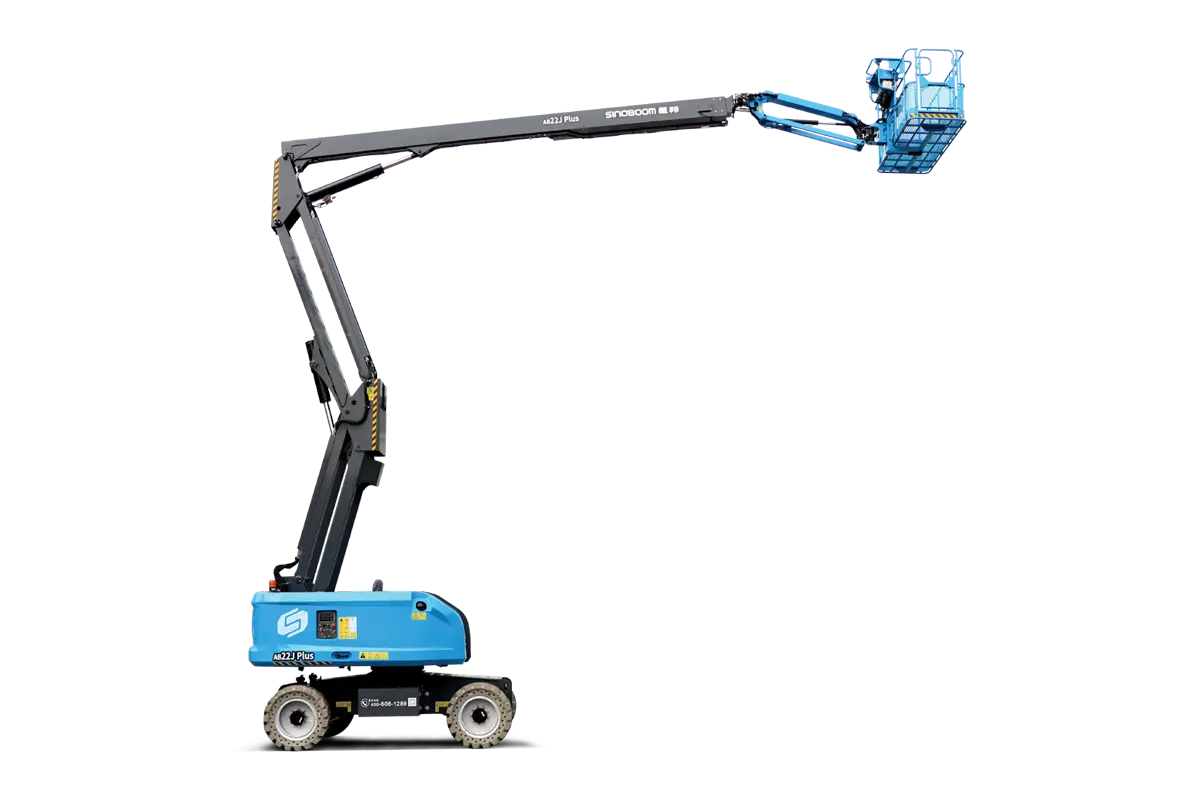

Sinoboom AB22J Plus (AB710J Plus) Diesel Articulated Boom Lift

The Sinoboom AB22J Plus is a diesel-powered articulated boom lift/cherry picker that features a working height of 23.6m, horizontal outreach of 13.35m and three heavy-duty load options: 230 kg (unrestricted), 340 kg and 454 kg (restricted). The powerful 4-wheel drive delivers up to 40% gradeability, giving you exceptional climbing capability outdoors, whilst its non-marking rough terrain tyres also allow it to be used indoors in sensitive environments. The 360° continuous turntable rotation and 180° platform rotation ensure precise positioning, while the active oscillating function and 5° tilt rating provide stability and control on uneven terrain.

Designed for maximum usability, the AB22J Plus has a compact structure making it shorter than an equivalent telescopic boom lift. This, paired with the machine's four-wheel steering allows you to manoeuvre easily around obstacles and work in tighter spaces.

It features a spacious platform measuring 2.44m (L) x 0.91m (W) and can carry up to 2 people throughout its full working envelope, or up to 3 people when height/outreach is restricted.

The AB22J Plus has been designed with the operator's safety in mind. In addition to the secondary guarding, anti-pinch devices and emergency stop systems, the machine also features Sinoboom's voice broadcast feature; an intelligent safety system that provides real-time, actionable, and audible notifications to the operator for various functions and potential hazards. This feature works in conjunction with the large 7-inch smart screen to enhance operator awareness whilst in use.

Whilst this machine is powered by a robust Stage V diesel engine, here at Hire Safe Solutions we also offer an all-electric version, the Sinoboom AB22EJ Plus, which is suitable if needing to work indoors for prolonged periods.

Key Features of the Sinoboom AB22J Plus

  • Active oscillating function
  • Four-wheel drive
  • Four-wheel steer
  • 7-in smart screen
  • 360° Continuous turntable rotation
  • 180° Platform rotation function
  • Fault diagnosis system
  • Hydraulic levelling for platform
  • Tilt protection system - Max allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Voice broadcast
  • Proportional control with 3 joysticks
  • Platform with inward swinging gate (2.44×0.91×1.1m)



Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.



Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation and repair tasks
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing and facility inspections
  • Event Management: Well-suited for event setup and maintenance tasks, including lighting, signage, and rigging installations
  • Utility Work: Ideal for utility maintenance, tree trimming, and outdoor landscaping projects with ease

The Sinoboom AB22J Plus can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
