Sinoboom AB22EJ Plus

Sinoboom AB22EJ Plus

Sinoboom AB22EJ Plus

Specification

Make
Make
Sinoboom
Model
Model
AB22EJ Plus
Working Height
Working Height
23.6m / 77ft 6in
Platform Height
Platform Height
21.6m / 70ft 11in
Maximum Outreach
Maximum Outreach
13.4m / 44ft
Min Weight
Min Weight
10,900.00kg / 24,089lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs

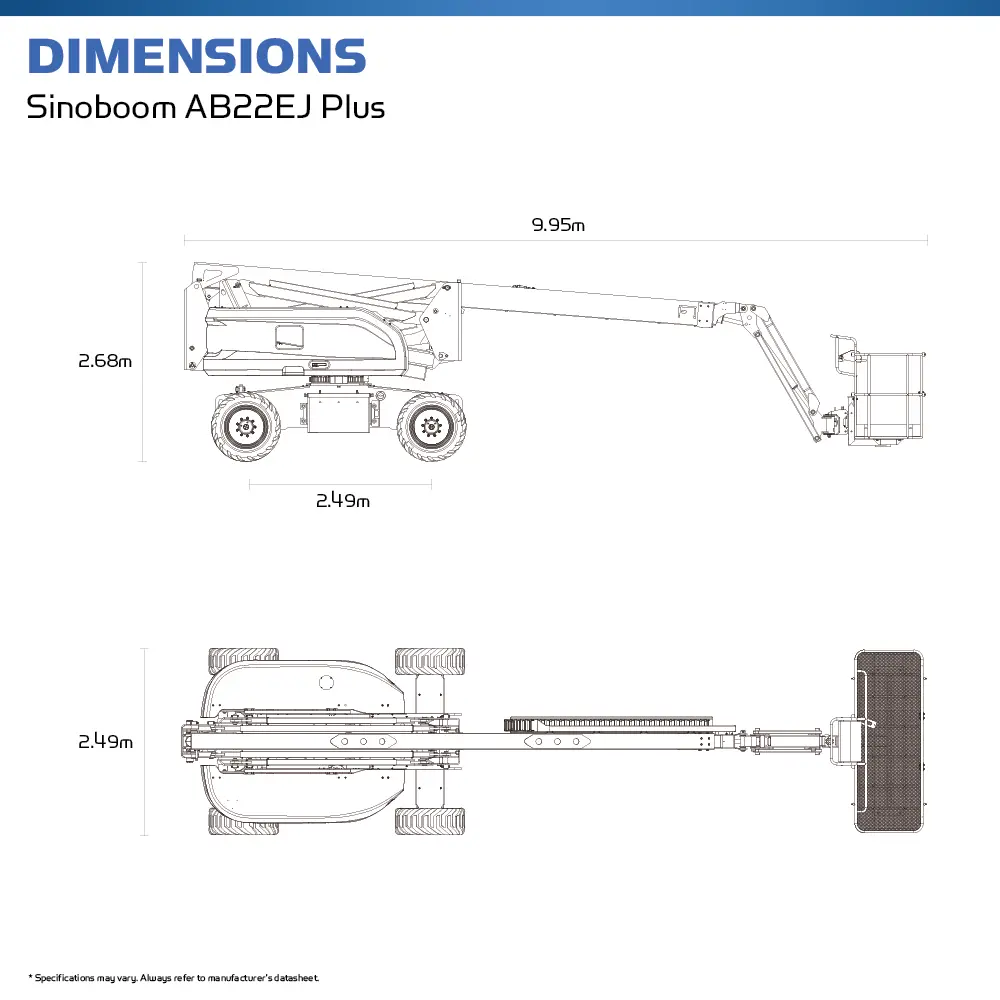

Machine Length
Machine Length
9.95m / 32ft 8in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.68m / 8ft 10in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
2.4m / 7ft 11in
Gradeability
Gradeability
40%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Sinoboom AB22EJ Plus?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

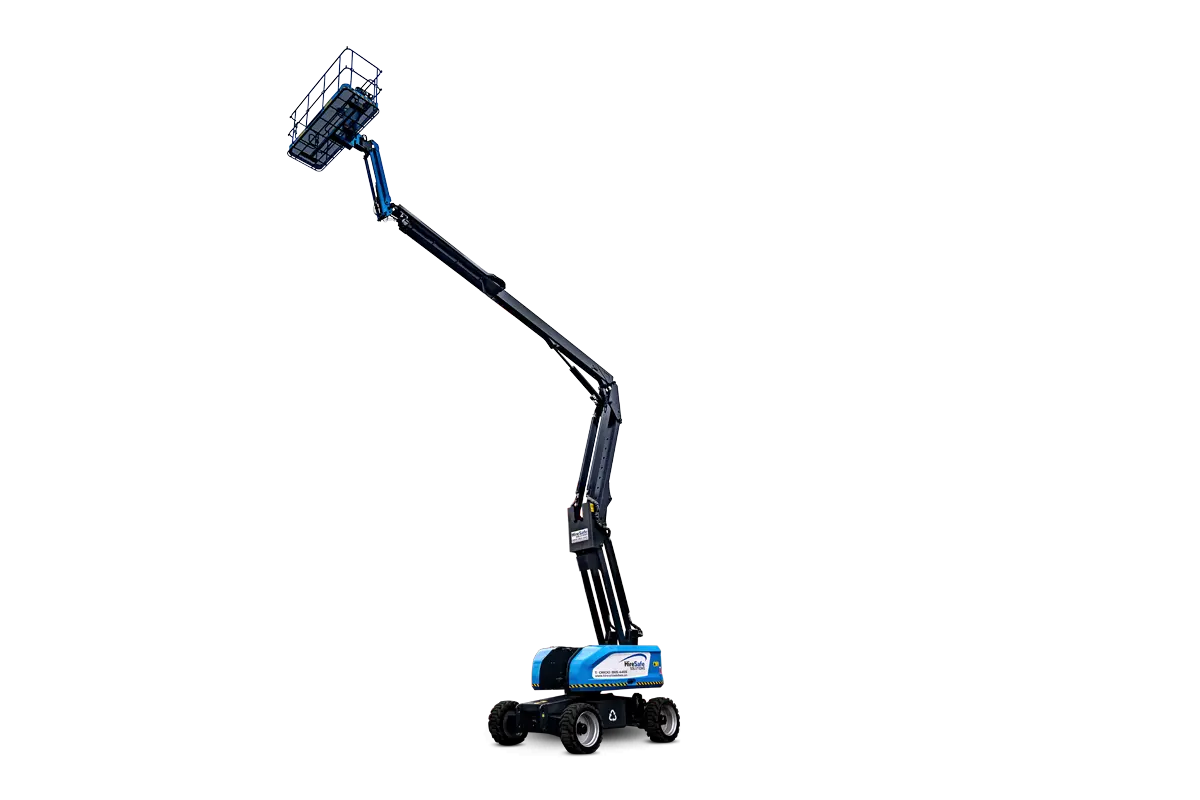

Sinoboom AB22EJ Plus (AB710EJ Plus) Electric Cherry Picker

The Sinoboom AB22EJ Plus electric cherry picker - also known as the AB710EJ Plus - is remarkably versatile in both indoor and outdoor environments. It features a working height of 23.6m and has a maximum safe working load of 454kg when its horizontal reach is 10.45m, 340kg at 11.9m outreach and 230kg at its maximum outreach of 13.4m.

With powerful electric motors, 4-wheel drive, and rugged non-marking rough terrain tyres, the Sinoboom AB22EJ Plus is capable of navigating off-road terrains with ease whilst maintaining near-silent operations indoors. 360° continuous turntable rotation and 180° platform rotation come as standard, allowing it to be easily moved into position from both the platform and ground controls.



Key Features of the Sinoboom AB22EJ Plus

  • Smooth off-road and quiet indoor operation
  • 4WD, 40% gradeability
  • Standard active oscillation, excellent flexibility
  • Excellent Performance, Safety and Reliability
  • Smart display for easy machine status and fault diagnosis
  • Rexroth controller comply with ISO13849 standard
  • The main boom and secondly boom are equipped with angle sensors, to automatically reduce speed and act as a buffer
  • Active oscillating function
  • 5-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Emergency lowering system
  • Hydraulic platform levelling
  • Max tilt rating to 5°
  • Tilt protection system
  • Flashing beacon
  • 2.44 m x 0.91m platform

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation, and repair tasks.
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing, and facility inspections.
  • Event Management: Well-suited for event setup and maintenance tasks, including lighting, signage, and rigging installations.
  • Utility Work: Versatile enough to handle utility maintenance, tree trimming, and outdoor landscaping projects with ease.

The Sinoboom AB22EJ Plus can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Sinoboom AB22EJ Plus comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Lithium-ion Battery

Lithium-ion Battery
Extra Capacity

Extra Capacity
Non-Marking Tyres

Non-Marking Tyres
Four Wheel Drive

Four Wheel Drive
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
