Genie Z80 60

Genie Z80 60

Genie Z80 60

Specification

Make
Make
Genie
Model
Model
Z80 60
Working Height
Working Height
25.77m / 84ft 7in
Platform Height
Platform Height
23.77m / 78ft
Maximum Outreach
Maximum Outreach
18.29m / 60ft 1in
Min Weight
Min Weight
16,284.00kg / 35,988lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs

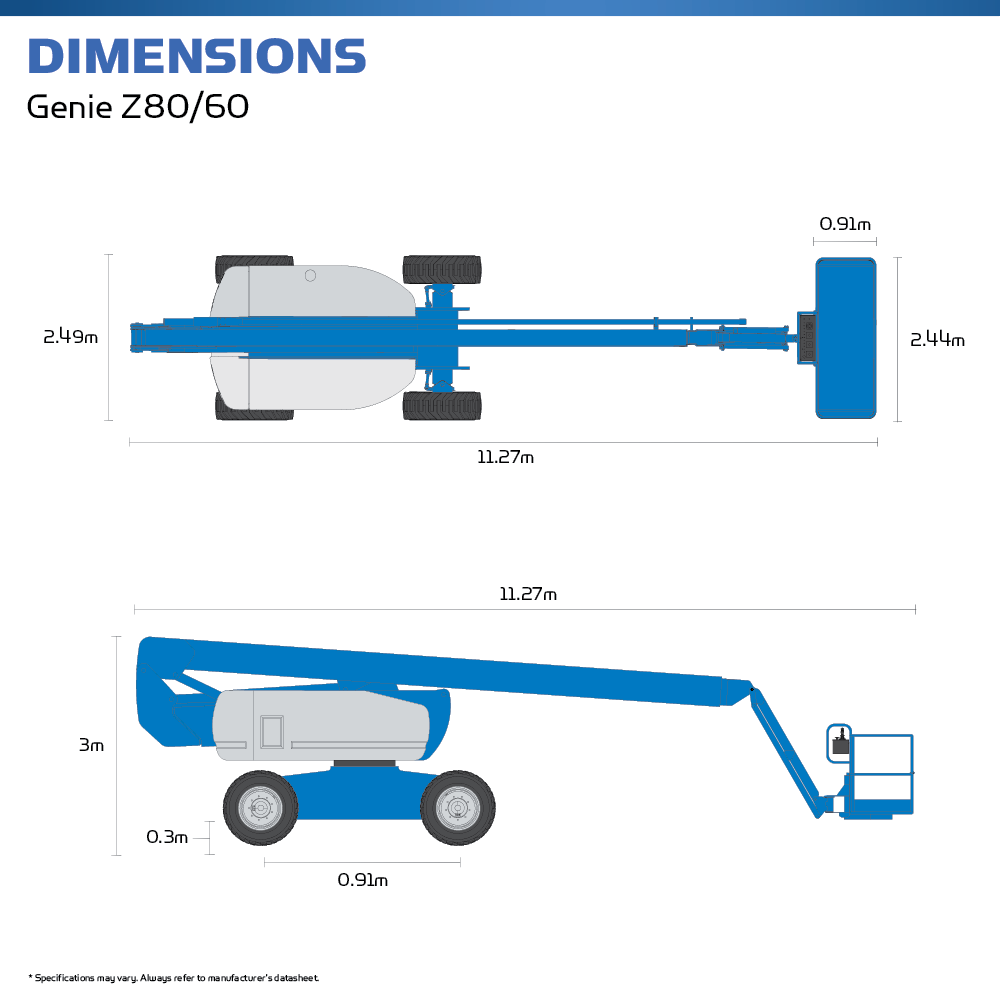

Machine Length
Machine Length
11.27m / 37ft
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
3m / 9ft 11in
Power Options
Power Options
Diesel
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a Genie Z80 60?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

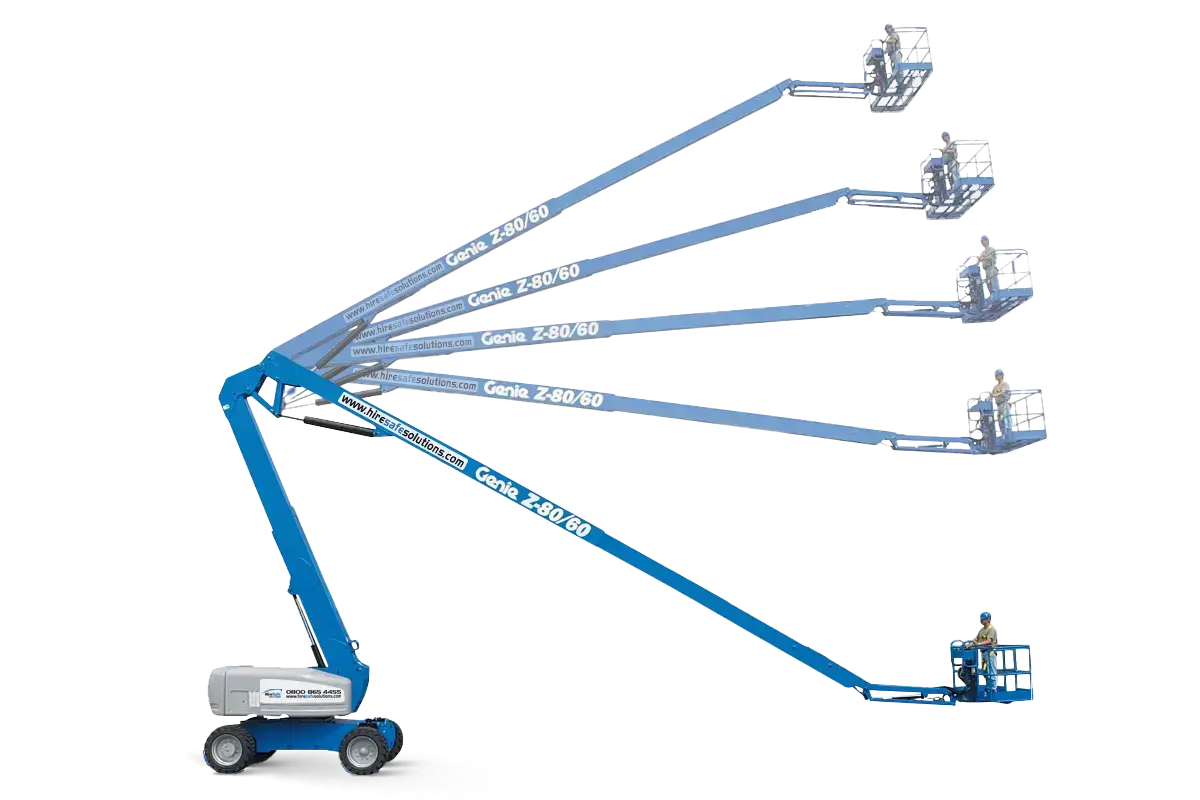

Genie Z80 60 Articulated Boom Lift

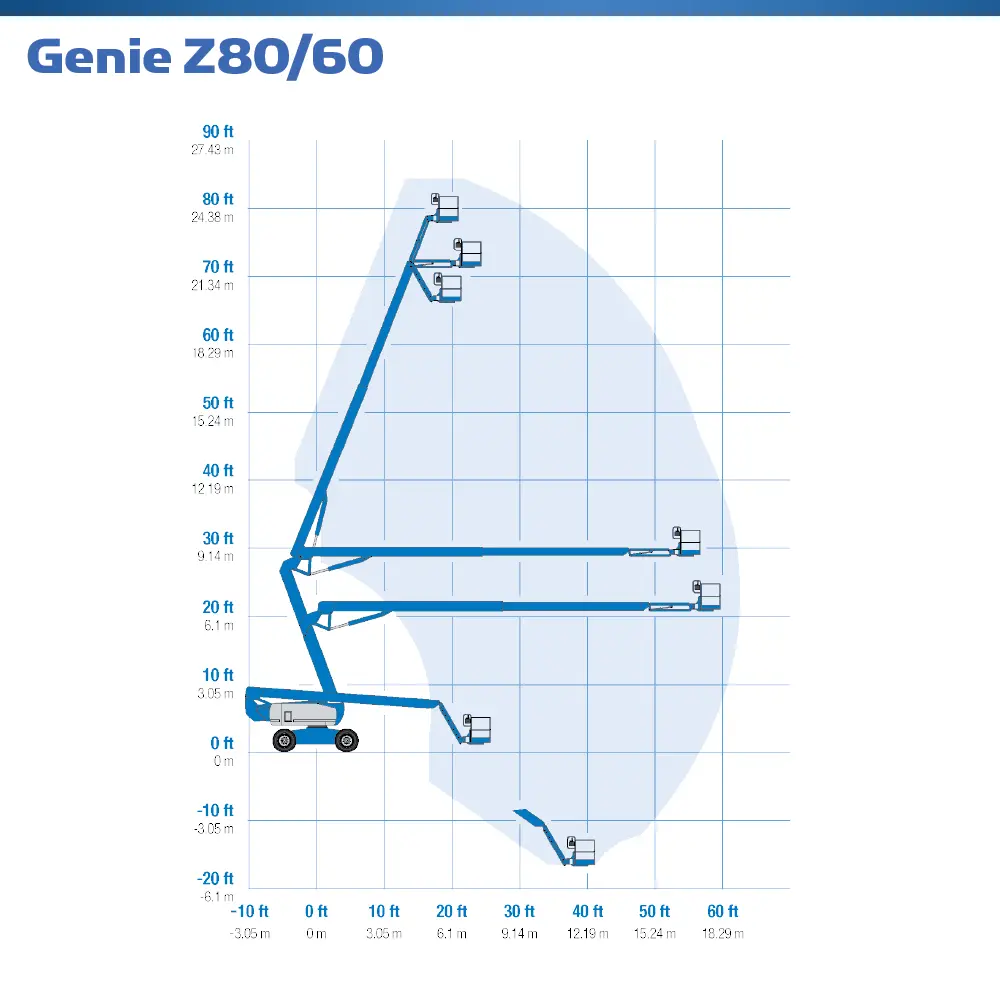

The Genie Z80 60 MEWP has a working height of 25.77m with an amazing outreach of 18.29m. It delivers incredible versatility for operators with its up, out, and over positioning capabilities meaning that you can reach those hard to access places which are common in outdoor, industrial applications.

It is a diesel powered unit primarily used outside due to its power options. Despite its size, the Genie Z80 60's optional four wheel steer offers excellent manoeuvrability, even on tight congested sites. Plus, the full time positive traction means it's highly suited to rough terrain and challenging ground conditions. Furthermore, due to the specification steel erectors, this machine has proven extremely popular with cladders.

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Benefits of the Genie Z80 60:

  • Fantastic working envelope and range of motion for allowing the operator to gain access to work areas over obstacles and barriers
  • Suitable for extreme terrain conditions
  • Fast Mast™ system allows you to lower the platform to the ground without lowering the secondary boom.
  • Quiet diesel engine
  • Reverse articulating secondary boom

Recommended training course for this platform:  IPAF Category: Mobile Boom (3b)

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The Genie Z80 60 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Genie Z80 60 comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres

Interested in hiring a Genie Z80 60?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
