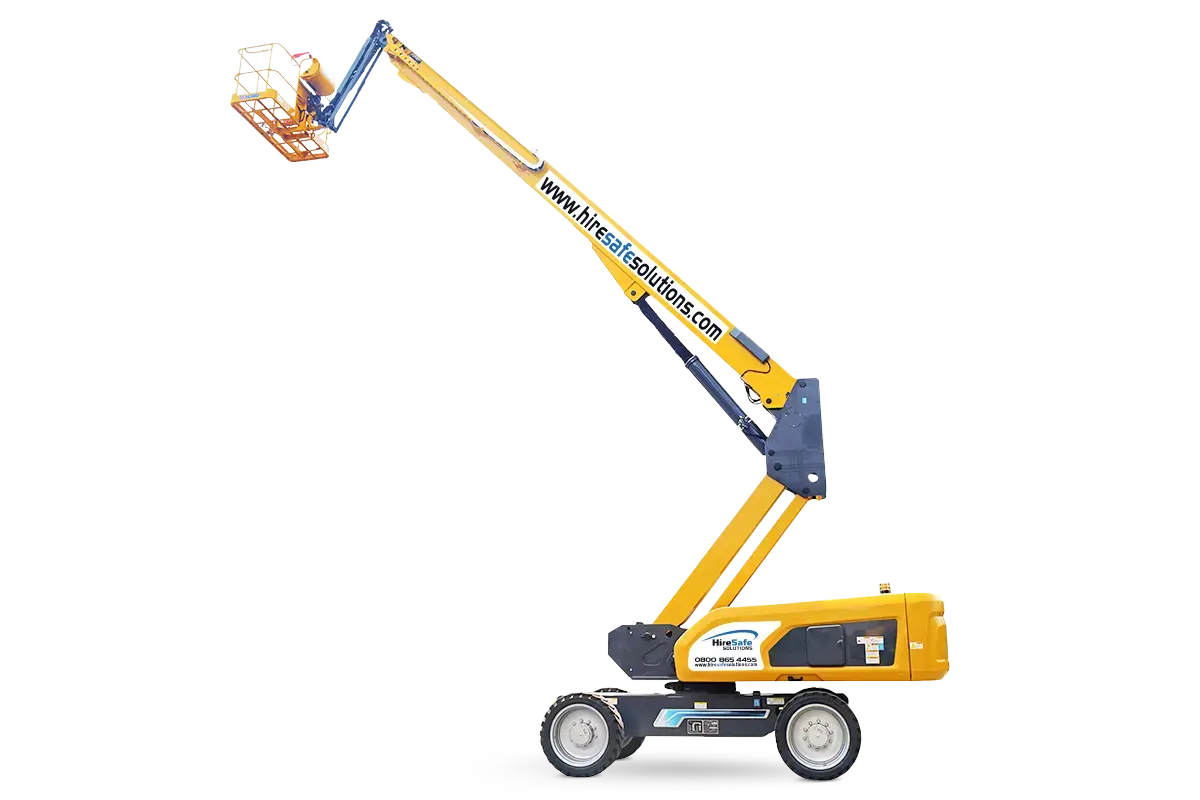

XCMG XGS32K

XCMG XGS32K

XCMG XGS32K

Specification

Make
Make
XCMG
Model
Model
XGS32K
Working Height
Working Height
32.6m / 107ft
Platform Height
Platform Height
30.6m / 100ft 5in
Maximum Outreach
Maximum Outreach
20m / 65ft 8in
Min Weight
Min Weight
18,500.00kg / 40,885lbs
Safe Working Load
Safe Working Load
460.00kg / 1,017lbs
Machine Length
Machine Length
13.1m / 43ft
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.92m / 9ft 7in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.25m / 20ft 7in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a XCMG XGS32K?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

XCMG XGS32K Super MEWP

The XCMG XGS32K Telescopic Boom Lift offers impressive capabilities designed for high-performance lifting tasks. With a working height of 32.6m and a platform height of 30.6m, this lift is ideal for reaching challenging heights safely and efficiently. The working radius of 20 meters provides fantastic outreach and is versatile for both indoor and outdoor tasks.

The boom lift has an engine with a rated power of 48 kW offering excellent performance on various challenging work sites. It offers dual lifting capacities of 300 and 460kg and can carry several occupants with equipment. In addition to this, the XCMG XGS32K also has a boom luffing range from -4 to +73 degrees and a fly jib luffing range from -65 to +70 degrees, providing flexibility when precise positioning at height is needed.

Other notable features of the machine include 360-degree turntable rotation, 160-degree platform rotation, and a drive speed of 5.5 km/h retracted and 0.6 km/h extended. The ground clearance is 0.4m; added to this is a gradeability of 45% to ensure successful operation on irregular ground.

With an operating weight of 18,500kg, the length of the XCMG XGS32K reaches 13.1m, the width is 2.49m, and the height is 2.92m, making it a powerful yet mobile option for various construction and maintenance jobs.

Key Features of the XCMG XGS32K

  • 4m x 0.9m working platform
  • 4 driving wheels
  • 2 steering wheels
  • 4 wheel brake system
  • 45% theoretical gradeability
  • 360° turntable rotation
  • Axle balance system
  • Lift and lower alarm
  • Platform automatic leveling system Proportional handle control
  • Drive alarm
  • Lockable canopy
  • Initiative anti-extrusion system Hydraulic oil cooler
  • Turntable control box
  • Flashing beacon
  • Solid rubber tires
  • Engine protection devices Kubota Euro stage V emission 12V DC emergency power

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The XCMG XGS32K can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Nappies

Nappies
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The XCMG XGS32K comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Extra Capacity

Extra Capacity
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres

Interested in hiring a XCMG XGS32K?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
