Falcon FS320Z

Falcon FS320Z

Falcon FS320Z

Specification

Make
Make
Falcon
Model
Model
FS320 Z
Working Height
Working Height
32m / 105ft
Platform Height
Platform Height
30m / 98ft 6in
Maximum Outreach
Maximum Outreach
16m / 52ft 6in
Min Weight
Min Weight
5,900.00kg / 13,039lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

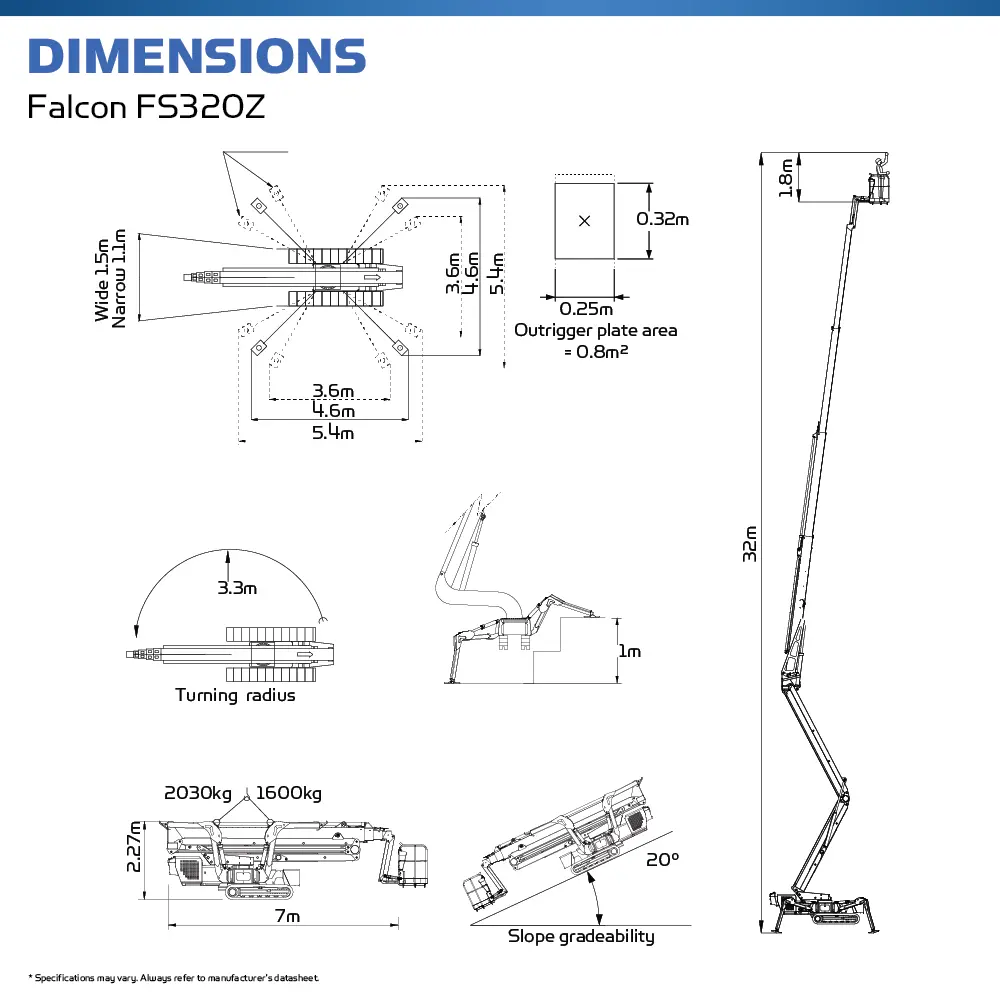

Machine Length
Machine Length
6.95m / 22ft 10in
Machine Width
Machine Width
1.1m / 3ft 8in
Machine Height
Machine Height
2.27m / 7ft 6in
Power Options
Power Options
Battery, Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
37%
Cage Rotation
Cage Rotation
45 degrees

Interested in hiring a Falcon FS320Z?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Falcon FS320Z Spider Lifts

The Falcon FS320Z is the highest articulated Z boom on the market. Its crawler undercarriage offers a variable width from 1.1m to 1.5m, allowing additional stability but a narrow width which is required for gaining entry to buildings. The Falcon FS320Z comes equipped with a two-arm over-centre riser, four section telescopic aluminium boom, and 110° articulating jib to offer operators a superior working envelope. The working height of this machine is also 32m, with a reach of 16m wirh an up and over height of 11m. The Falcon FS320Z is exceptionally easy to operate and has the best outreach of any machine in its class.

Key Features of the Falcon FS320Z

  • Automatic stability & outreach control
  • Computer controlled (can-bus)
  • Proportional control of all functions
  • Self-propelled
  • Battery powered with charger
  • Jib-arm
  • 375° turret rotation, with integrated stop
  • +/- 45° basket rotation
  • Electronic checking of the power system (PLC)
  • Manual pump system for emergency lowering
  • Ability to self-load onto trucks or trailers
  • Crawler system
  • Variable width, hydraulic
  • Minimum width only 1.1m
  • Space for tools etc. in basket
  • Storage room in chassis with lock
  • Diesel engine, Kubota
  • Portable control panel
  • 220V AC power supply in the basket
  • Non marking crawlers

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atrium’s
  • Building and factory maintenance
  • Finished floors
  • Narrow lightweight access
  • Soft ground
  • Steep gradients
  • Tree maintenance

The Falcon FS320Z can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Falcon FS320Z comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Extra Capacity

Extra Capacity
Detachable Platform Controls

Detachable Platform Controls
