Teupen Leo 30T

Teupen Leo 30T

Teupen Leo 30T

Specification

Make
Make
Teupen
Model
Model
Leo30T
Working Height
Working Height
30m / 98ft 6in
Platform Height
Platform Height
28m / 91ft 11in
Maximum Outreach
Maximum Outreach
15.7m / 51ft 7in
Min Weight
Min Weight
4,225.00kg / 9,337lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

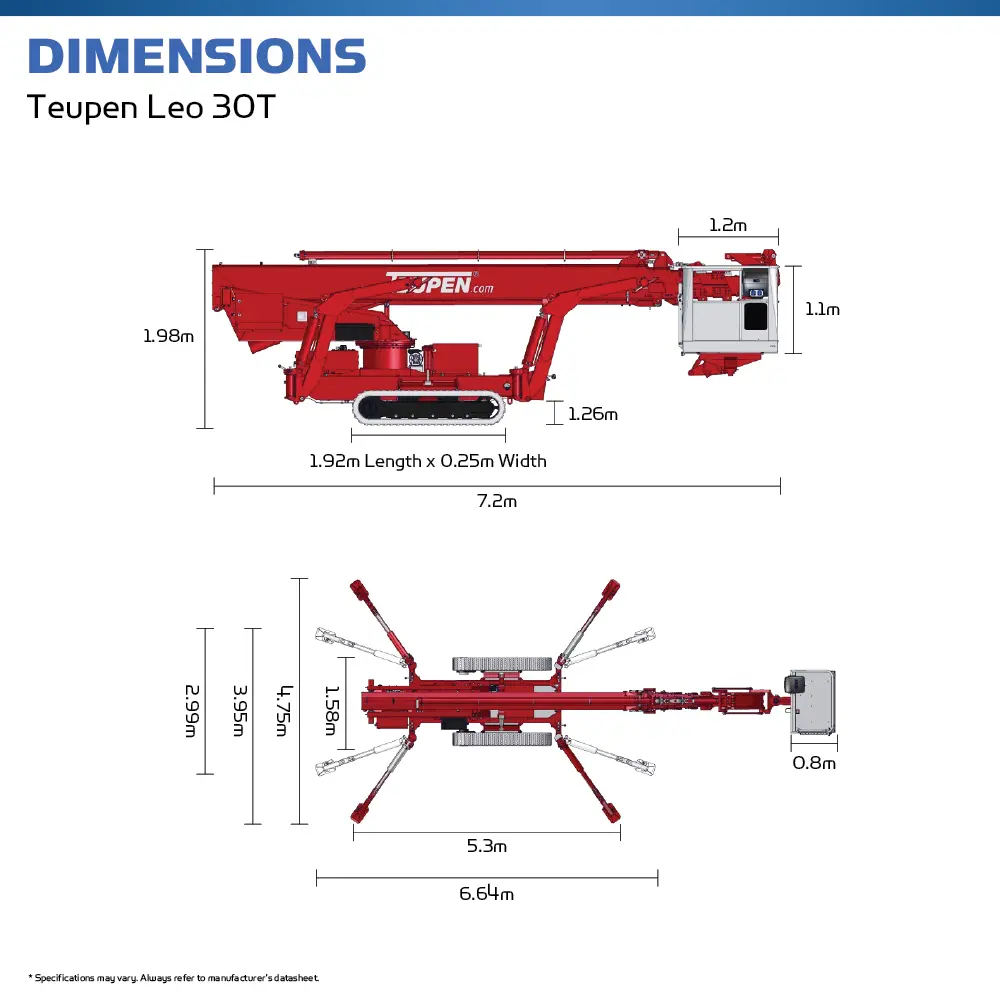

Machine Length
Machine Length
7.2m / 23ft 8in
Machine Width
Machine Width
1.58m / 5ft 3in
Machine Height
Machine Height
1.98m / 6ft 6in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Teupen Leo 30T?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Teupen Leo 30T Spider Lift

The Teupen Leo 30T is suited to supply diverse indoor and outdoor solutions. It can be safely driven on rough and uneven terrain and comes equipped with an outrigger setup and automatic levelling system, which ensures confidence during operation and optimum safety at height.

Its diesel engine allows the unit to work outdoors, over very rough terrain. The electric motor on the other hand, enables a fume-less and quiet operation when working indoors. Non marking tracks are also an option to ensure that floors are not marked. The Teupen Leo 30T has excellent rough terrain capabilities due to the caterpillar type tracks and offers a working height of 30m, with a maximum outreach 15.6m.

Key Features of the Teupen Leo 30T

  • Powerful track drive with hydraulic braking system
  • Precise maneuvering over sensitive electrohydraulic cable remote control
  • Rubber tracks with specially arranged profile providing optimum grip
  • White, non-marking rubber tracks
  • Hydraulically height- and width adjustable track chassis
  • Fully-hydraulic, automatic leveling system with constant outrigger setup monitoring
  • Variable stabiliser/outrigger system with one-side or both-sides narrow setup option
  • Telescoping boom made from robust steel and aluminium profiles on wear-resistant rollers
  • All functions are available from one radio remote control panel
  • Electric-proportional controls with intuitive operator guidance
  • Robust, lockable control panel with integrated operation & display function
  • Self-levelling platform with fully-hydraulic levelling system
  • 180° basket rotation
  • Boom rotation via high-performance slew ring, worm gear and hydraulic motor
  • Basket changing system
  • 180° movable jib, even in load limit range
  • Coming Home Function - automatic return of boom into transport position
  • 230V Electric Motor (EU)
  • Kubota Diesel engine D902, silenced
  • Start-Stop switch of combustion engine in the basket
  • 230V (EU) power outlet in the basket
  • Ergonomically shaped basket with eyelets for safety belts and tool tray
  • Lockable storage box for radio remote control
  • Hydraulic emergency lowering via hand pump
  • Cables and hoses are safely routed through the boom structure
  • Biodegradable hydraulic oil
  • Lock valves - hydraulic return valves directly on all hydraulic cylinders
  • Relief valves protecting the hydraulic system from too high pressures
  • Protective covers for oil-tank, emergency controls and connecting cables and hoses
  • Easily removable covers for optimal accessibility

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atrium’s
  • Building and factory maintenance
  • Rough terrain
  • Narrow lightweight access

The Teupen Leo 30T can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Teupen Leo 30T comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Wireless Platform Controls

Wireless Platform Controls
Extra Capacity

Extra Capacity
