Falcon FS320

Falcon FS320

Falcon FS320

Specification

Make
Make
Falcon
Model
Model
FS320
Working Height
Working Height
32m / 105ft
Platform Height
Platform Height
30.2m / 99ft 1in
Maximum Outreach
Maximum Outreach
14m / 46ft
Min Weight
Min Weight
4,150.00kg / 9,172lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs
Machine Length
Machine Length
7.2m / 23ft 8in
Machine Width
Machine Width
0.8m / 2ft 8in
Machine Height
Machine Height
1.98m / 6ft 6in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
5%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Falcon FS320?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

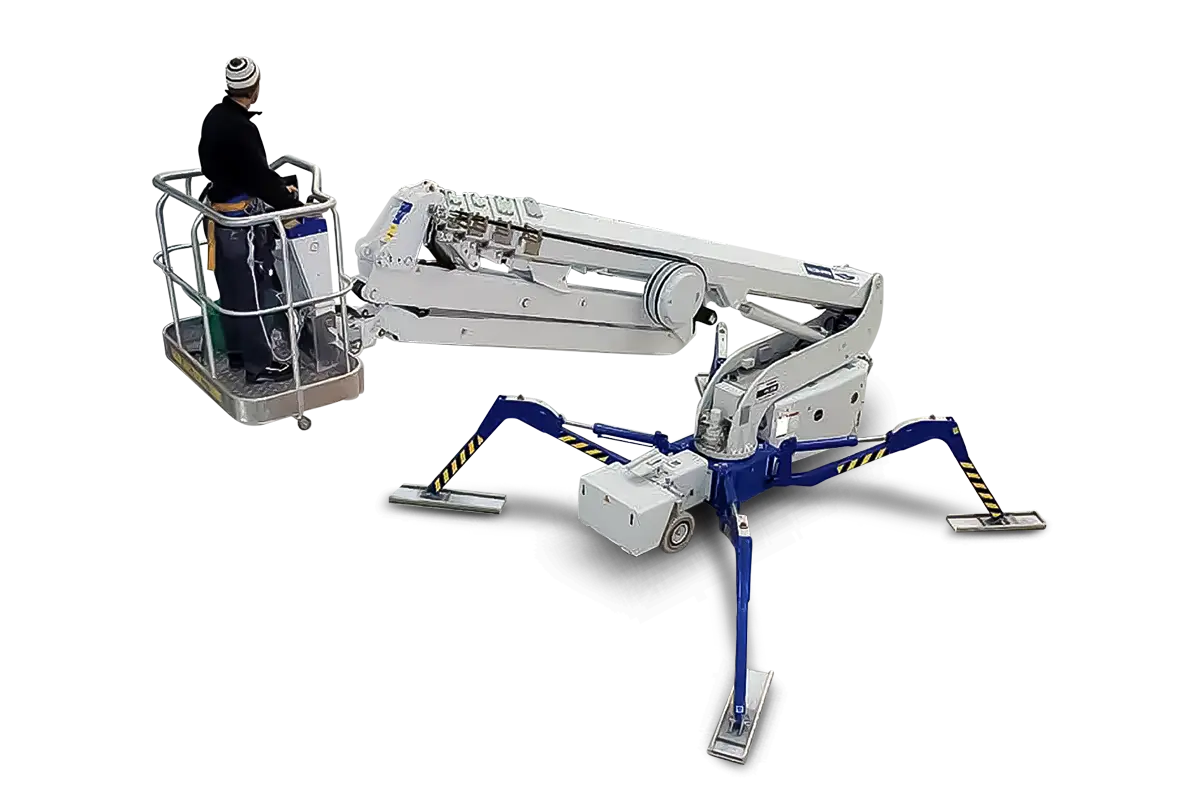

Falcon FS320 Spider Lift

The Falcon FS320 wheeled narrow access platform is designed to carry out the most demanding access tasks that modern buildings require. Similarly to the original atrium lift, the Falcon FS320 fits through a narrow doorway of only 0.8m wide and 19.8m high.

The unique double fly jib facility offers a unique functionality which allows the operator to work in very hard to reach areas, where other types of MEWPs simple could not operate. This machine also has a huge working height of 32m and a maximum outreach of 14m.

Key Features of the Falcon FS320

  • Automatic stability & outreach control
  • Computer controlled (can-bus)
  • Proportional control of all functions
  • Self-propelled
  • Battery powered with charger (180 Ah)
  • Double jib
  • 375 ° turret rotation, with integrated stop
  • Individual setting of each outrigger
  • Electronic checking of the power system (PLC)
  • Manual pump system for emergency lowering
  • Ability to self-load onto trucks or trailers
  • Non marking solid tyres
  • Adjustable wheel-axle
  • Minimum width only 0.8 m
  • Space for tools etc. in basket
  • Storage room with lock in chassis
  • Wireless remote control of all functions
  • Falcon Service Tool (Remote access via laptop)

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • Ultra high internal spaces and atriums
  • Building and factory maintenance
  • Finished floors
  • Narrow lightweight access
  • Facility management
  • Atrium access
  • Narrow access
  • Best quality & safety
  • Double jib system
  • Easy transport & propelling
  • Low weight & ground pressure
  • Need for flexible outrigger
  • Limited setup space
  • Power Bi-energy Hybrid

The Falcon FS320 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Falcon FS320 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered

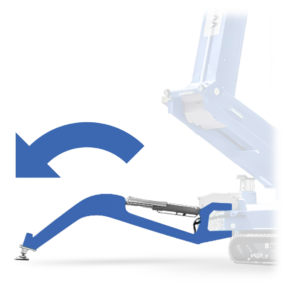

Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Extra Capacity

Extra Capacity

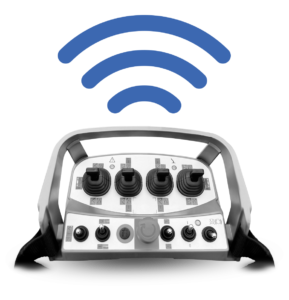

Wireless Platform Controls

Wireless Platform Controls
