Skyjack SJ3219

Skyjack SJ3219

Skyjack SJ3219

Specification

Make
Make
Sky Jack
Model
Model
SJ3219
Working Height
Working Height
7.47m / 24ft 7in
Platform Height
Platform Height
5.64m / 18ft 7in
Min Weight
Min Weight
1,476.00kg / 3,262lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs

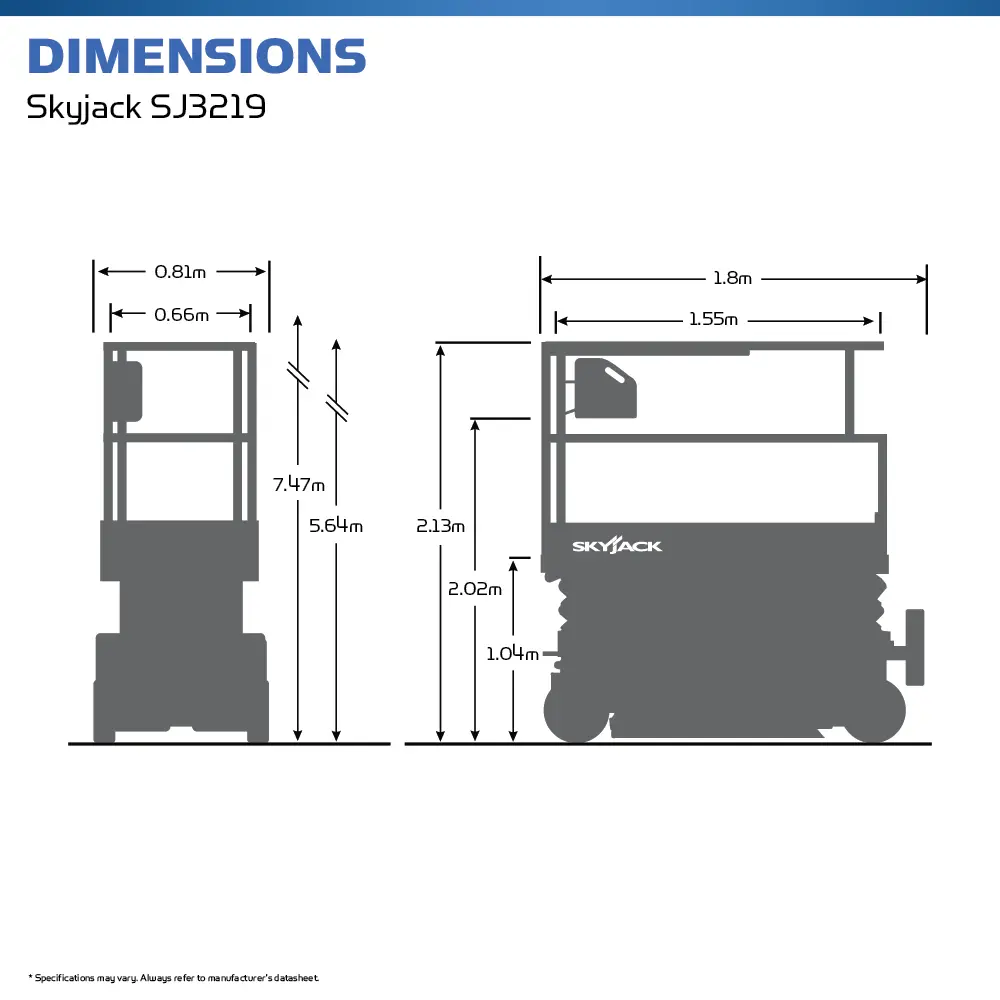

Machine Length
Machine Length
1.8m / 5ft 11in
Machine Width
Machine Width
0.81m / 2ft 8in
Machine Height
Machine Height
2.13m / 7ft
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
25%

Interested in hiring a Skyjack SJ3219?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Skyjack SJ3219 Electric Scissor Lift

The Skyjack SJ3219 is a battery powered Scissor Lift offers an impressive 7.47m working height with up to 25% gradeability, featuring a 0.91m roll out extension deck and durable steel swing-out component trays which provide unrestricted access for easy maintenance and service.

Key Features of the Skyjack SJ3219

  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • 90° Steering (zero inside turning radius)
  • Dual holding brakes
  • SKYCODED™ Color coded and numbered wiring system
  • RAPIDFOLD hinged railing system
  • On-board visual interface with diagnostic capabilities
  • Shroud style, impact resistant composite control box with extended cable
  • Proportional controls for drive & lift functions
  • 0.91m Roll out extension deck
  • 24V DC Power source
  • Low voltage battery protection
  • 25% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC Outlet on platform with GFI
  • 28mph (12.5m/s) Wind rating
  • Tilt alarm with drive & lift cut-out (3.5° x 1.5°)
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down / lift lugs
  • Overload sensing system
  • Half height spring hinged entry gate

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Skyjack SJ3219 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Skyjack SJ3219 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
