Skyjack SJ3226

Skyjack SJ3226

Skyjack SJ3226

Specification

Make
Make
Sky Jack
Model
Model
SJIII 3226
Working Height
Working Height
9.92m / 32ft 7in
Platform Height
Platform Height
7.92m / 26ft
Min Weight
Min Weight
1,890.00kg / 4,177lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs
Machine Length
Machine Length
2.32m / 7ft 8in
Machine Width
Machine Width
0.81m / 2ft 8in
Machine Height
Machine Height
1.91m / 6ft 4in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%

Interested in hiring a Skyjack SJ3226?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

Skyjack SJ3226 Electric Scissor Lift

The Skyjack SJ3226 is part of the narrow and conventional series, the DC electric Scissor Lift from Skyjack. It offers high capacity and a large platform area making which makes it suitable for any on-slab application. This machine features a variable speed, rear wheel hydraulic drive and offers a working height of 9.9m with 30% gradeability. The Skyjack SJ3226 is the lightest machine in its class at 1890 kg and is ideal for internal projects such as operations in warehouses and factories.

Key Features of the Skyjack SJ3226

  • Drivable at full height
  • Variable speed, rear two wheel hydraulic drive
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 0.91m roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • Analogue control system
  • Colour coded and numbered wiring system
  • 30% gradeability
  • Solid rubber, non-marking tyres
  • Pothole protection system
  • Wiring for AC outlet on platform
  • Tilt alarm with drive & lift cut-out
  • Overload sensing system
  • Lowering warning system
  • Operator horn
  • Hinged railing system
  • Half height spring hinged gate
  • Lanyard attachment points
  • Forklift pockets and tie down/lift lugs

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Skyjack SJ3226 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards

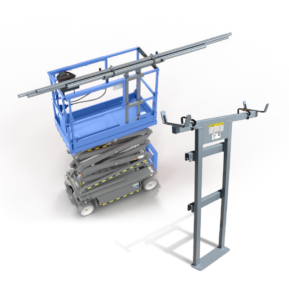

Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Skyjack SJ3226 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension
