Genie GS1532

Genie GS1532

Genie GS1532

Specification

Make
Make
Genie
Model
Model
GS 1532

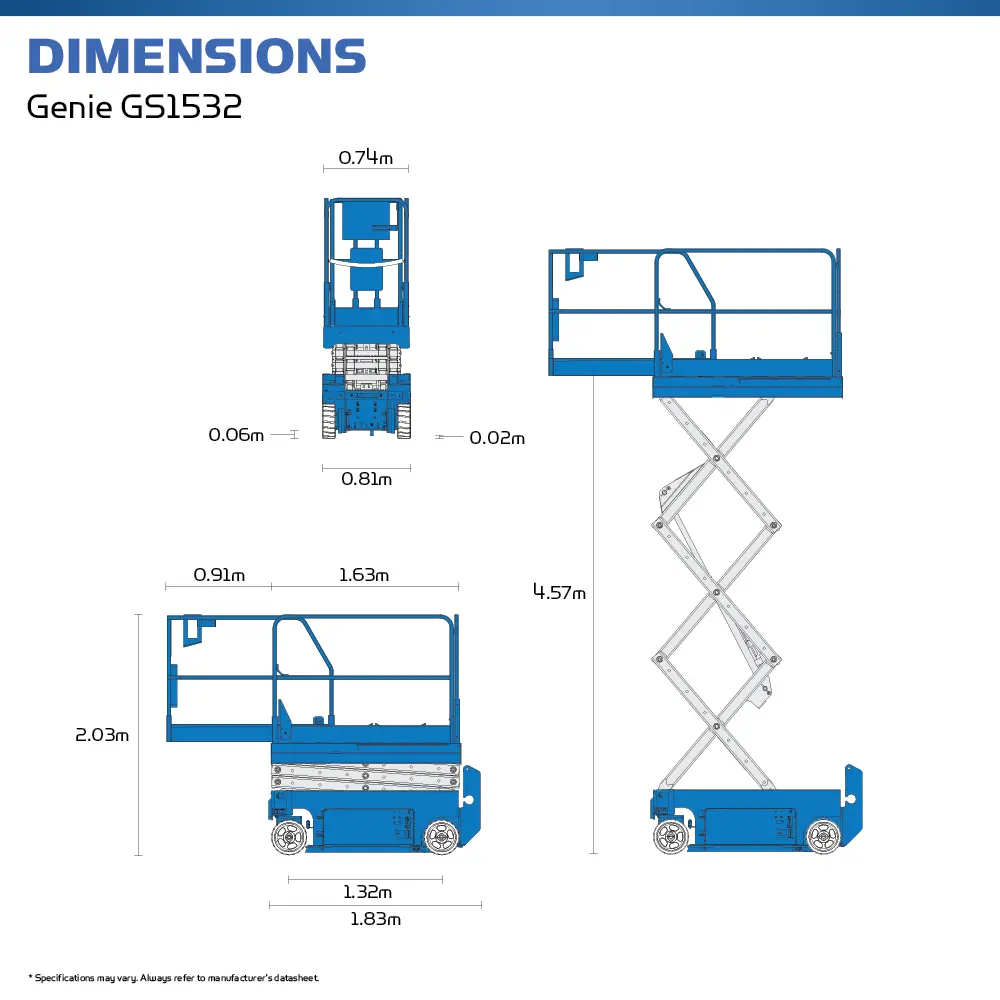

Working Height
Working Height
6.57m / 21ft 7in
Platform Height
Platform Height
4.57m / 15ft
Min Weight
Min Weight
1,269.00kg / 2,804lbs
Safe Working Load
Safe Working Load
272.00kg / 601lbs
Machine Length
Machine Length
1.83m / 6ft 1in
Machine Width
Machine Width
0.81m / 2ft 8in
Machine Height
Machine Height
1.73m / 5ft 9in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%

Interested in hiring a Genie GS1532?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

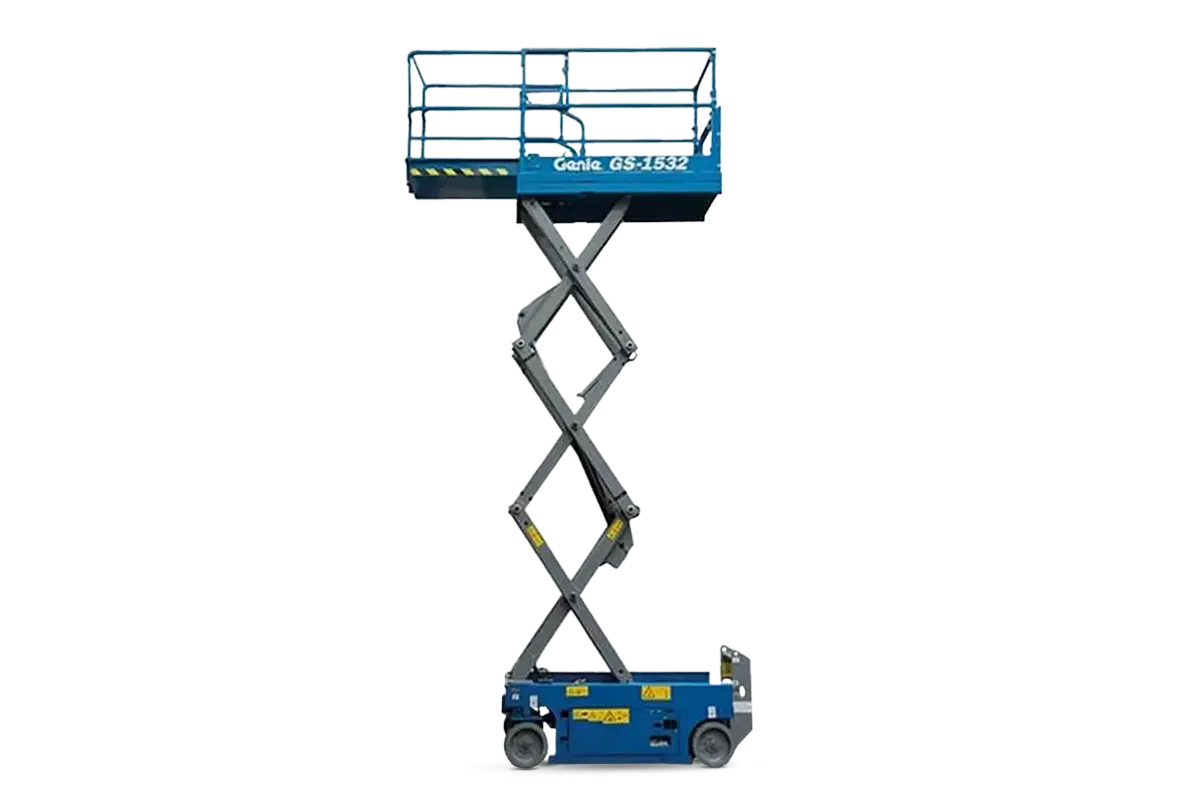

Genie GS1532 Electric Scissor Lift

The Genie GS1532 has a working height of 6.57m and is a very nippy, compact unit which makes it ideal for the confines of a production line. It is also fully certified for outdoor use, especially in windy conditions of up to 12.5m per second This machine is ideal for warehouses, factories, mechanical, electrical and internal fit out projects.

Key Features of the Genie GS1532

  • 1.63m x 0.74m  steel platform
  • Folding rails with half-height swing gate
  • 0.91m extension deck
  • Dual front wheel drive
  • Proportional lift and drive
  • 30% gradeability
  • Platform control with battery charge indicator and diagnostic display
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Rear wheel multiple disc brakes
  • Front wheel hydraulic dynamic braking
  • Manual brake release
  • Solid non-marking tyres
  • Pothole guards
  • Tilt alarm
  • Descent alarm
  • Electronic horn
  • Dual flashing beacons
  • Motion alarm
  • 24V DC (four 6 V 225 Ah batteries)
  • Universal 20 amp smart charger

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Genie GS1532 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Genie GS1532 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
