Dingli 1208AC

Dingli 1208AC

Dingli 1208AC

Specification

Make
Make
Dingli
Model
Model
1208AC
Working Height
Working Height
12m / 39ft 5in
Platform Height
Platform Height
10m / 32ft 10in
Min Weight
Min Weight
3,150.00kg / 6,962lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs

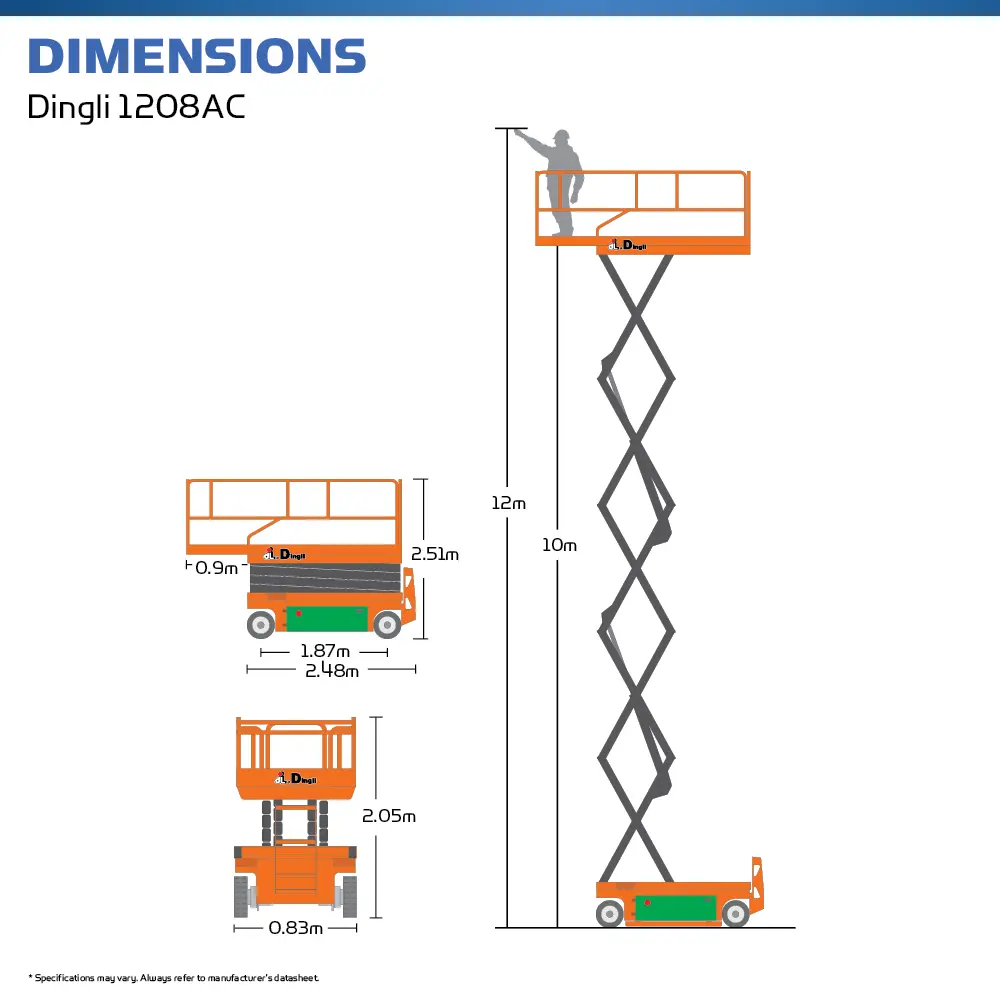

Machine Length
Machine Length
2.48m / 8ft 2in
Machine Width
Machine Width
0.83m / 2ft 9in
Machine Height
Machine Height
2.51m / 8ft 3in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
2.1m / 6ft 11in
Gradeability
Gradeability
25%

Interested in hiring a Dingli 1208AC?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

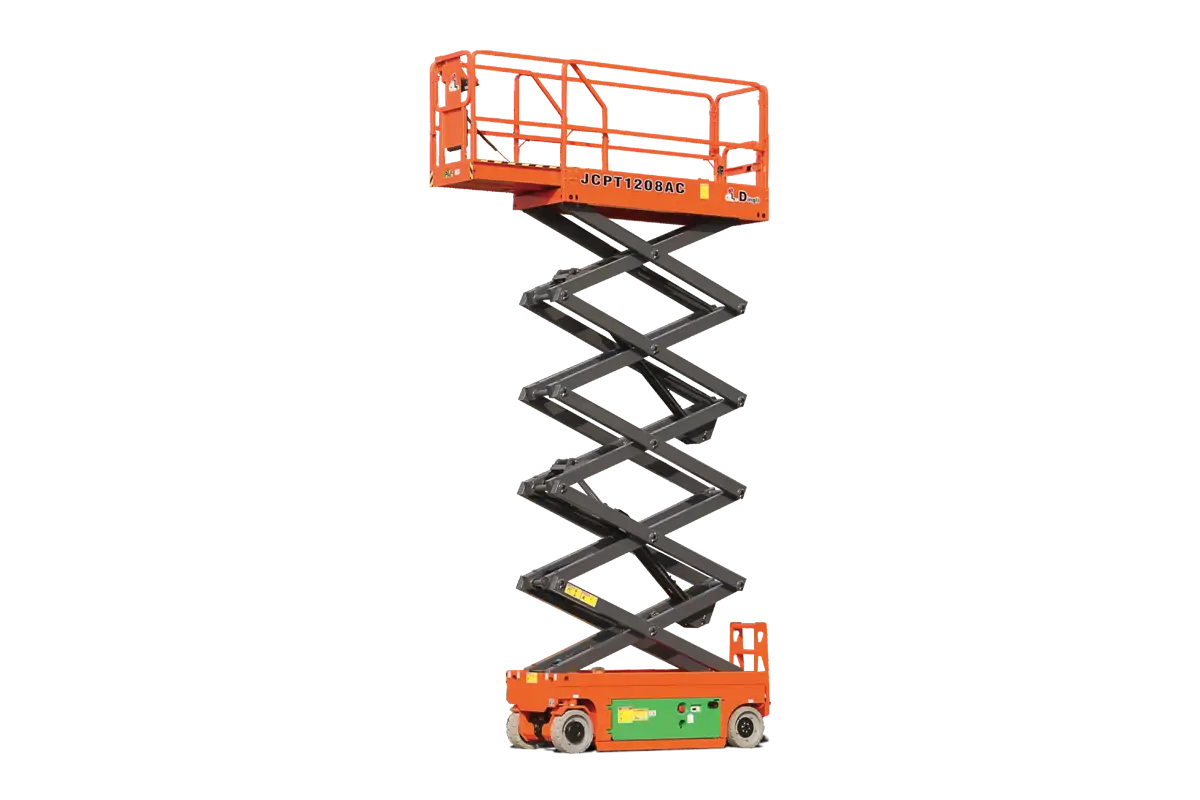

Dingli 1208AC Electric Scissor Lift

Elevate your operations with the Dingli 1208AC, a compact and highly efficient scissor lift designed for both indoor and outdoor tasks. Reaching a maximum working height of 12m indoors and 9.2m outdoors, this model combines high performance with portability. With a 250kg load capacity and the ability to drive at full height, it ensures optimal productivity on site. Its slim profile, only 0.83m wide and 2.05m high with folded guardrails, offers excellent maneuverability and easy access through standard doorways and very tight spaces.

Powered by a robust 24V 240Ah battery, the Dingli 1208AC delivers long-lasting endurance for extended work hours. Built with a fully enclosed AC system and dual AC motors for both lifting and driving, it boasts waterproof protection, enhanced safety, high work efficiency, and virtually maintenance-free performance.

Key Features of the Dingli 1208AC

  • Proportional Joystick Controls
  • Self-Locking Gates
  • One-Way Platform Extension Deck
  • Drivable At Full Height
  • Non-Marking Tyres
  • Two-Wheel Drive
  • Two-Wheel Steering
  • Automatic Braking System
  • Emergency Descent System
  • Onboard Fault Diagnostic System
  • Tilt Alarm
  • Motion Alarm
  • Foldable Guard Rails
  • Automatic Pothole Protection
  • Drive Enable
  • Manual Brake Release
  • Lanyard Attachment Point
  • Platform Load Sense System
  • Emergency Stop Button

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Internal Fit-outs
  • General building maintenance
  • Facilities Maintenance

The Dingli 1208AC can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Small Scissor Pipe Racks

Small Scissor Pipe Racks

The Dingli 1208AC comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
