JCB S2632 E

JCB S2632 E

JCB S2632 E

Specification

Make
Make
JCB
Model
Model
S2632E
Working Height
Working Height
10.1m / 33ft 2in
Platform Height
Platform Height
8.1m / 26ft 7in
Min Weight
Min Weight
1,972.00kg / 4,358lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs
Machine Length
Machine Length
2.39m / 7ft 11in
Machine Width
Machine Width
0.81m / 2ft 8in
Machine Height
Machine Height
1.96m / 6ft 6in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
25%

Interested in hiring a JCB S2632 E?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

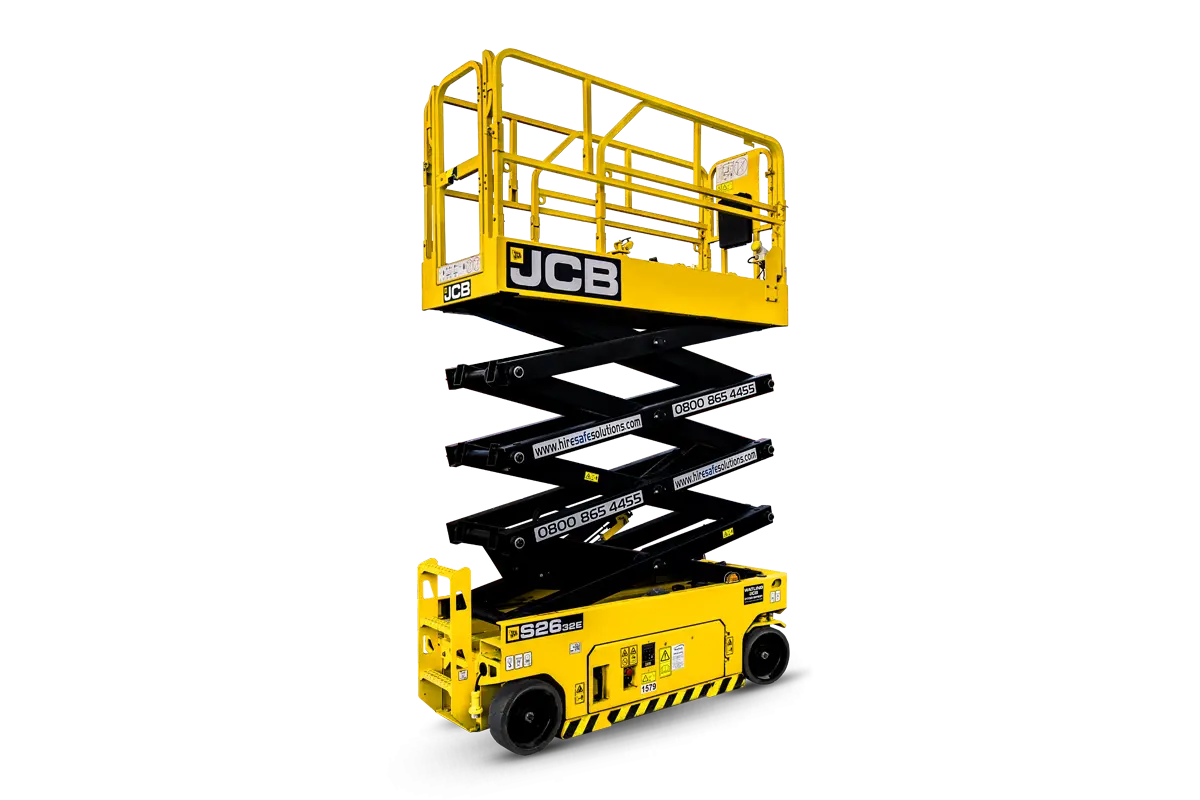

JCB S2632 E Electric Scissor Lift

The JCB S2632 E, as with all of the JCB electric Scissor Lift range, has easily collapsible guardrails further increasing machine versatility. The control cradle design also enables the basket to be used on all sides, offering easy operation from both in the basket and on the ground. The machine is equipped with a waterproof cover on the power to platform outlet to protect the socket, ensuring it is ready to use at all times. There are also easy to use spring clips which allows the platform rails to fold down which makes manoeuvring in confined spaces particularly easy. It also comes with an easy to view charge level indicator to keep you informed of battery status. Other features of this machine include the full pivot boss design on the scissor pack, weld designs as well motor protection plates.

Unique to JCB, the battery and hydraulic door wear pads ensure the weight is supported whilst closed, preventing the doors dropping over time. The JCB S2632 E is equipped with automotive style foot pedals to release the extension deck which provides an intuitive and ergonomic operation.  There are ergonomically designed door handles which make for easier and safer entry, even with gloved hands. The large handle on the battery isolator means it can be operated whilst wearing gloves and there is a suite of safety systems which come with this unit, including pot hole protection, speed limiting at height and a load sensing system to ensure you are kept safe while operating.

Key Features of the JCB S2632 E

  • Control cradle design allows for use on all sides of the basket and enables easy operation from both in the basket and on the ground
  • Waterproof cover on the power to platform outlet protects the socket, ensuring it is ready to use
  • Easy to use spring clips allow the platform rails to fold down for manoeuvring in confined spaces
  • Easy to view charge level indicator keeps you informed of battery status
  • Industry standard components allows seamless integration into existing rental fleets
  • Features such as the full pivot boss design on scissor pack, weld designs and motor protection plates are all designed using JCB's 75 years of engineering and manufacturing experience
  • Unique to JCB, the battery and hydraulic door wear pads ensure the weight is supported whilst closed, preventing the doors dropping over time
  • Automotive style foot pedal to release the extension deck provides an intuitive and ergonomic operation.
  • Platform outlet in the basket makes connecting power tools easy
  • Ergonomically designed door handle makes for easier and safer entry, even with gloved hands
  • Ergonomic controller cradle for both left and right use and an automotive style foot pedal for deck extension
  • Large handle on the battery isolator means it can be operated whilst wearing gloves

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The JCB S2632 E can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The JCB S2632 E comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
