Dingli BA22ERT

Dingli BA22ERT

Dingli BA22ERT

Specification

Make
Make
Dingli
Model
Model
BA22ERT
Working Height
Working Height
22.21m / 72ft 11in
Platform Height
Platform Height
20.21m / 66ft 4in

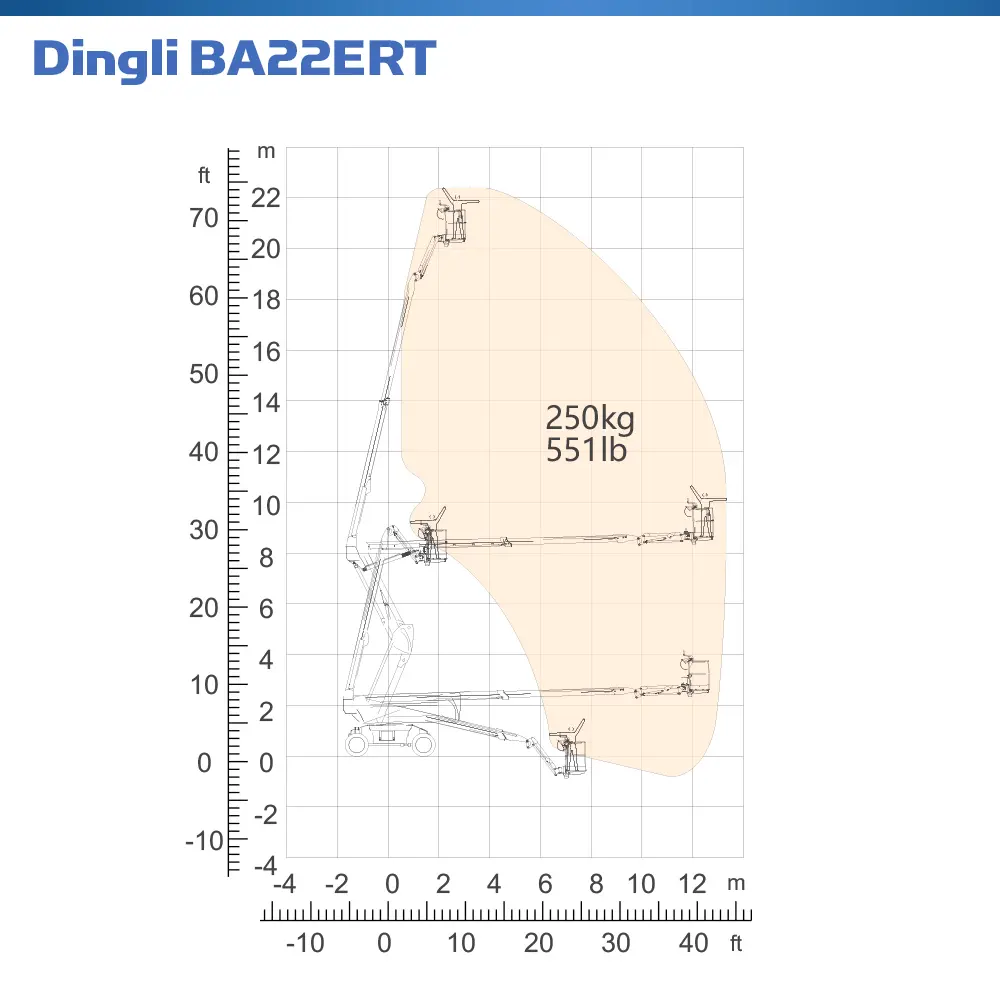

Maximum Outreach
Maximum Outreach
12.72m / 41ft 9in
Min Weight
Min Weight
10,100.00kg / 22,321lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

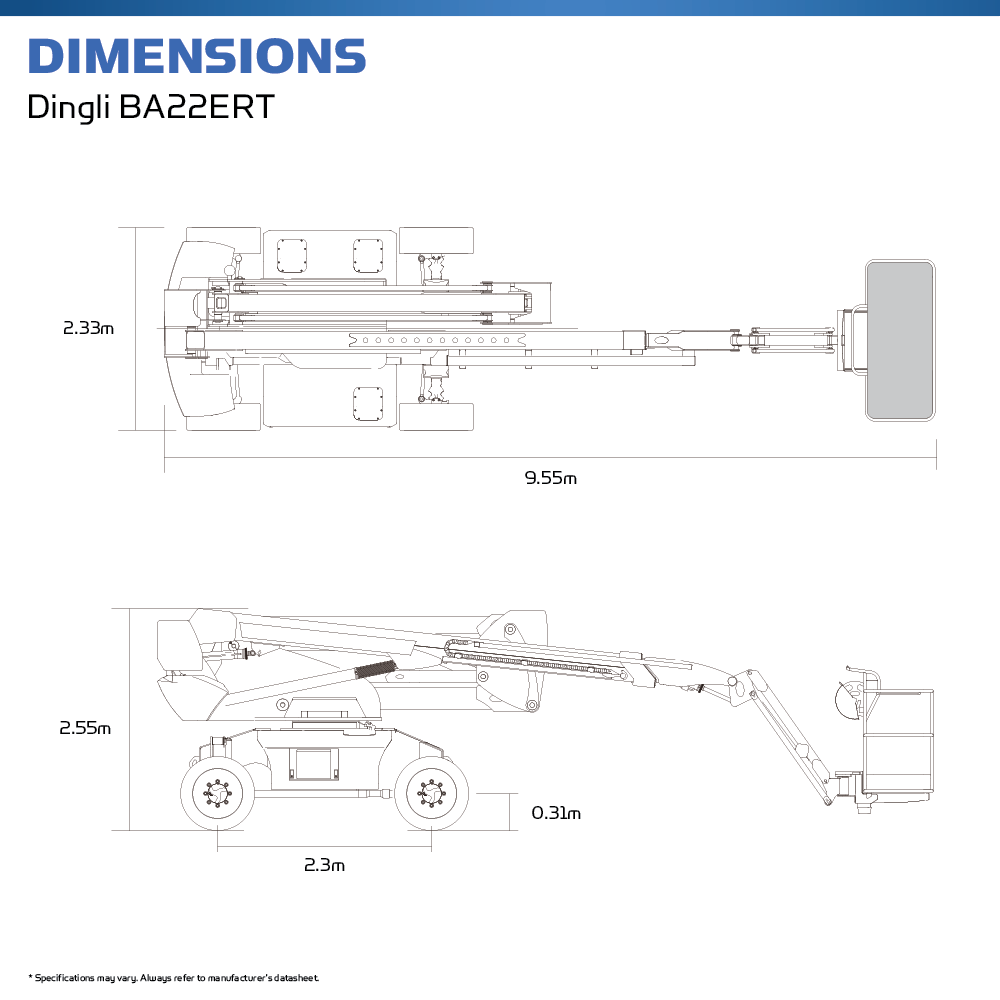

Machine Length
Machine Length
9.55m / 31ft 4in
Machine Width
Machine Width
2.29m / 7ft 7in
Machine Height
Machine Height
2.49m / 8ft 3in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
1.56m / 5ft 2in
Gradeability
Gradeability
30%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Dingli BA22ERT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Dingli BA22ERT Cherry Picker

The Dingli BA22ERT is a new machine to Hire Safe Solution's electric fleet. This articulated Boom Lift/Cherry Picker offers a working height of 22.21m (72 ft 10 in) as well as a horizontal outreach of 12.72m (41 ft 9 in) and a SWL of 230kg. This machine is perfect for indoor use, where flooring is to be kept immaculate during any maintenance and will for sure improve your site's economical impact.

Benefits of the BA22ERT:

  • Strong off-road performance
  • 360° continuous turntable rotation
  • No noise and zero emissions due to the pure electric drive
  • Foam-filled non-marking tyres to keep flooring immaculate
  • An energy-saving hydraulic system, providing incredible economical benefits
  • Consistent pressure is maintained with it's pressure compensation gravity drop valve, including automatic speed regulation

Looking to hire a Super MEWP? Please get in contact with us today and speak to one of our experts.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation, and repair tasks.
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing, and facility inspections.
  • Event Management: Well-suited for event setup and maintenance tasks, including lighting, signage, and rigging installations.
  • Utility Work: Versatile enough to handle utility maintenance, tree trimming, and outdoor landscaping projects with ease.

The Dingli BA22ERT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Dingli BA22ERT comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Rough Terrain Tyres

Non-Marking Rough Terrain Tyres
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform

Interested in hiring a Dingli BA22ERT?
