LGMG T22J

Specification

Make

LGMG

Model

T22J

Working Height

23.8m / 78ft 2in

Platform Height

21.8m / 71ft 7in

Maximum Outreach

17.5m / 57ft 5in

Min Weight

12,300.00kg / 27,183lbs

Safe Working Load

450.00kg / 995lbs

Machine Length

10.6m / 34ft 10in

Machine Width

2.49m / 8ft 3in

Machine Height

2.79m / 9ft 2in

Power Options

Diesel

Turning Radius

2.5m / 8ft 3in

Gradeability

45%

Interested in hiring a LGMG T22J?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

LGMG T22J Cherry Picker

The LGMG T22J 23.8m Diesel Telescopic Boom Lift is brand new to our fleet and has been specifically designed with incredible features that improve efficiency on site when it comes to material handling. Not only is the unrestricted 300kg working load a benefit to the operator, but this machine is also equipped with a large platform, three door design, four wheel drive, continuous 360 degree turntable rotation for an expanded operational area and more.

Key Features of the LGMG T22J

Proportional control
Overload sensing system
Descent alarm with flashing beacon
Platform auto-levelling system
Emergency stop button
On-board diagnostic system
Oscillating axle
4W drive and 4W braking
Over tilt protection system
Anti-entrapment protection
Platform control unit cover
Platform tool box

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

The LGMG T22J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks
To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Chalwyn Valves
Typically used in Petrochemical plants and areas where petrol and other flammable materials are present, Chalwyn valves provide emergency overspeed shutdown protection for diesel engines and are the most effective way of preventing runaway situations. They work by blocking the engine's air intake system, cutting off an uncontrolled external fuel source and the air required to keep the engine running.

When operating diesel engines in Petrochemical plants and other hazardous environments such as petrol station forecourts, a sudden release of flammable gas or hydrocarbon vapour can happen at any time and be instantly drawn into the engine's air intake. This external fuel source would prevent the machine from shutting off, meaning the engine would continue to accelerate rapidly. Chalwyn Valves are the most effective way of preventing these runaway situations, providing emergency overspeed shutdown protection by blocking the engine's air intake system, cutting off the uncontrolled external fuel source and the air required to keep the engine running.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Ground Guards
Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Harness
Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@dev.hiresafesolutions.com
Nappies
Benefit from added peace of mind when working on sensitive flooring by adding a machine nappy onto your hire. Made from a durable PVC, they are available for most of our fleet and help to minimise risk of hydraulic spillages in the event of a leak.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Spark Arrestors
Spark Arrestors can be fitted to the exhaust system of most diesel engines and prevent the emission of sparks when working in potentially flammable or explosive environments.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Wheel Covers
Wheel covers can be used both indoors and outdoors and are the perfect solution for avoiding black tyre marks when working on finished surfaces. Supplied as a set of 4, our wheel covers are a great alternative when non-marking tyres are not an option.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The LGMG T22J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered
Benefit from uninterrupted work cycles thanks to a powerful yet efficient diesel engine, capable of tackling challenging terrains with ease.
Extra Capacity

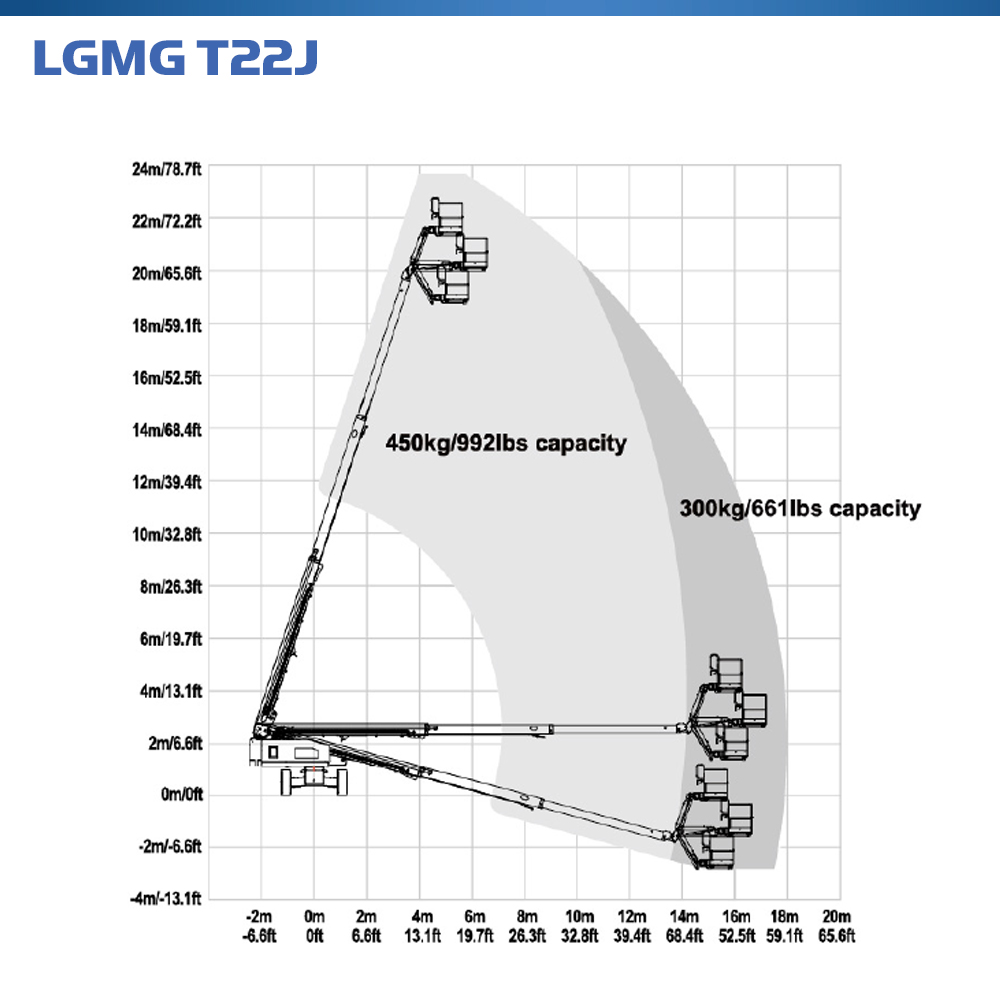

Featuring multiple load capacities with automatic envelope control, this machine offers an increased SWL by automatically adjusting its working envelope.
360° Continuous Rotation
A powerful rotating component allows for 360° of continuous rotation/slew.
Large Basket
Boost productivity with an increased platform size and multiple entry points, allowing multiple operators to work comfortably, and reducing the need to reposition the platform as often.
Oscillating Axles
Axles that are designed to pivot in the middle to compensate for uneven terrain and keep all tyres on the ground, ensuring exceptional terrainability.
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Rough Terrain Tyres
This tyres fitted on this machine feature an aggressive tread design for improved handling and rough-terrain capability. This style of tyre is best for unfinished sites and muddy, uneven ground conditions such as construction sites.
