Wumag WT1000

Wumag WT1000

Wumag WT1000

Specification

Make
Make
Wumag
Model
Model
WT 1000
Working Height
Working Height
103.5m / 339ft 7in
Platform Height
Platform Height
100.5m / 329ft 9in
Maximum Outreach
Maximum Outreach
36m / 118ft 2in
Min Weight
Min Weight
60,000.00kg / 132,600lbs
Safe Working Load
Safe Working Load
600.00kg / 1,326lbs
Machine Length
Machine Length
16.2m / 53ft 2in
Machine Width
Machine Width
2.75m / 9ft 1in
Machine Height
Machine Height
4m / 13ft 2in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
N/A
Cage Rotation
Cage Rotation
115 degrees

Interested in hiring a Wumag WT1000?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Wumag WT1000 Vehicle Mounted Platforms

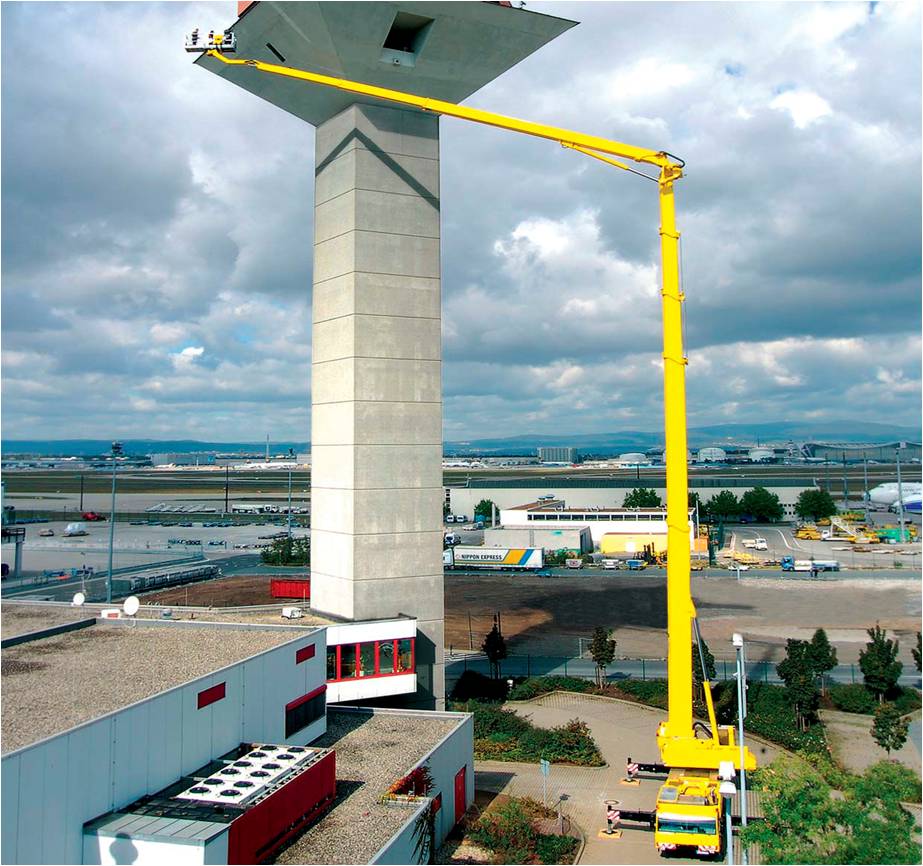

The Wumag WT1000 is one of the largest access platforms in the world. It was developed for assembly and maintenance work on wind turbines and now performs in a huge range of contracts across the construction, petrochemical & pharmaceutical sectors.

This impressive 100m MEWP is mounted on an 5 axle, all terrain mobile crane chassis and its heavy duty workman basket can also carry nominal loads of up to 600kg. The Wumag WT1000 also has four different jacking configurations which allow the machine to be operated in difficult and tight areas. With a 103.5m reach, this unit is the first choice of contractors working between 90 and 103.5m. Depending on use, different kinds of cages can be mounted, equipped with relocatable graphic-display control panel. The hydraulically telescoping cage offers an enormously large floor space without nominal load reduction on the mobile part.

The main range of application is the assembly and maintenance of wind energy plants, whose continuously rising overall heights created the need for a proportionally dimensioned elevating platform. A special advantage for saving setup space is the optional half or full extension of the outriggers, enabling different stabiliser configurations. Also space-saving is the ability of the Wumag WT1000 to swivel before raising the boom system into working position, thus the rear of the work platform can be driven directly next to objects.

Key Features of the Wumag WT1000

  • Assembly onto all-wheel crane chassis
  • Extensive anti-corrosive package
  • Telescopic aluminium cage
  • Cage centering (transport position indication)
  • Five anchor points for safety harnesses in the cage
  • Relocatable control panel with protective cover and illumination of display and push-buttons
  • Reversible slewing direction after panel relocation
  • Fully-fledged secondary/emergency control at the base
  • All movement functions have end stop damping
  • Automatic self-retracting into basic position (“Home function”)
  • Cage capacity monitoring with display indication
  • Cage contact safeguard via ultrasonic sensors
  • Motor-start-stop from all control panels
  • Emergency lowering system in the cage
  • Battery voltage monitoring in the cage
  • WUMAGnostic system for data query by PC
  • Electric power line 230V/10A with RCD
  • Earthing device from cage to base
  • CE-mark, declaration of conformity, test certification

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Vehicle Mounted Platforms here.

  • Wind turbines inspections, maintenance & repair
  • High level maintenance
  • Construction
  • Petrochemical & pharmaceutical sectors

The Wumag WT1000 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Outrigger Pads

Outrigger Pads

The Wumag WT1000 comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
