Ruthmann T900 HF

Ruthmann T900 HF

Ruthmann T900 HF

Specification

Make
Make
Ruthmann
Model
Model
T900 HF
Working Height
Working Height
90m / 295ft 4in
Platform Height
Platform Height
88m / 288ft 9in
Maximum Outreach
Maximum Outreach
42m / 137ft 10in
Min Weight
Min Weight
48,000.00kg / 106,080lbs
Safe Working Load
Safe Working Load
600.00kg / 1,326lbs
Machine Length
Machine Length
14.99m / 49ft 3in
Machine Height
Machine Height
4m / 13ft 2in
Power Options
Power Options
Diesel
Cage Rotation
Cage Rotation
440 degrees

Interested in hiring a Ruthmann T900 HF?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

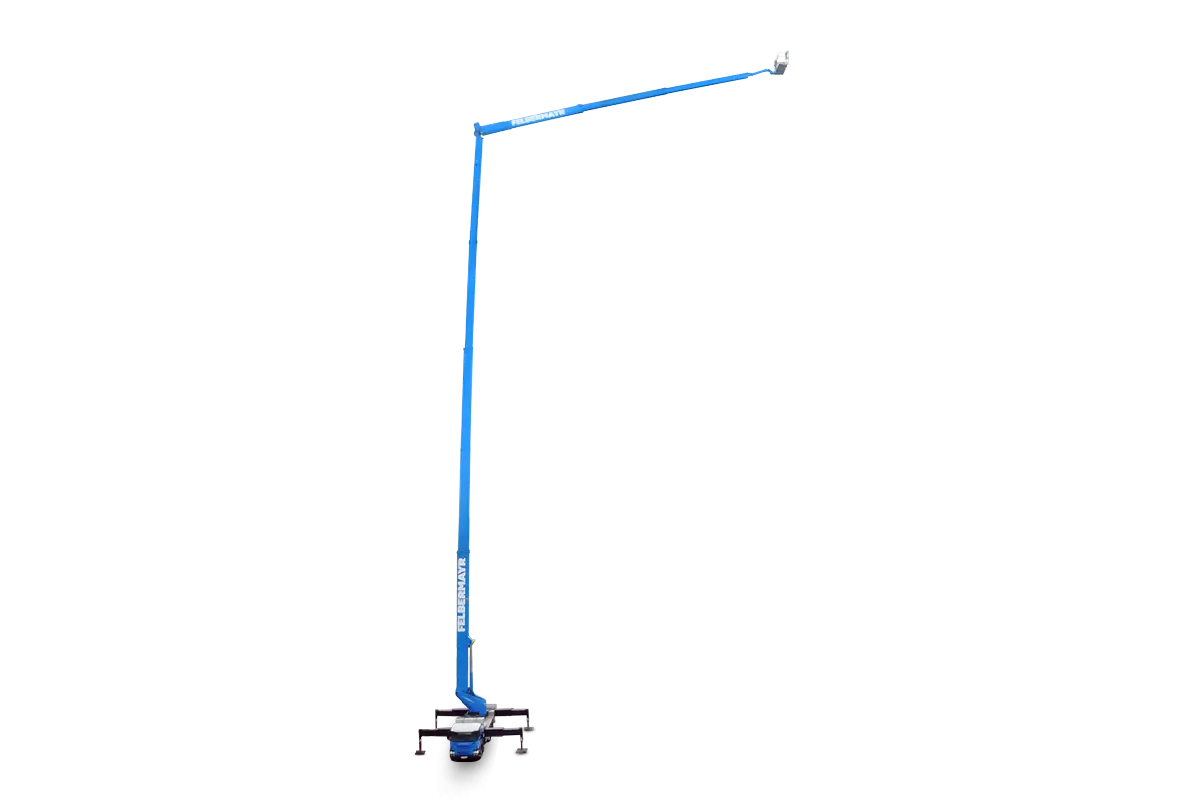

Ruthmann T900 HF Vehicle Mounted Platform

The Ruthmann STEIGER® T900 HF is the most flexible 90m large-scale truck mounted platform in the world, with an impressive 90m working height and 42m lateral outreach featuring Ruthmann's DRS (Dynamic Reach System) and revolutionary Dual Concept for an enhanced range of application possibilities.

This truck mounted platform can lift up to 600kg and features a spacious basket measuring 2.42 x 0.97m which can be extended to 3.82m, making it suitable for multiple occupants with materials/tools. The machine's outrigger pads are mounted onto support cylinders and can be positioned quickly and simply offering 25% of variable stabilisation. The Ruthmann T900 HF comes equipped with a highflex-function offering full 'up, over and back' articulation for maximum versatility and is fitted with a control camera offering full visibility at all times.

The basket also boasts a maximum rotation angle of 2 x 220° and is mounted on a highflex jib which allows for 220° of vertical rotation.



Key Features of the Ruthmann T900 HF

  • 90m working height
  • Revolutionary double concept for an enhanced range of application possibilities = better utilisation rate
  • Highflex jib (RÜSSEL®) – 220° swivelling range
  • Highflex work basket – 440° rotation angle
  • Generous 600kg working cage load capacity
  • Mounted onto a 5-axle chassis with approx. 48t - 52t gross vehicle weight
  • Wide range of special equipment/optional extras to choose from

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Vehicle Mounted Platforms here.

  • General building maintenance
  • Film/TV work
  • Window cleaning
  • Construction
  • Industries and factories
  • Airports
  • Railways
  • Ventilation systems
  • Electrical systems
  • Advertising signs
  • Guttering
  • Painting
  • Lighting
  • Industrial Maintenance
  • Assembly
  • Ports
  • Pruning
  • Industrial cleaning
  • Restorations
  • Tree Care
  • Facade Cleaning
  • Arborist
  • CCTV/Security
  • Councils
  • Energy
  • Facilities Maintenance
  • Highways
  • Roofing
  • Telecommunication
  • Utilities

The Ruthmann T900 HF can be fitted-out with an assortment of accessories to increase productivity and safety on site.
