JCB 540-140

JCB 540-140

JCB 540-140

Specification

Make
Make
JCB
Model
Model
540-140
Lifting Height
Lifting Height
13.8m / 45ft 4in
Maximum Outreach
Maximum Outreach
9.25m / 30ft 5in
Lifting Capacity
Lifting Capacity
4,000.00kg / 8,840lbs

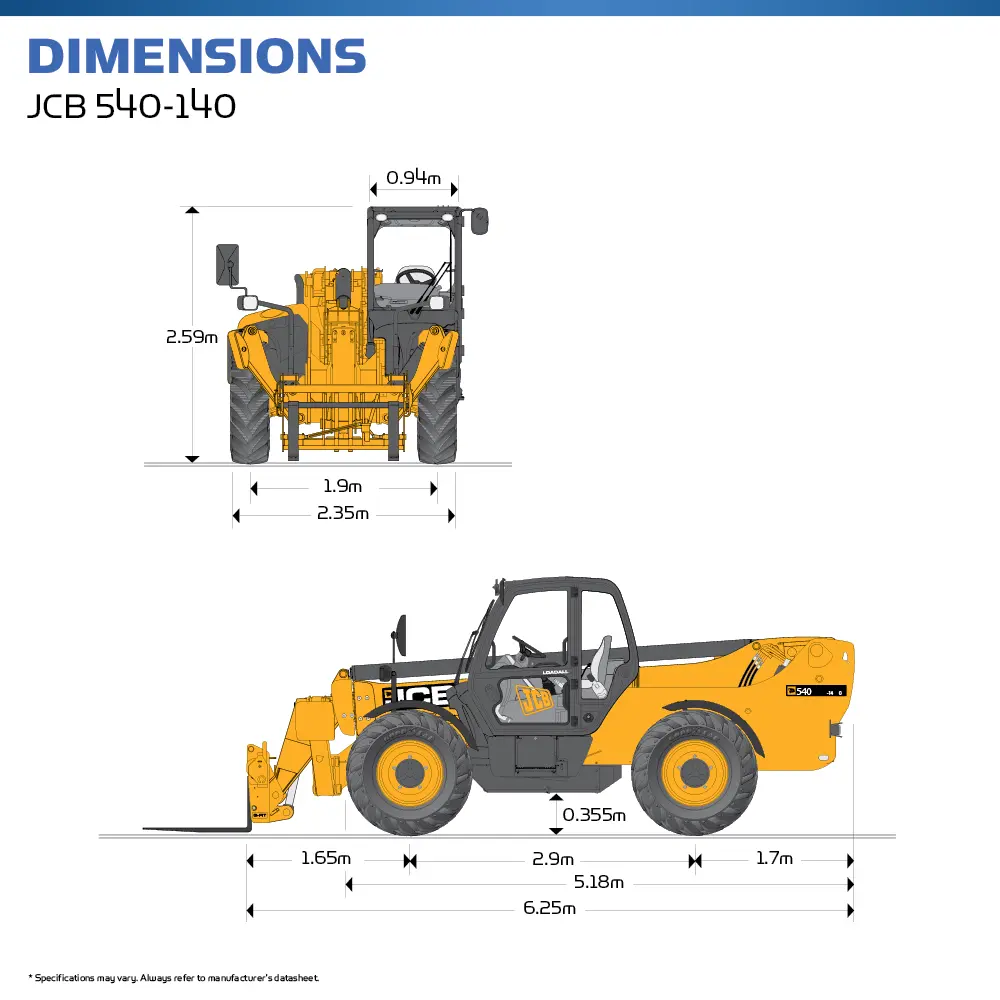

Machine Length
Machine Length
6.25m / 20ft 7in
Machine Width
Machine Width
2.35m / 7ft 9in
Machine Height
Machine Height
2.59m / 8ft 6in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
4.1m / 13ft 6in

Interested in hiring a JCB 540-140?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

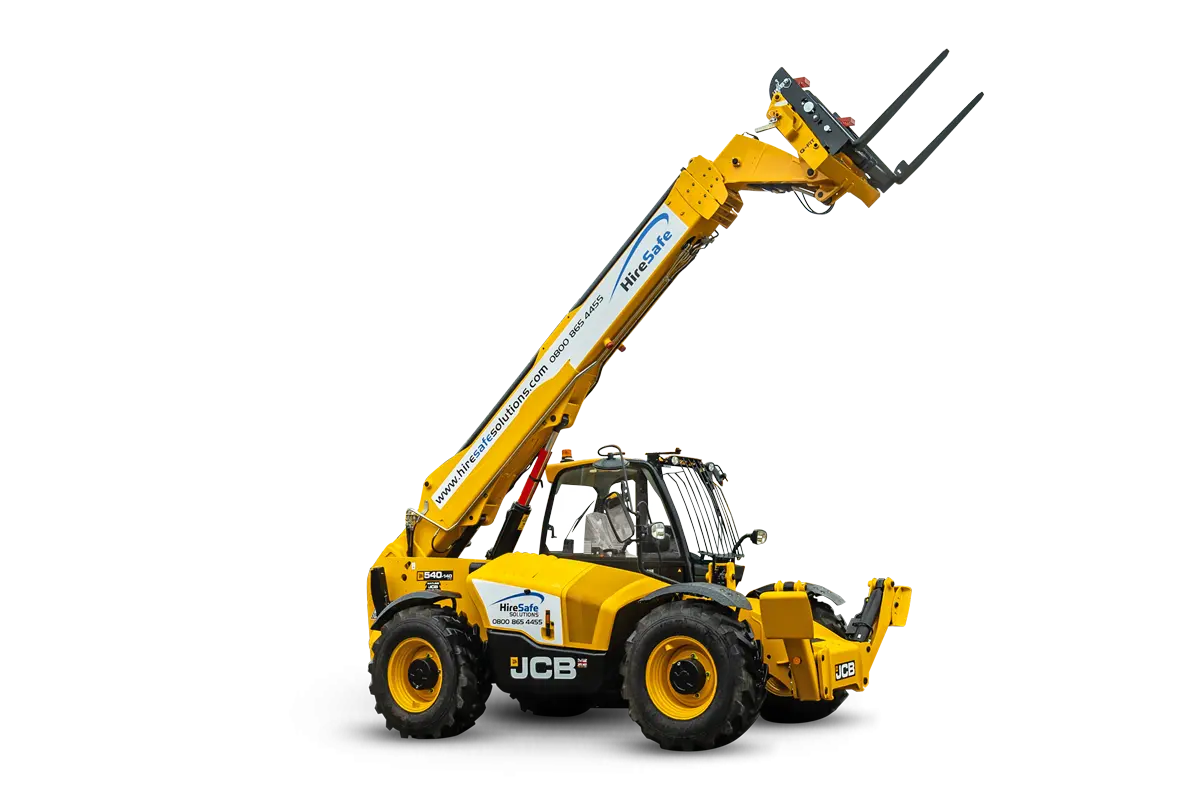

JCB 540-140 Telescopic Forklift

The JCB 540-140 loadall is a full-sized 4 stage telescopic handler with an impressively big reach. Able to cope with the unique and varying demands of many modern construction sites, the huge reach alongside the compact dimensions offer amazing performance and manoeuvrability whilst foregrounding operator comfort and ease of operation.

It’s efficiently powered by JCB’s diesel max engine and it sits on a chassis that’s specially designed to provide the ultimate in load-bearing and stability. The side-mounted JCB engine combines with JCB axles and transmission to ensure a reliable drivetrain performance from well-proven components. The MEWP comes with 4 wheel drive as standard which helps operators to maintain traction even in challenging terrains or in muddy conditions.

Overall, the 540-140 is a versatile machine with maximum lift and reach of 13.8m. Additionally, the maximum load capacity is 4,000kg, making it highly suitable for a wide range of jobs.

Key Features of the JCB 540-140

  • Powershift transmission with torque converter, bevel box and a 4 speed powershift gearbox in one mounted unit.
  • Self-levelling carriage with lever-operated pin locking which safely and easily accepts pallet forks and a wide range of optional attachments
  • Quiet safe and comfortable cab
  • This system continuously monitors the machine’s forward stability and leaves the operator in control at all times
  • Low boom profile and pivot point provide exceptional rearward visibility of any obstacles and on-site traffic, thus increasing safety

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Telescopic Forklifts here.

  • General building maintenance
  • General construction
  • Steel erection

The JCB 540-140 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Fork Extensions

Fork Extensions
Ground Guards

Ground Guards
Nappies

Nappies
Perimeter Lights

Perimeter Lights
Seatbelt Warning Beacon

Seatbelt Warning Beacon
Telehandler Bucket

Telehandler Bucket
Telehandler Jib

Telehandler Jib
Telematics

Telematics
Wheel Covers

Wheel Covers
