Zoomlion ZT58J

Zoomlion ZT58J

Zoomlion ZT58J

Specification

Make
Make
Zoomlion
Model
Model
ZT58J
Working Height
Working Height
58.8m / 192ft 11in
Platform Height
Platform Height
56.8m / 186ft 5in
Maximum Outreach
Maximum Outreach
25.5m / 83ft 8in
Min Weight
Min Weight
29,600.00kg / 65,416lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs
Machine Length
Machine Length
14.4m / 47ft 3in
Machine Width
Machine Width
2.5m / 8ft 3in
Machine Height
Machine Height
3.06m / 10ft 1in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.39m / 21ft
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Zoomlion ZT58J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

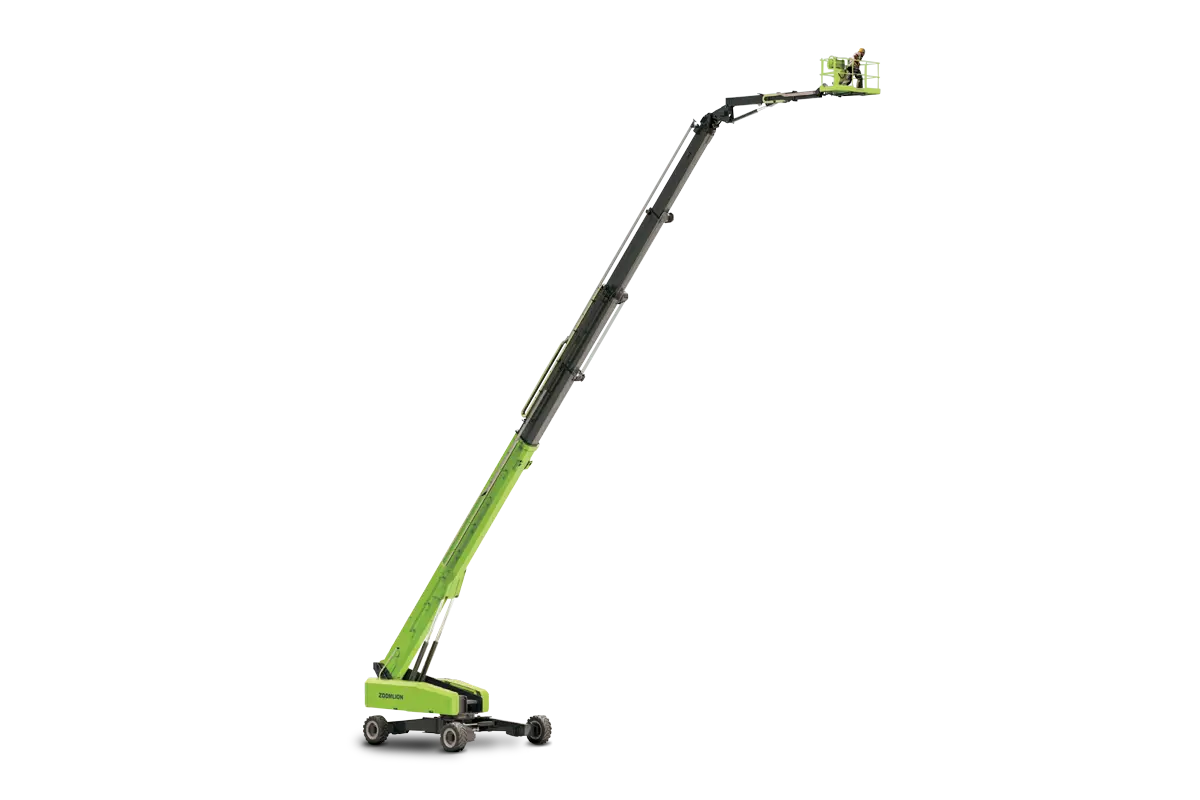

Zoomlion ZT58J Diesel Telescopic Boom Lift

The Zoomlion ZT58J Diesel telescopic boom lift reaches new heights with confidence, to an impressive 58.8 metres vertically and 25.5 metres horizontally. At the heart of this innovative model is the industry’s first polygonal boom, engineered to be over 10% lighter while delivering 25% greater vertical stiffness and 20% more torsional resistance.

The advanced X-style outriggers expand your working envelope, boost off-road capability, and provide superior stability across challenging terrain. Smart four-wheel steering ensures flawless coordination between outriggers during both steering and extension, while auto-matched all-wheel steering angles guarantee smooth, straight travel with ease. The five-section boom extends synchronously, combining speed with rock-solid stable performance.

The Zoomlion ZT58J features dual lifting capacities of 300kg (unrestricted) and 454kg (restricted) for greater flexibility and safety on site. Positioning of this machine can be done with ease thanks to its 360° continuous turntable swing, 180° platform rotation and 125° vertical jib articulation.

Key Features of the Zoomlion ZT58J

  • 58.8m Working Height
  • 56.8m Horizontal Reach
  • 2 rated load capacities of 300/454kg
  • Proportional control
  • All motion alarm
  • Self-closing entry gate
  • Emergency descent system
  • Auto-levelling system
  • On-board diagnostic system
  • Tilt protection system
  • Anemograph
  • Anti-crushing device
  • Foam-filled Tyres
  • Four wheel drive/Front wheel/Crab steering



Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work
  • Racking & Warehousing

The Zoomlion ZT58J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Chalwyn Valves

Chalwyn Valves
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Wheel Covers

Wheel Covers

Interested in hiring a Zoomlion ZT58J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
