XCMG XGS70K

XCMG XGS70K

XCMG XGS70K

Specification

Make
Make
XCMG
Model
Model
XGS70K
Working Height
Working Height
69.6m / 228ft 5in
Platform Height
Platform Height
67.9m / 222ft 10in
Maximum Outreach
Maximum Outreach
32m / 105ft
Min Weight
Min Weight
35,400.00kg / 78,234lbs
Safe Working Load
Safe Working Load
460.00kg / 1,017lbs
Machine Length
Machine Length
23.15m / 76ft
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
3.07m / 10ft 1in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.9m / 22ft 8in
Gradeability
Gradeability
35%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a XCMG XGS70K?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

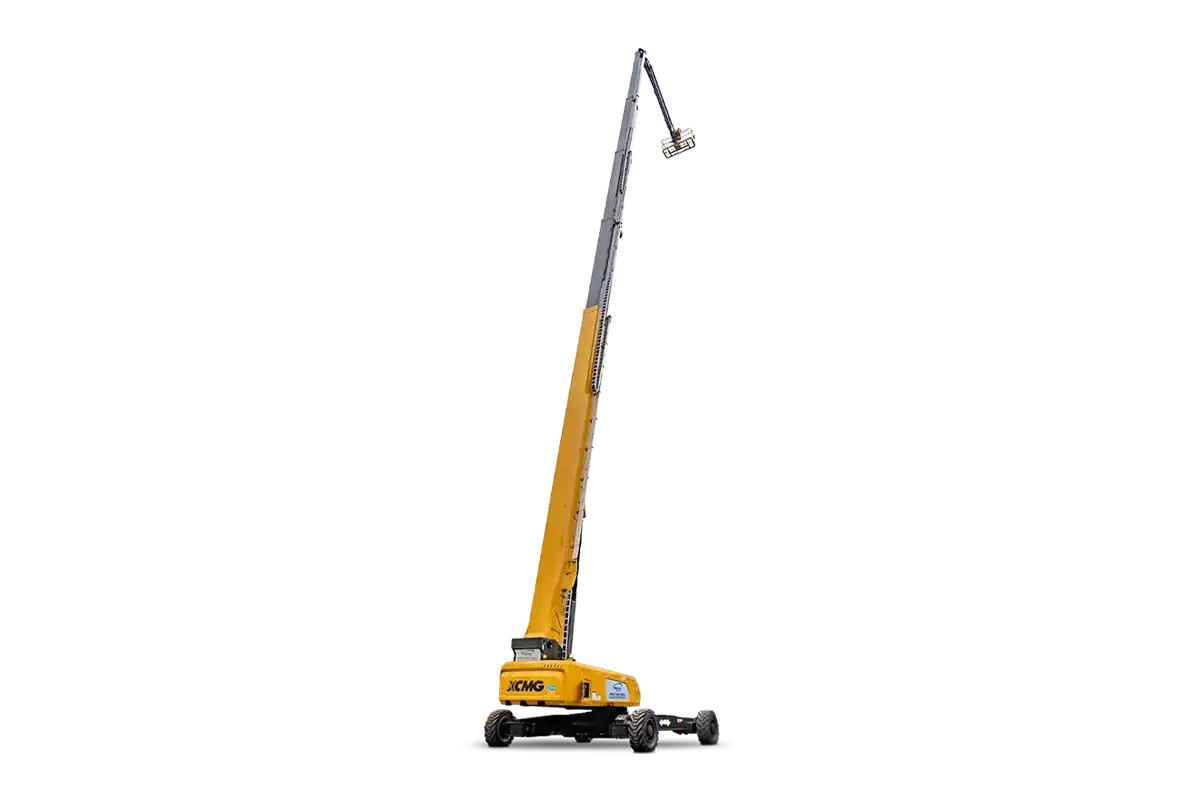

XCMG XGS70K Diesel Super Boom Lift

Designed for optimal operation in a range of challenging environments, the XCMG XGS70K – also known as XCMG XGS 70 E, offers a staggering working height of 70m, one of the most impressive elevating platforms available on the market today. The XCMG XGS70K state-of-the-art safety features ensure maximum security when in use. It can maintain a steady level irrespective of changes in external factors, such as changes in wind speed and uneven terrain. This  mechanism ensures that operators always feel secure and protected while working at height.

The XCMG XGS70K has a five section telescopic boom, topped by a three section jib with 131 degrees of articulation, providing a working height of just under 70m (69.6m to be exact) - and a maximum outreach of 32.5 m with 230kg in the platform. The maximum platform capacity is 460kg at an outreach of 27m, while 300kg is possible at just under 30m.

Key Features of the XCMG XGS70K

  • One of the most advanced Super Booms available
  • 5 section boom
  • 3 section heavy duty articulating telescopic jib
  • Extremely high lifting capacity
  • Advanced safety features
  • Wheels can turn at least 90°
  • Steady and secure in challenging environments
  • 2.4 x 0.9m working platform
  • 4 driving wheels
  • 4 steering wheels
  • 35% theoretical gradeability
  • 360° continuous turntable rotation
  • 160° platform rotation
  • Tilt alarm
  • Drive alarm
  • Enable switch
  • Overload alarm
  • Lift and lower alarm
  • Turntable control box
  • Chassis tilt protection device
  • Wire rope anti-loosening detection system
  • Wind speed monitoring protection device
  • Load and amplitude limit detection system
  • Platform automatic leveling system
  • Fully proportional muti-function controls
  • Cummins 74kW/(2200r/min)
  • 12V DC emergency power

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The XCMG XGS70K can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The XCMG XGS70K comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Extra Capacity

Extra Capacity
Large Basket

Large Basket
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Crab Steering

Crab Steering
Four-Wheel Steering

Four-Wheel Steering
