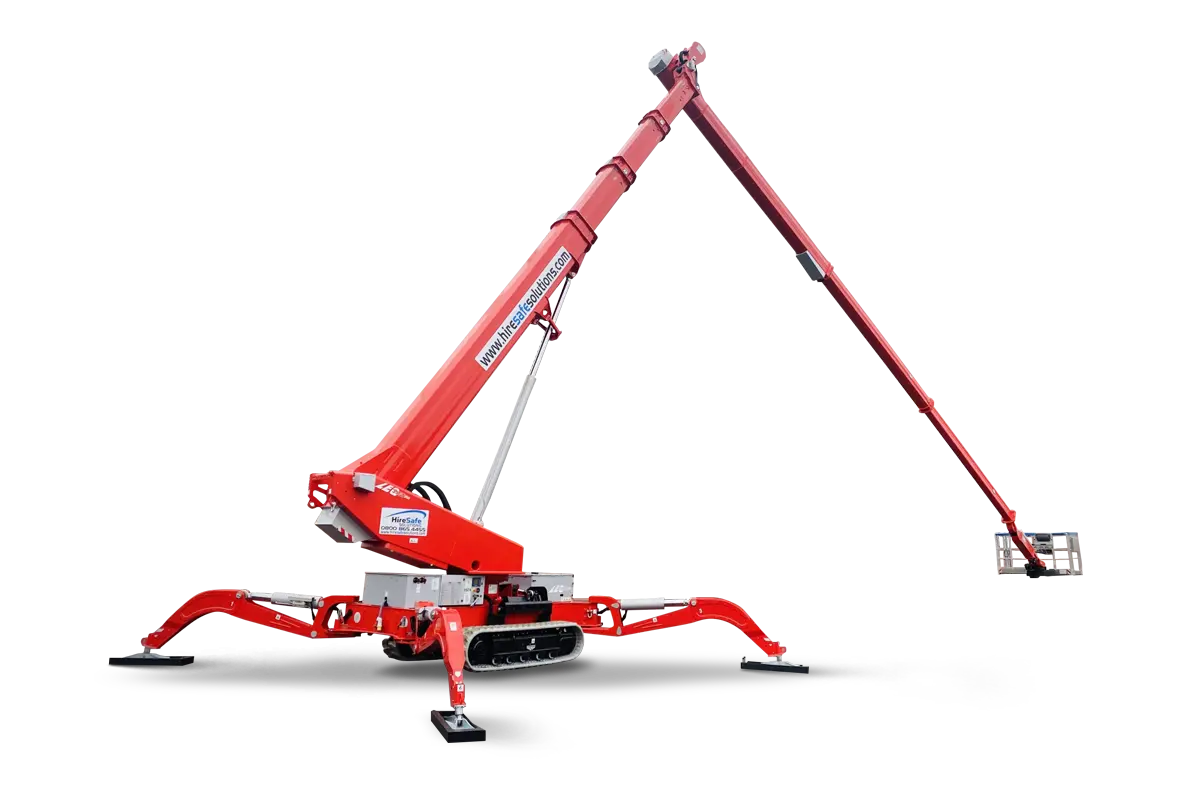

Teupen Leo 39GT Plus Super MEWP
The Teupen Leo 39GT Plus is an excellent choice of Super MEWP for highly challenging situations. The most demanding jobs often take place in difficult to reach areas or on rough terrain and the robust design, powerful engine, stabiliser system and the most versatile track chassis will easily tackle this as the automatic levelling system positions the Teupen Leo 39GT Plus into a comfortably safe working position. The stabilisation works on different height levels and offers various setup positions for jobsites with very limited space.
The Teupen Leo 39GT Plus can be started and stopped from the wireless radio remote control box as standard, allowing the operator to move around the machine to get a better overview of operations. The easy to use display shows fuel indicator, platform capacity/live load during the use of the lifting device and load capacity in percentage form.
The perfect mix between compactness, lightness and flexibility is what makes the Teupen Leo 39GT Plus an all-purpose tool. Thanks to the powerful track drive, this machine can drive on slopes up to 30% inclination and even have the ability to climb stairs.
Key Features of the Teupen Leo 39GT Plus
- Compact design
- Ideal traffic load
- Intuitive control system
- Dual power source
- 400kg platform capacity
- Electric motor
- Diesel engine Kubota D1305 (18kW / 24.47 PS)
- Powerful track drive with hydraulic braking system
- Precise manoeuvring via sensitive remote control
- White, non-marking rubber tracks with specially arranged profile for optimal grip
- Hydraulically height- and width-adjustable crawler track drive
- Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
- Variable outrigger system with one side narrow setup option
- Outrigger pads, steel
- Boom system made of steel
- All functions available via radio remote control
- Robust, lockable control panel
- Platform changing system
- Coming home and memory function which can be stored for any point on the work diagram and the point accessed once more at the touch of a button
- Radio control with display, two-line
- Height cut-off for boom system, 2 set points
- Horizontal outreach, selectable
- Start-stop device for combustion engine in the platform
- Hydraulic emergency lowering via electric pump
- Additional hydraulic drive for boom recovery via platform control
- Power socket in the platform (country-specific 1-phases)
- Ultrasonic sensors platform
- 2 LED headlights (drive unit)
- Detachable platform
- Drive operation without platform possible
- Lockable storage box
- Protected, internal power track for platform control
- Hydraulic system filled with biodegradable hydraulic oil
- Unlockable check valves located directly on hydraulic cylinders
- Hydraulic system protected by pressure relief valves
- Display in the control panel
- Additional display in the control box
Recommended training course for this platform: IPAF Category: Static Boom (1b)
Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.
Call us on 0800 865 4455 for more information
Or, fill out an enquiry form here and we will get back to you as soon as possible.
