Teupen Leo 35T Plus

Teupen Leo 35T Plus

Teupen Leo 35T Plus

Specification

Make
Make
Teupen
Model
Model
Leo 35T Plus
Working Height
Working Height
35m / 114ft 10in
Platform Height
Platform Height
33m / 108ft 4in
Maximum Outreach
Maximum Outreach
16m / 52ft 6in
Min Weight
Min Weight
5,400.00kg / 11,934lbs
Safe Working Load
Safe Working Load
400.00kg / 884lbs
Machine Length
Machine Length
8m / 26ft 3in
Machine Width
Machine Width
1.58m / 5ft 3in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel, Electric
Gradeability
Gradeability
30%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Teupen Leo 35T Plus?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

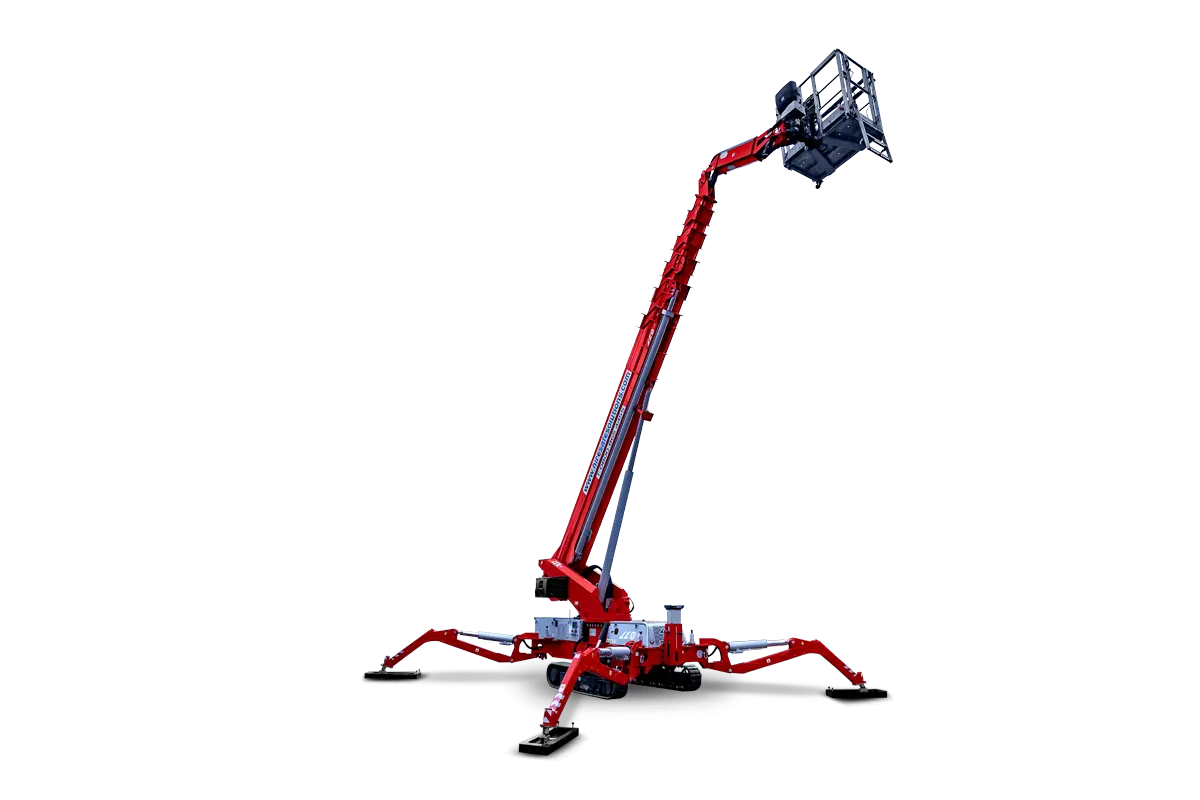

Teupen Leo 35T Plus Super MEWP

The Teupen Leo 35T Plus MEWP offers safe positioning, even with little space. It is equipped with a multi-position stabiliser system which automatically sets up the machine in confined areas and on slopes. It offers three different setup positions: both sides wide, one side wide and one side narrow or both sides narrow. In terrain or over obstacles, the stabilisers overcome a height difference of 1.2m. The Teupen Leo 35T Plus also offers track drive with non-marking rubber tracks to provide easy and precise manoeuvring as well protection to sensitive flooring.

The Teupen Leo 35T Plus is equipped with a hydraulically height and width adjustable track drive at a touch of a button. The narrow setting decreases the width of the machine and the wide setting increases ground clearance and stability. Levelled driving alongside slopes is also possible with the battery powered emergency lowering function which makes the use of a hand pump obsolete and the direct hydraulic operating system is easily accessible.

Key Features of the Teupen Leo 35T Plus

  • Powerful track drive with hydraulic braking system
  • Precise manoeuvring via sensitive remote control
  • White, non-marking rubber tracks with specially arranged profile for optimal grip
  • Hydraulically height- and width-adjustable crawler track drive
  • Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
  • Variable outrigger system with one side or both sides narrow setup option
  • Outrigger pads, steel
  • Boom system made of steel/aluminium boom tubes
  • All functions available via radio remote control
  • Stepless, electrical proportional control system with intuitive operation
  • Robust, lockable control panel
  • Parallel guided platform with electro hydraulic levelling
  • 180° platform rotation for additional flexibility
  • Turntable rotation via high-performance slewing ring and hydraulic motor
  • Platform changing system
  • Coming home and memory function which can be stored for any point on the work diagram and the point can be accessed once more at the touch of a button
  • Radio control with display, two-line
  • Height cut-off for boom system, 2 set points
  • Horizontal outreach, selectable
  • Platform capacity, selectable (300kg / 400kg)
  • Electric motor (country-specific 1-phase)
  • Diesel engine Kubota D902 (16.1kW / 21.6hp)
  • Start-stop device for combustion engine via radio control
  • Hydraulic emergency lowering via electric pump
  • Additional hydraulic drive for boom recovery via platform control
  • Power socket in the platform
  • 2 LED headlights (drive unit)
  • Detachable platform, attachment points for safety harnesses and tool tray
  • Drive operation without platform possible
  • Lockable storage box
  • Protected, internal power track for platform control
  • Hydraulic system filled with biodegradable hydraulic oil
  • Unlockable check valves located directly on hydraulic cylinders
  • Hydraulic system protected by pressure relief valves
  • Hydraulic tank, emergency control, connecting cables and hoses are mounted protected
  • Display in the control panel

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • Building and factory maintenance
  • Finished floors
  • Utilities upgrading
  • Communication masts and towers
  • Large tree work
  • Construction and fit-out applications

The Teupen Leo 35T Plus can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Teupen Leo 35T Plus comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Wireless Platform Controls

Wireless Platform Controls
Extra Capacity

Extra Capacity
