JLG 800AJ HC3

JLG 800AJ HC3

JLG 800AJ HC3

Specification

Make
Make
JLG
Model
Model
800AJ HC3
Working Height
Working Height
26.5m / 87ft
Platform Height
Platform Height
24.5m / 80ft 5in
Maximum Outreach
Maximum Outreach
15.9m / 52ft 2in
Min Weight
Min Weight
17,023.00kg / 37,621lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs
Machine Length
Machine Length
11.22m / 36ft 10in
Machine Width
Machine Width
2.48m / 8ft 2in
Machine Height
Machine Height
2.97m / 9ft 9in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.56m / 21ft 7in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a JLG 800AJ HC3?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

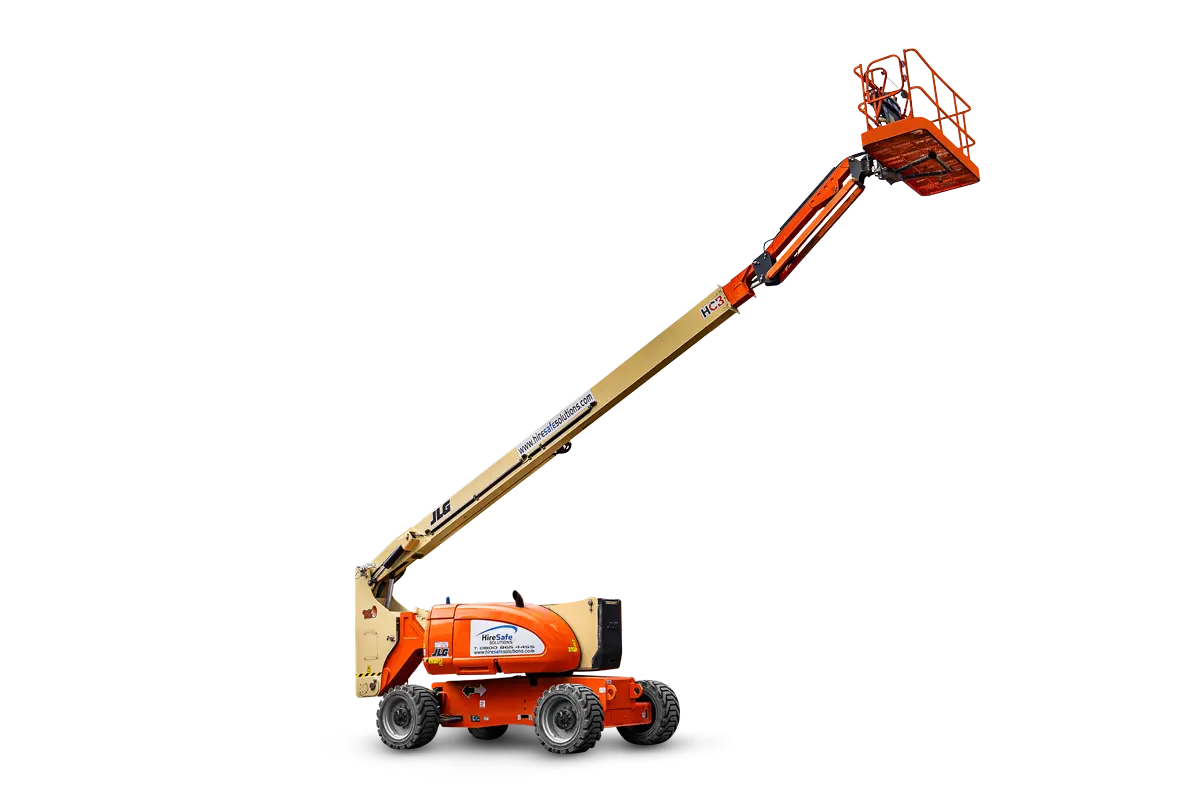

JLG 800AJ HC3 Diesel Cherry Picker Super Boom

The JLG 800AJ HC3 is a Hi-Capacity articulated Boom Lift/Cherry Picker with excellent reach and versatility. It offers an impressive working height of 26.5m, horizontal outreach of 15.9m and an up and over clearance of 9.9m. This high-capacity machine offers the same great features as the standard JLG 800AJ but with the added benefit of being able to lift up to a maximum of 454kg.

Key Features of the JLG 800AJ HC3

  • More Flexibility at Height with three working zones and enhanced lifting capacities; up to three workers and tools can fit into the platform
  • Unrestricted lift capacity of 300kg, and two additional restricted lift capacities of 340kg and 454kg
  • 1.83m Jib with 130° of articulation
  • The upgraded light panel is more visible in the sun, while a chassis tilt alarm alerts the operator when the machine is on a slope that exceeds 5 degrees
  • Rugged rough-terrain tyres, 45% gradeability and front oscillating axle for impeccable performance on uneven and challenging terrain
  • 4 Degree Tilt Alarm/Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • All Motion Alarm
  • Articulating Jib
  • Control ADE® System
  • Engine Distress Warning and Shutdown
  • Gull-Wing Hoods
  • Hydrostatic Drive
  • LED Motion/Amber Beacon
  • Lifting/Tie Down Lugs
  • Load Sensing System
  • Oscillating Axle
  • Proportional Controls
  • Platform Console Machine Status Light Panel
  • Swing-Out Engine Tray
  • SkyGuard SkyLine™

Recommended training course for this platform:  IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The JLG 800AJ HC3 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The JLG 800AJ HC3 comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Extra Capacity

Extra Capacity
Four Wheel Drive

Four Wheel Drive
Stage V Engine

Stage V Engine
Oscillating Axles

Oscillating Axles
Large Basket

Large Basket
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres

Interested in hiring a JLG 800AJ HC3?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
