Genie S80 J

Genie S80 J

Genie S80 J

Specification

Make
Make
Genie
Model
Model
S80 J
Working Height
Working Height
26.51m / 87ft
Platform Height
Platform Height
24.51m / 80ft 5in
Maximum Outreach
Maximum Outreach
16.69m / 54ft 10in
Min Weight
Min Weight
11,113.00kg / 24,560lbs
Safe Working Load
Safe Working Load
300.00kg / 663lbs
Machine Length
Machine Length
10.44m / 34ft 4in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.74m / 9ft
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
4.7m / 15ft 6in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a Genie S80 J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

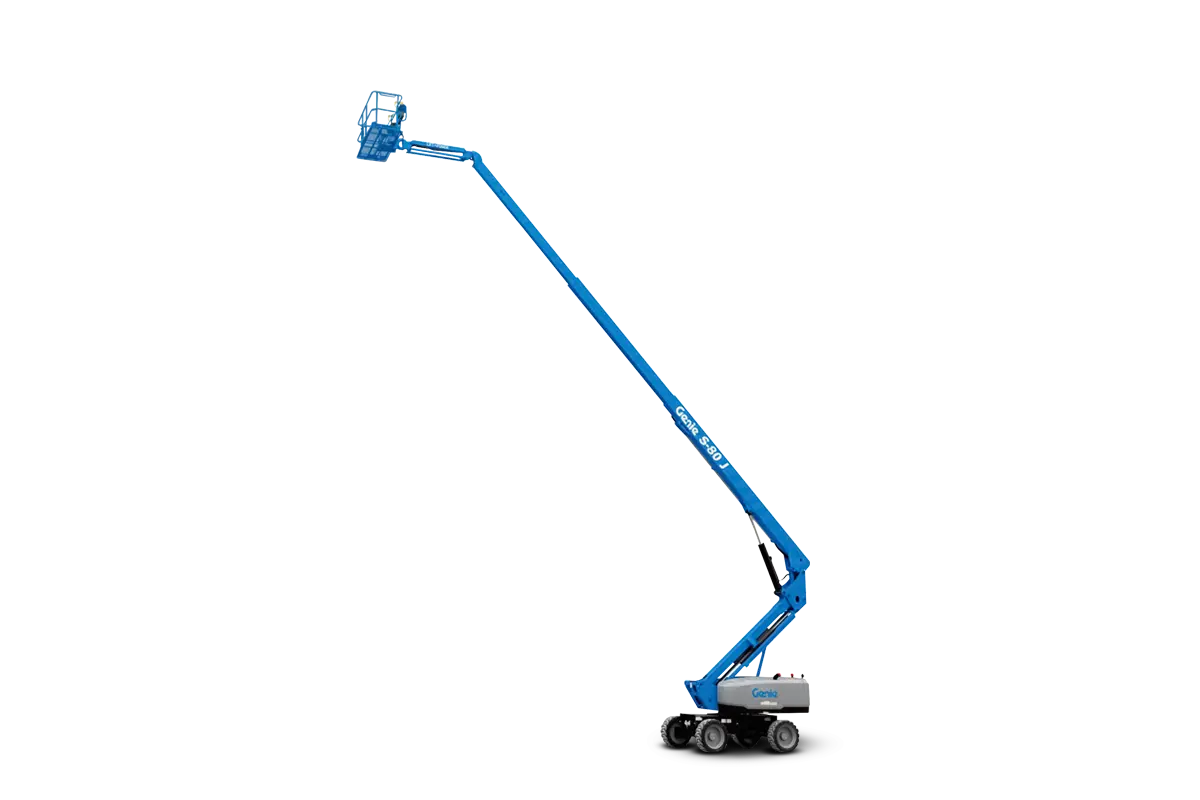

Genie S80 J Diesel Telescopic Boom Lift

The Genie S80 J diesel telescopic boom lift is a robust machine offering the performance and reliability that operators need to get work done at height. Powered by a small but powerful low-emission Stage V engine, the Genie S80 J is able to tackle even the most demanding worksites. Rough terrain tyres and 4WD come as standard and the active oscillating axle provides great traction all-round.

The Genie S80 J has a max working height of 26.51m and offers an unrestricted platform capacity of 300kg throughout its full envelope allowing for two occupants plus tools to work safely at height.

Key Features of the Genie S80 J

  • Suited for use in general construction, maintenance, inspection and painting tasks
  • Leading unrestricted platform capacity of 300kg with 1.83m jib
  • 26.51m platform height and 16.69m horizontal reach for access at the top of the envelope
  • High-ground clearance helps clear rocks, curbs, trailer break-overs and other daily obstacles



Recommended training course for this platform: IPAF Category: Mobile Boom (3b)



Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The Genie S80 J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Genie S80 J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Four Wheel Drive

Four Wheel Drive
Large Basket

Large Basket
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Oscillating Axles

Oscillating Axles
Stage V Engine

Stage V Engine

Interested in hiring a Genie S80 J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
