Dingli 3225 DC

Dingli 3225 DC

Dingli 3225 DC

Specification

Make
Make
Dingli
Model
Model
JCPT3225DC
Working Height
Working Height
32m / 105ft
Platform Height
Platform Height
30m / 98ft 6in
Min Weight
Min Weight
23,950.00kg / 52,930lbs
Safe Working Load
Safe Working Load
1,000.00kg / 2,210lbs
Machine Length
Machine Length
6.73m / 22ft 1in
Machine Width
Machine Width
2.55m / 8ft 5in
Machine Height
Machine Height
4.13m / 13ft 7in
Power Options
Power Options
Diesel, Electric/Battery
Turning Radius
Turning Radius
3.8m / 12ft 6in
Gradeability
Gradeability
30%

Interested in hiring a Dingli 3225 DC?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

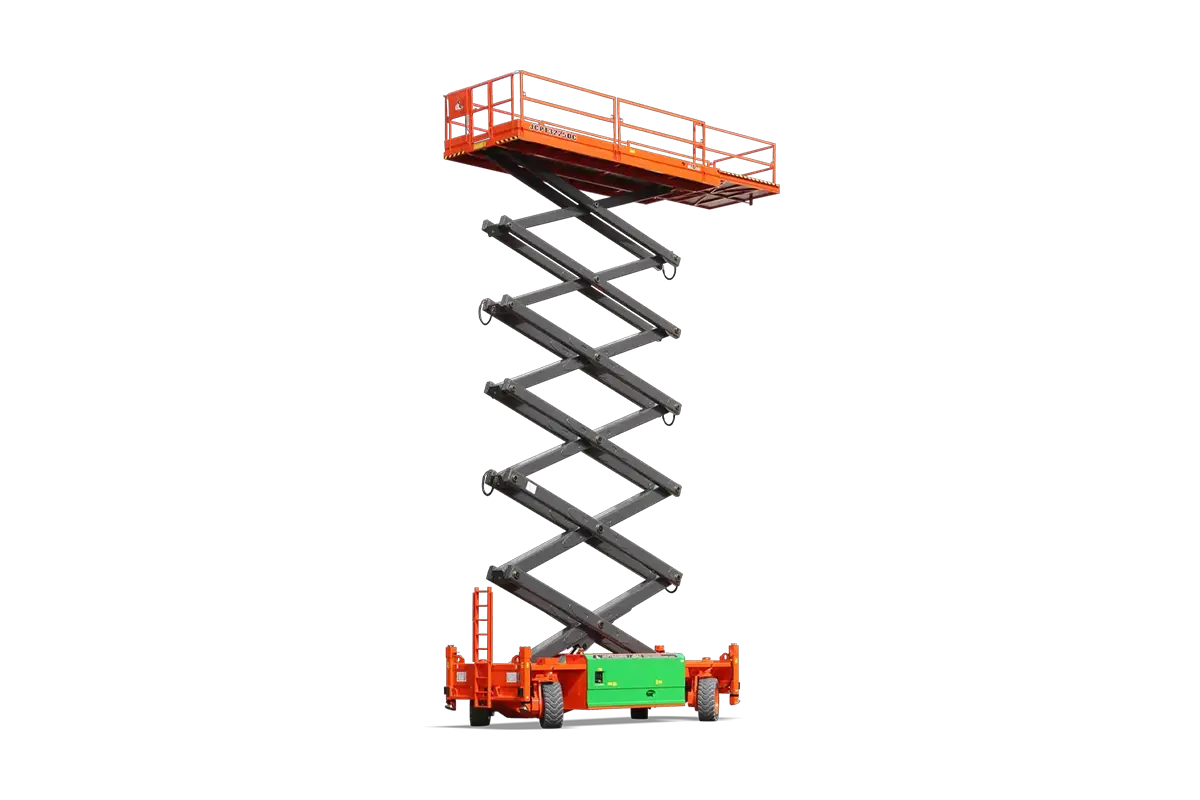

Dingli 3225 DC Scissor Lift

The battery-powered, maximum 32m height Dingli 3225 DC is ideal for both indoor and outdoor use. Offering low noise and zero emissions, the Dingli 3225 DC is perfect for sites such as food production facilities, industrial refrigeration units, and enclosed high bay warehousing.

Utilising state-of-the-art features such as an easy-to-use control system and a high-quality safety mechanism, the Dingli 3225 DC is incredibly versatile with a platform that can accommodate up to five people, plus tools and equipment.

Key Features of the Dingli 3225 DC

  • Zero emissions
  • 2m x 2.45m Standard Deck
  • 2.1m Deck Extension
  • Non-marking tyres
  • Proportional Joystick Controls
  • Self-Locking Gates
  • Automatic One-Way Platform Extension Deck
  • Four-Wheel Drive
  • Four-Wheel Steering
  • Automatic Braking System
  • Self-Weight Lowering System
  • Tubing Explosion-Proof System
  • Onboard Fault Diagnostic System
  • Tilt Alarm
  • Motion Alarm
  • Horn
  • Charging Protection System
  • Flashing LED Beacon
  • Foldable Guard Rails
  • Drive Enable
  • Charging Indicator
  • Manual Brake Release
  • Lanyard Attachment Point
  • Tie-Down And Lifting Points
  • Automatic Leveling Hydraulic Outriggers
  • Emergency Pump
  • Emergency Stop Button
  • Platform Load Sense System
  • Drivable At Full Height

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • General building maintenance
  • Warehousing
  • Logistics Hubs

The Dingli 3225 DC can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Large Scissor Pipe Racks

Large Scissor Pipe Racks
Outrigger Pads

Outrigger Pads
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

Interested in hiring a Dingli 3225 DC?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
