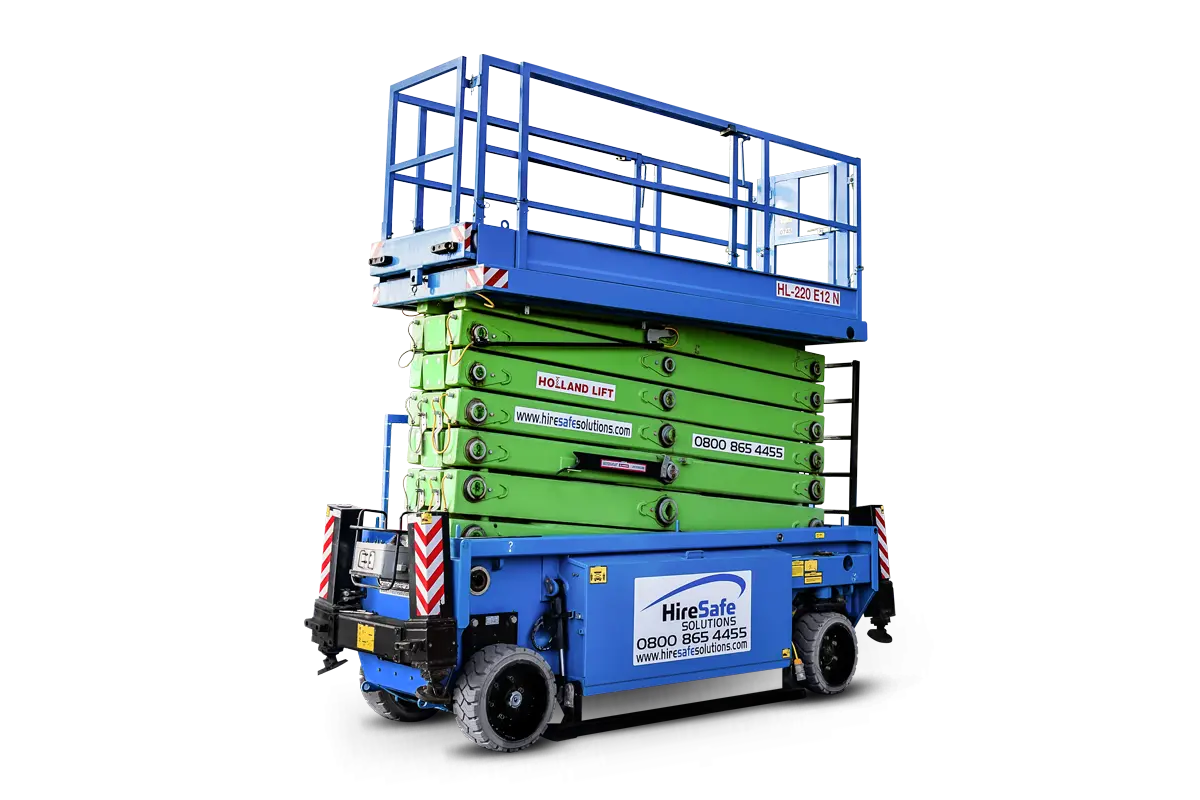

Holland Lift HL220 E12

Holland Lift HL220 E12

Holland Lift HL220 E12

Specification

Make
Make
Holland Lift
Model
Model
HL 220 E12
Working Height
Working Height
21.7m / 71ft 3in
Platform Height
Platform Height
19.7m / 64ft 8in
Min Weight
Min Weight
9,120.00kg / 20,155lbs
Safe Working Load
Safe Working Load
500.00kg / 1,105lbs
Machine Length
Machine Length
3.74m / 12ft 4in
Machine Width
Machine Width
1.2m / 4ft
Machine Height
Machine Height
3.74m / 12ft 4in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
3.92m / 12ft 11in
Gradeability
Gradeability
25%

Interested in hiring a Holland Lift HL220 E12?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Holland Lift HL220 E12 Electric Scissor Lift

The Holland Lift HL220 E12 has as working height of 21.7m and is one of the most common 20m electrical scissor lifts available. The extremely robust design ensures a safe and stable environment when working at a full height as well as accompanying a safe working load of 500kg. The Holland Lift HL220 EL12 has a narrow width of 1.2m, which not only enables operation within difficult spaces, but ease of travel through tight spaces.

Key Features of the Holland Lift HL220 E12

  • Controlbox with quick disconnect
  • Charger (hight frequency)
  • 230V supply on platform
  • Driving at full height
  • Driving, proportional
  • Differential lock
  • Lubrication system Easy Lube
  • Lubrication system Auto Lube
  • Scissor skirt
  • Descent safety
  • Flashing beacons
  • Drive alarm
  • Emergency descent

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Holland Lift HL220 E12 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Large Scissor Pipe Racks

Large Scissor Pipe Racks
Onboard Generator

Onboard Generator
Outrigger Pads

Outrigger Pads
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Holland Lift HL220 E12 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Self-Levelling Jacks - SL

Self-Levelling Jacks - SL
Large Scissor Single Deck Extension

Large Scissor Single Deck Extension
