Teupen Leo 24GT

Teupen Leo 24GT

Teupen Leo 24GT

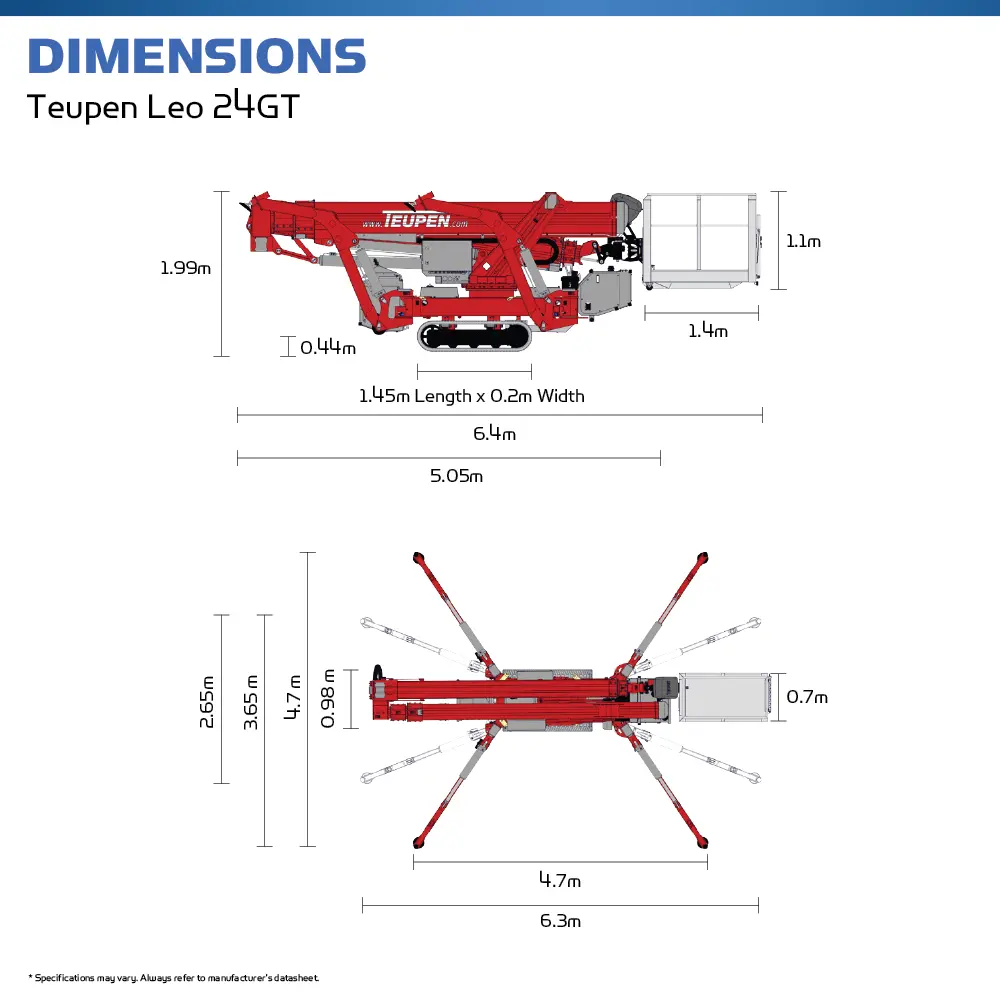

Specification

Make
Make
Teupen
Model
Model
Leo 24GT
Working Height
Working Height
24m / 78ft 9in
Platform Height
Platform Height
22m / 72ft 3in
Maximum Outreach
Maximum Outreach
12m / 39ft 5in
Min Weight
Min Weight
3,300.00kg / 7,293lbs
Lifting Capacity
Lifting Capacity
250.00kg / 553lbs
Machine Length
Machine Length
6.4m / 21ft
Machine Width
Machine Width
0.98m / 3ft 3in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel, Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Teupen Leo 24GT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Teupen Leo 24GT Spider Lift

The Teupen Leo 24GT Spider Lift features a working height of 24m, horizontal outreach of 12m and a maximum platform capacity of 250kg. With a compact, easy to transport design, it handles high-elevation tasks with ease, providing reliable performance in multiple environments. The intuitive controls facilitate smooth operation in tight spaces and the low surface load and non marking rubber tracks protect sensitive flooring, ideal for indoor and outdoor use. Operators can easily switch between power sources, minimising emissions and noise levels in emission-sensitive areas.

The Teupen Leo 24GT is easy to manoeuvre through narrow spaces and doorways, boasting a minimum width and height of just 0.98m and 1.99m respectively; perfect for working safely in challenging or restricted areas. It has a spacious platform of 1.40m x 0.70m and provides smooth movement and precise positioning thanks to its sensitive remote control, making it suitable for a wide range of applications in various industries.

The dual power source enables the Teupen Leo 24GT to operate on either electric power, diesel power or from an external mains supply and with these exceptional features, performance and reliability, the Teupen Leo 24GT is the perfect aerial work platform for efficient and safe access to elevated work areas.



Key Features of the Teupen Leo 24GT

  • Powerful track drive with hydraulic braking system
  • Precise manoeuvring via sensitive remote control
  • Indoor non-marking rubber tracks, with less tread depth the profile enables smooth travelling
  • Hydraulically height - and width - adjustable crawler track drive
  • Telescopic lower and upper boom
  • All functions available via radio remote control
  • Robust, lockable control panel
  • Electrohydraulic stabilisation with automatic levelling and ground pressure sensor system
  • Variable outrigger system with one side or both sides narrow setup option
  • Wear resistant, anti-friction outrigger pads
  • Start-stop device for combustion engine in the platform
  • Electric motor
  • Hydraulic emergency lowering via hand pump
  • Detachable platform, attachment points for safety harnesses and tool tray
  • Drive operation without platform possible
  • Protected, internal power track for platform control
  • Hydraulic system filled with biodegradable hydraulic oil



Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Spider Lifts here.

  • Tree Care
  • Property maintenance
  • Telecommunications mast and structures
  • Landscaped grounds
  • Historic Houses
  • Shopping Centres
  • Museums

The Teupen Leo 24GT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Teupen Leo 24GT comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Wireless Platform Controls

Wireless Platform Controls
