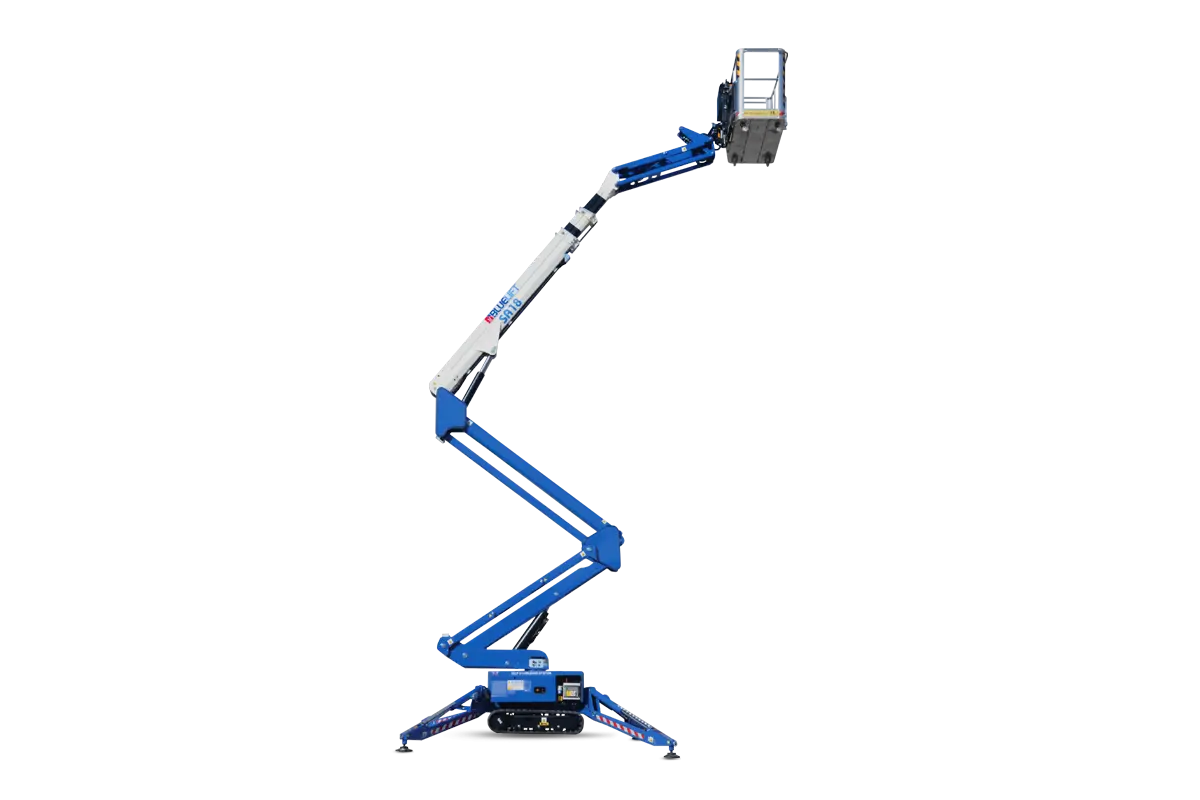

Ruthmann Bluelift SA18

Ruthmann Bluelift SA18

Ruthmann Bluelift SA18

Specification

Make
Make
Ruthmann
Model
Model
Bluelift SA18
Working Height
Working Height
17.8m / 58ft 5in
Platform Height
Platform Height
15.8m / 51ft 11in
Maximum Outreach
Maximum Outreach
9.3m / 30ft 7in
Min Weight
Min Weight
1,950.00kg / 4,310lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

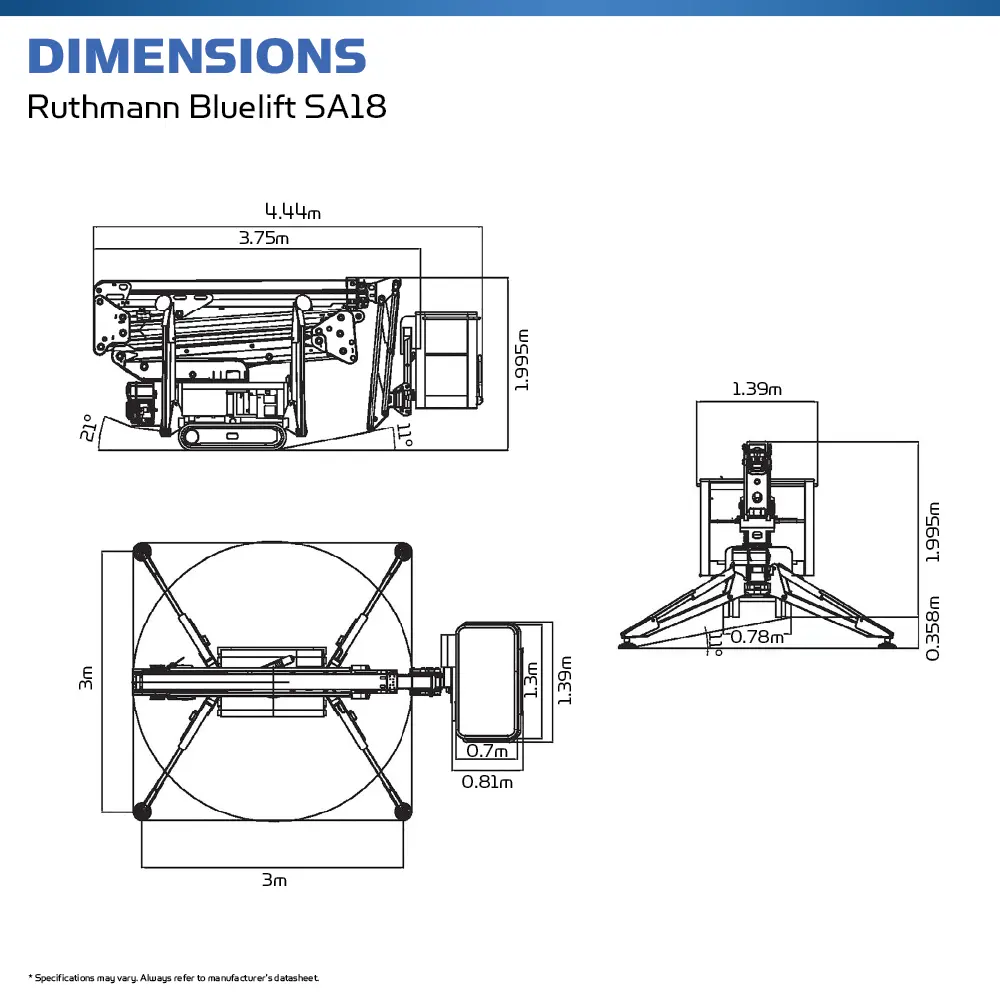

Machine Length
Machine Length
4.44m / 14ft 7in
Machine Width
Machine Width
0.78m / 2ft 7in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel, Electric
Gradeability
Gradeability
28%
Cage Rotation
Cage Rotation
340 degrees

Interested in hiring a Ruthmann Bluelift SA18?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Ruthmann Bluelift SA18 Super MEWP

The Ruthmann Bluelift SA18 is a popular MEWP and diversely suited machine for various indoor and outdoor applications. These machines are well-known for their advanced technology, low overall weight, high performance and compact dimensions as well as being easy to use.

Key Features of the Ruthmann Bluelift SA18

  • Quickly removable aluminum basket
  • Basket rotation
  • i-Performing electric pump with auto Start/Stop system
  • 230V power outlet in basket
  • Cable remote control with interactive and multi-lingual display
  • Movement limiting device
  • Automatic center position of turret
  • Self Stabilising system
  • Automatic START & STOP of engines and RPM control
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Double drive speed system with safety control
  • Driving Lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • lnterblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple Emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder's piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safely regulation

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • Building and factory maintenance
  • Finished floors
  • Utilities upgrading

The Ruthmann Bluelift SA18 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Ruthmann Bluelift SA18 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Extra Capacity

Extra Capacity
