Skyjack SJ9241RT

Skyjack SJ9241RT

Skyjack SJ9241RT

Specification

Make
Make
Sky Jack
Model
Model
SJ9241RT
Working Height
Working Height
14.5m / 47ft 7in
Platform Height
Platform Height
12.5m / 41ft 1in
Min Weight
Min Weight
6,715.00kg / 14,840lbs
Safe Working Load
Safe Working Load
681.00kg / 1,505lbs

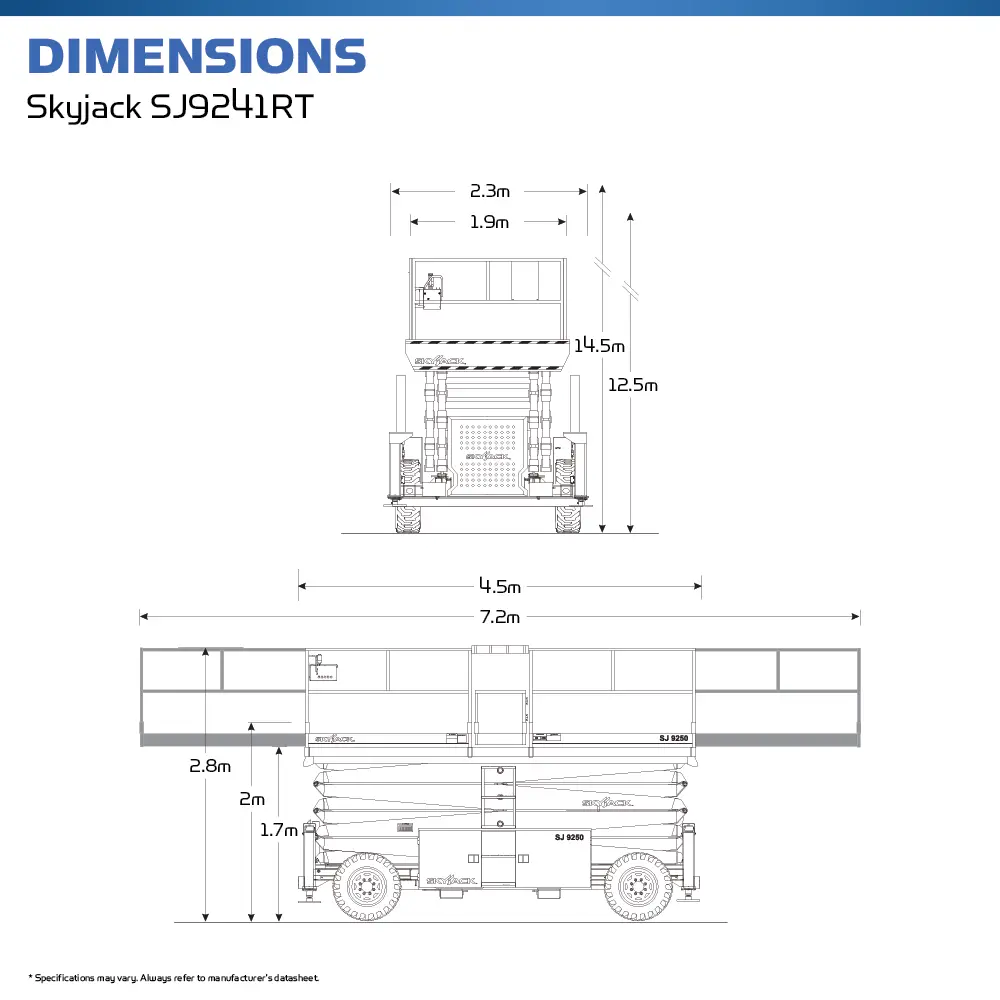

Machine Length
Machine Length
4.5m / 14ft 10in
Machine Width
Machine Width
2.3m / 7ft 7in
Machine Height
Machine Height
2m / 6ft 7in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
4.4m / 14ft 6in
Gradeability
Gradeability
30%

Interested in hiring a Skyjack SJ9241RT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Skyjack SJ9241RT Diesel Scissor Lift

The Skyjack SJ9241RT forms part of the full size series of rough terrain scissor lifts which deliver huge work platform areas, impressive working heights and heavy duty capacities.

The Skyjack SJ9241RT features an expansive platform, up to 7.2m in length, when both 1.5m powered extension decks are extended. With working heights up to 14.5m and standard independent/auto leveling outriggers, these units can meet the needs of even the most challenging job sites. An easily accessible Kubota diesel engine powers a robust axle based 4WD system with “no-spin” and limited slip differentials, delivering excellent job site terrainability.

Key Features of the Skyjack SJ9241RT

  • Axle based 4WD
  • “No Spin” rear differential and limited slip front differential
  • Disc brake system on rear axle
  • 29hp Kubota diesel engine on roll out tray
  • Self centering scissor design
  • Dual powered extension decks (1.5m front and rear)
  • Large 7.2m total working platform length
  • Independent/auto leveling outriggers
  • Analog control system
  • Colour coded and numbered wiring system
  • 30% gradeability
  • Foam-filled tyres
  • Wiring for AC outlet on platform
  • Tilt alarm with drive & lift cut-out
  • Overload sensing system
  • Lowering warning system
  • Flashing light
  • Operator horn
  • Fold down hinged railing system
  • Half height spring hinged gates on both sides
  • Scissor guards
  • Lanyard attachment points
  • Tie down/lift lugs

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • General building maintenance

The Skyjack SJ9241RT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Large Scissor Pipe Racks

Large Scissor Pipe Racks
Nappies

Nappies
Onboard Generator

Onboard Generator
Outrigger Pads

Outrigger Pads
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Skyjack SJ9241RT comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Dual Deck Extensions

Dual Deck Extensions
Power to Platform

Power to Platform
Rough Terrain Tyres - SL

Rough Terrain Tyres - SL
Self-Levelling Jacks

Self-Levelling Jacks
