Magni RTH 6.21

Magni RTH 6.21

Magni RTH 6.21

Specification

Make
Make
Magni
Model
Model
RTH 6.21
Lifting Height
Lifting Height
20.8m / 68ft 3in
Maximum Outreach
Maximum Outreach
17.4m / 57ft 2in
Min Weight
Min Weight
17,600.00kg / 38,896lbs
Lifting Capacity
Lifting Capacity
6,000.00kg / 13,260lbs

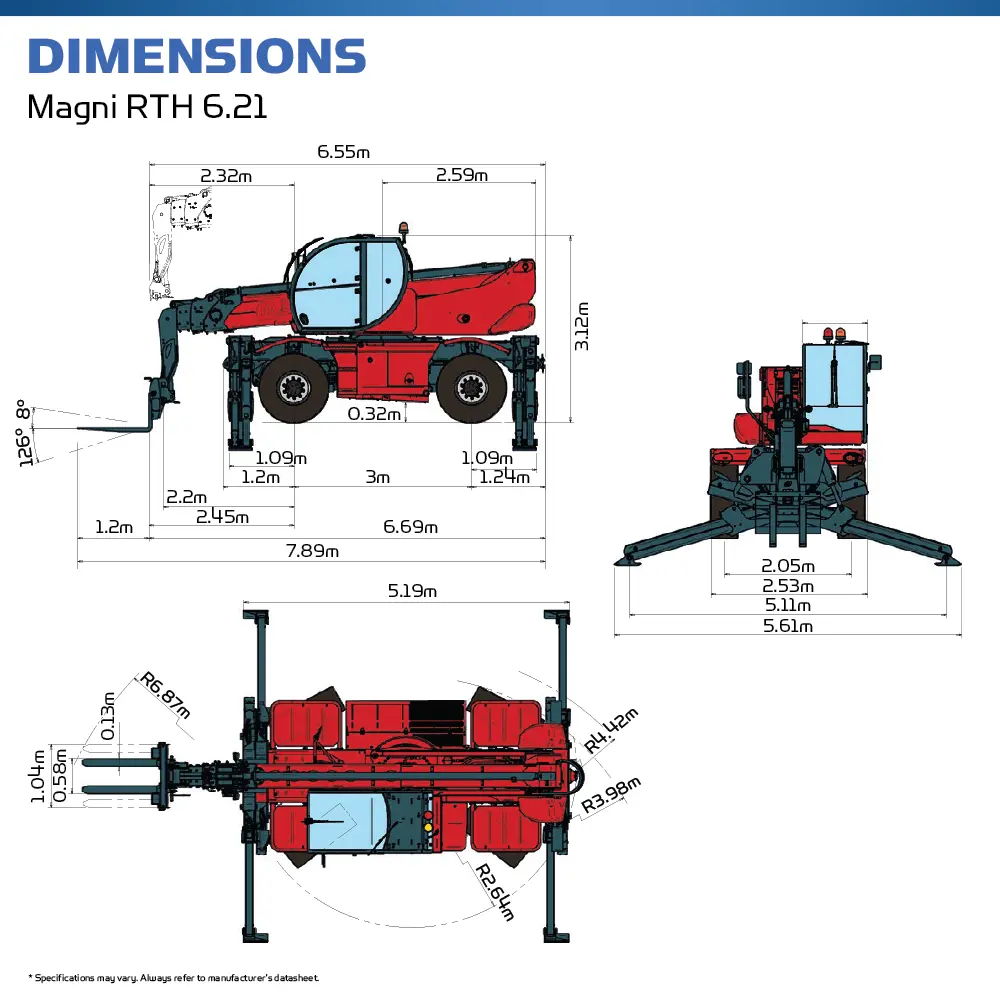

Machine Length
Machine Length
6.69m / 22ft
Machine Width
Machine Width
2.53m / 8ft 4in
Machine Height
Machine Height
3.12m / 10ft 3in
Power Options
Power Options
Diesel
Gradeability
Gradeability
41%
Cage Rotation
Cage Rotation
360 degrees

Interested in hiring a Magni RTH 6.21?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

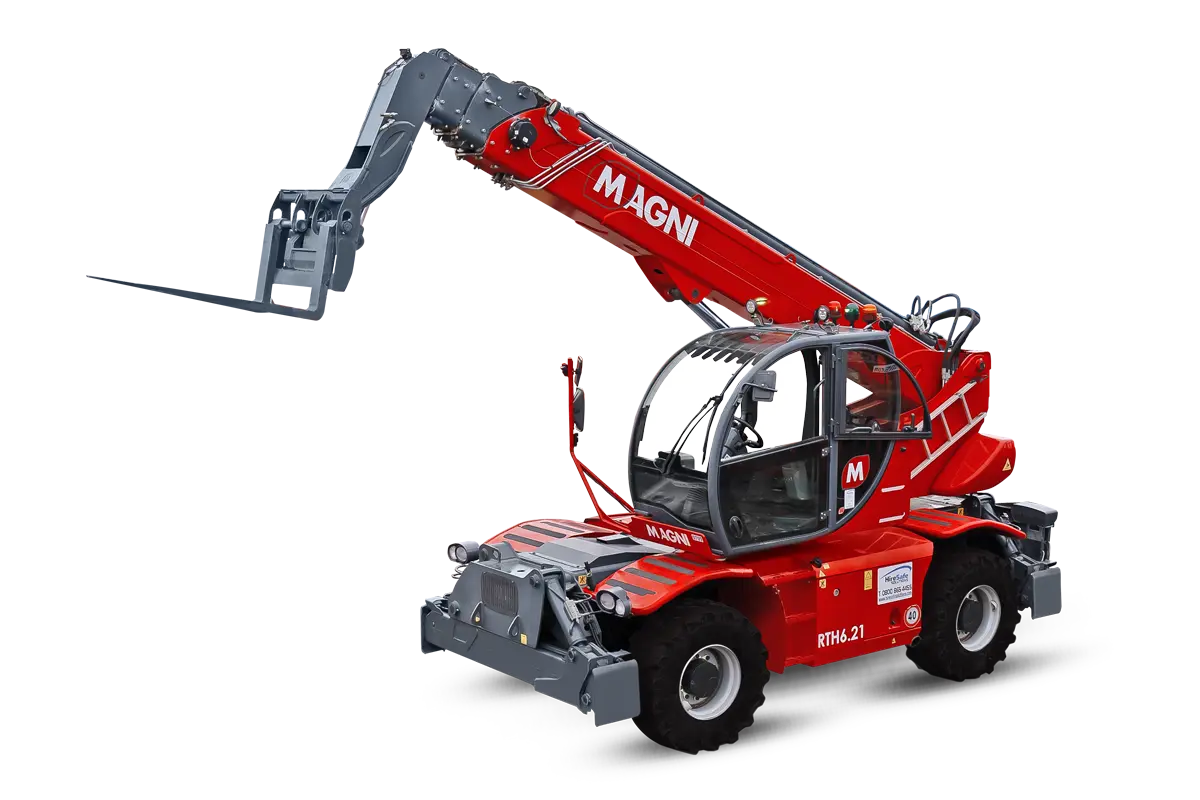

Magni RTH 6.21 Rotating Telehandler

The Magni RTH 6.21 Rotating Telehandler is a simple yet high-performance rotating telescopic handler. It can lift loads up to a height of 21m, and is equipped with scissor stabilisers to ensure greater stability and flexibility during working maneuvers. The scissor stabilisers are ideal even with limited space available, and when the machine is only partially stabilised, it is programmed to provide the best possible load chart on each side and when they are fully extended, guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base.

The Magni RTH 6.21 is also compatible with a huge range of accessories, thanks to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts. This telescopic handler is able to meet a wide range of applications in construction and industry.

Key Features of the Magni RTH 6.21

  • Maximum lifting height: 20.8m
  • Maximum reach: 17.4m
  • Electronically controlled
  • Hydrostatic transmission
  • Automatic levelling device
  • Scissors Stabilisers

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.
