Sinoboom VM05EL

Sinoboom VM05EL

Sinoboom VM05EL

Specification

Make
Make
Sinoboom
Model
Model
VM05EL
Working Height
Working Height
6.9m / 22ft 8in
Platform Height
Platform Height
4.9m / 16ft 1in
Min Weight
Min Weight
970.00kg / 2,144lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs

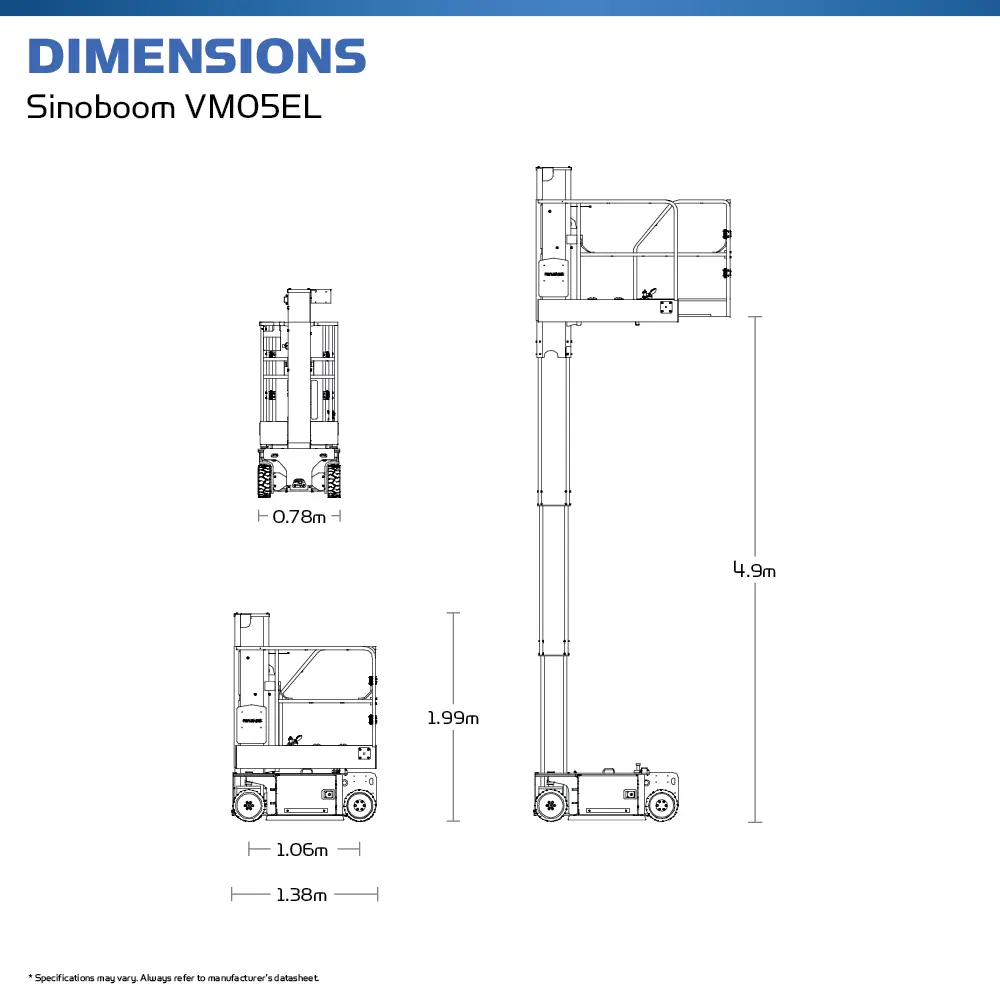

Machine Length
Machine Length
1.38m / 4ft 7in
Machine Width
Machine Width
0.78m / 2ft 7in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
1.34m / 4ft 5in
Gradeability
Gradeability
25%

Interested in hiring a Sinoboom VM05EL?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Sinoboom VM05EL - Electric Vertical Mast Lift

The Sinoboom VM05EL is a 6.9m electric vertical mast lift, ideal for both indoor and outdoor light construction work. It features front wheel drive, an impressively small turning radius and a platform capacity of 227kg. The machine is equipped with solid non-marking tyres and weighs just 970kg, making it an ideal choice for work on sensitive flooring. It has excellent manoeuvrability in very narrow spaces thanks to its ultra-compact dimensions of 1.38m (L) x 0.78m (W) x 1.99m (H). This, in combination with its low weight means the VM05EL can be transported inside standard lifts, opening up the possibilities of where the machine can be used on site.

Its saloon style entry gate provides ease of entry onto the working platform plus a three-stage hydraulic cylinder ensures you benefit from smooth, reliable lifting. Automatic pothole protection comes fitted as standard and a pin-type weight sensor ensures accurate load weighing unaffected by environmental factors.

In addition to its 1.34m (L) x 0.74m (W) platform, the VM05EL also features a 0.51m extending deck capable of lifting up to 113kg. Lift and lower time both take under 28 seconds ensuring maximum efficient on site.

Key Features of the Sinoboom VM05EL

  • Drivable at full height
  • 2WD×2WS
  • AGM maintenance-free battery
  • Solid non-marking tyres
  • Proportional control
  • Tilt protection system
  • Overload sensing system
  • Automatic pothole protection
  • Auto braking system



Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK and ROI.



Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Mast Boom Lifts here.

  • Plant maintenance
  • Ductwork
  • Stock-picking
  • Warehousing
  • Inventory management
  • General contracting
  • General maintenance
  • Shelving
  • Around assembly lines

The Sinoboom VM05EL can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Sinoboom VM05EL comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Deck Extension - MB

Deck Extension - MB
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
