Skyjack SJ16

Skyjack SJ16

Skyjack SJ16

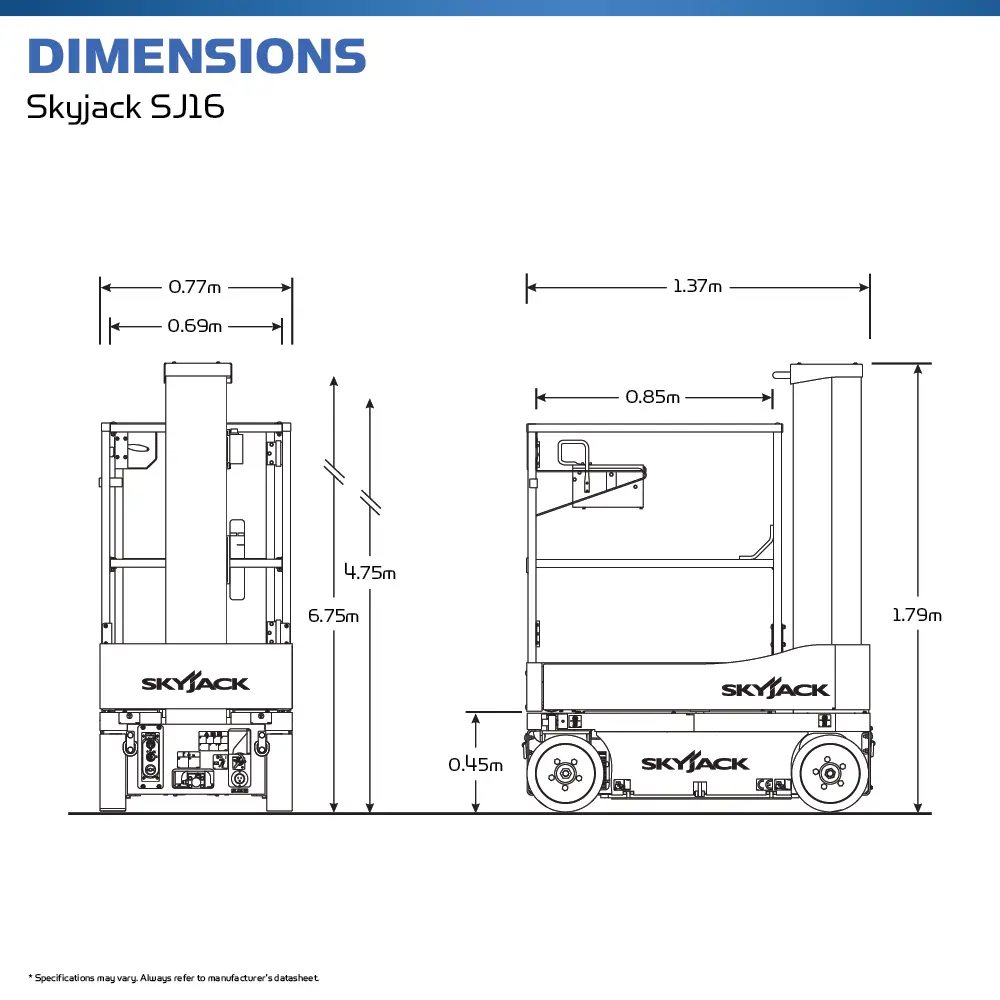

Specification

Make
Make
Skyjack
Model
Model
SJ16
Working Height
Working Height
6.75m / 22ft 2in
Platform Height
Platform Height
4.75m / 15ft 8in
Min Weight
Min Weight
971.00kg / 2,146lbs
Safe Working Load
Safe Working Load
227.00kg / 502lbs
Machine Length
Machine Length
1.37m / 4ft 6in
Machine Width
Machine Width
0.77m / 2ft 7in
Machine Height
Machine Height
1.79m / 5ft 11in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
30%

Interested in hiring a Skyjack SJ16?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

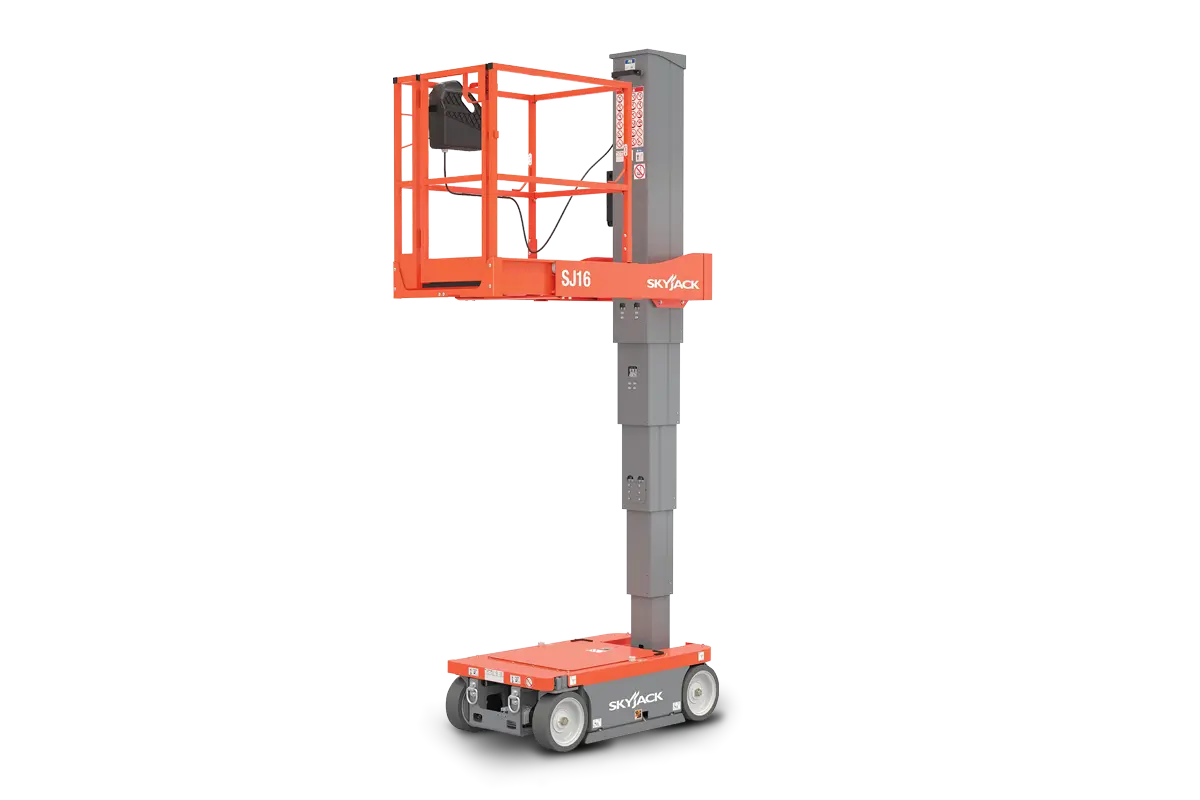

Skyjack SJ16 Vertical Mast Lift

The Skyjack SJ16 is an electric-powered Vertical Mast Lift with compact dimensions, zero emissions and a small footprint. It is ideal for elevating a single user and their tools to a working height of 6.75m with the ability to easily fit inside elevators thanks to its 90-degree steering and zero inside turning radius.

The platform measures 0.85m in length x 0.69m in width and can be extended an additional 0.41m thanks to its slide out extending deck. It can be driven at full height and offers superior manoeuvrability when operating in tight work spaces. Solid rubber, non-marking tyres come fitted as standard and paired with its low weight of just 971kg, make the SJ16 a perfect choice for working on sensitive flooring such as in shopping centres, showrooms and more.



Key Features of the Skyjack SJ16

  • Drivable at full height with platform retracted
  • Variable speed, front two wheel hydraulic drive
  • 90° Steering (zero inside turning radius)
  • Dual holding brakes
  • Proportional controls for drive and lift functions
  • 0.41m Traversing platform
  • 24V DC Power source
  • 30% Gradeability
  • Pothole protection system
  • Lanyard attachment points
  • Full height spring hinged gate

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)



Available to hire, lease or buy from Hire Safe Solutions in the UK and ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Mast Boom Lifts here.

  • Plant maintenance
  • Ductwork
  • Stock-picking
  • Warehousing
  • Inventory management
  • General contracting
  • General maintenance
  • Shelving
  • Around assembly lines

The Skyjack SJ16 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Skyjack SJ16 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Deck Extension - MB

Deck Extension - MB
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
