JLG Toucan 1310

JLG Toucan 1310

JLG Toucan 1310

Specification

Make
Make
JLG
Model
Model
Toucan 1310
Working Height
Working Height
13m / 42ft 8in
Platform Height
Platform Height
11m / 36ft 2in
Maximum Outreach
Maximum Outreach
5.22m / 17ft 2in
Min Weight
Min Weight
5,600.00kg / 12,376lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

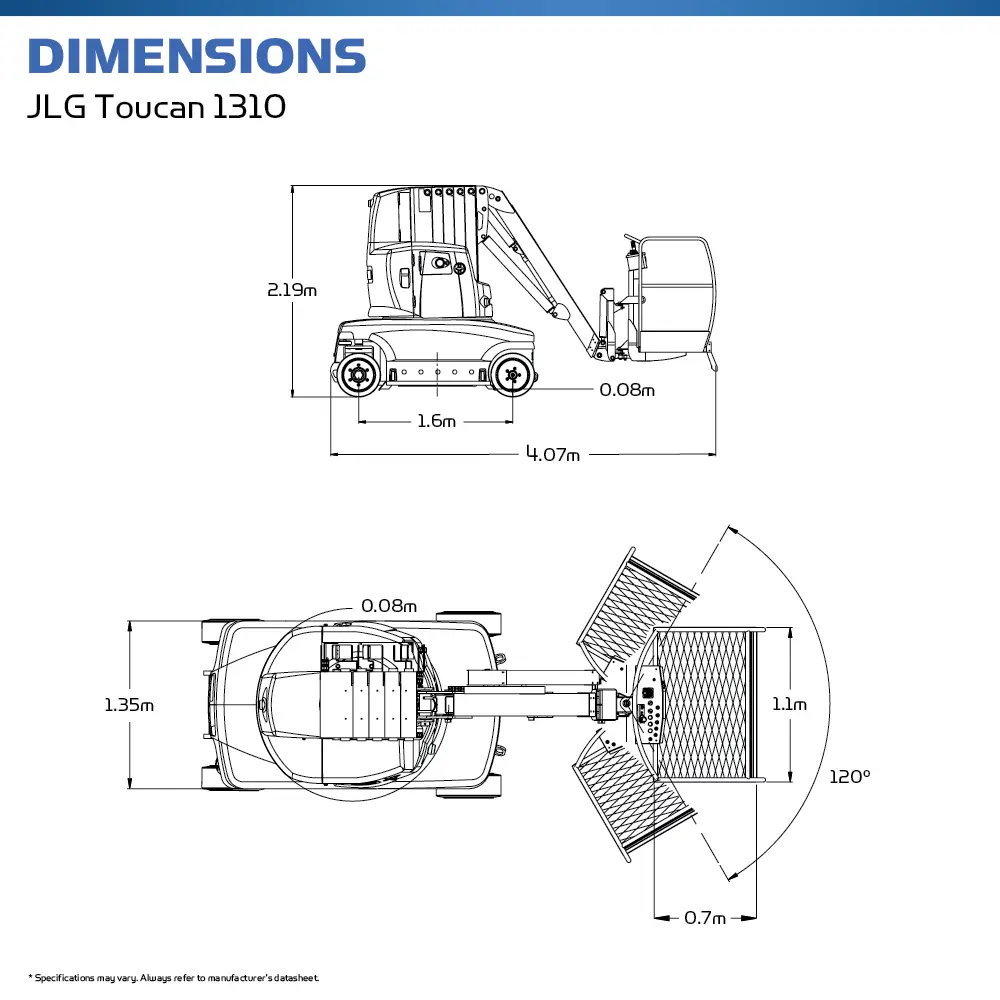

Machine Length
Machine Length
4.07m / 13ft 5in
Machine Width
Machine Width
1.35m / 4ft 6in
Machine Height
Machine Height
2.19m / 7ft 3in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
2.15m / 7ft 1in
Gradeability
Gradeability
20%

Interested in hiring a JLG Toucan 1310?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

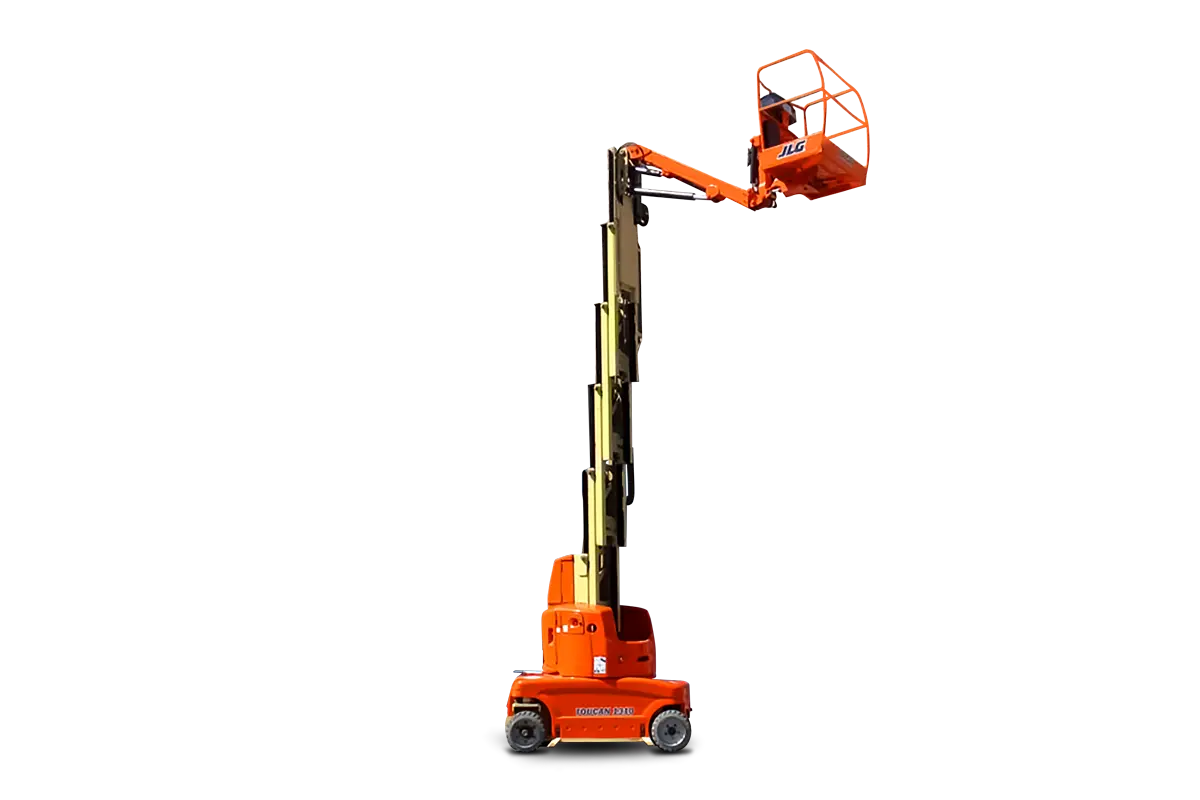

JLG Toucan 1310 Mast Boom

The JLG Toucan 1310 MEWP is the largest MEWP of this type with an impressive working height of 13m and an outreach of 5.22m. Its telescopic jib and powered rotating platform provide increased versatility for the operator. This machine is equipped with a full-traction battery pack which contribute to longer duty cycles whilst the proportional drive and variable speed controls assist in job site positioning.

Other benefits of this machine also include its lightweight and compact dimensions which make it ideal for internal and factory maintenance with hard to reach restricted areas. The JLG Toucan 1310 can be used for stock picking as well as general warehouse requirements.

Key Features of the JLG Toucan 1310

  • 1.1m x 0.7m (W x L) steel platform
  • Slide bar rear entry
  • Full proportional drive joystick control with integral thumb steer switch
  • Variable speed dial control for lift/lower, slewing and jib (where applicable)
  • Selectable high / low drive speed
  • Telescopic and articulating jib
  • 120 degree powered platform rotator 1
  • Function enable and malfunction warning lights
  • Load sensing system
  • Two Wheel Hydraulic Drive
  • Power plus drive 1
  • 24V 930 A/hr full traction batteries
  • On-board 230V battery charger
  • Powered battery fill
  • Auto power save when idle
  • Low charge function cut-out
  • Selectable posi-trac
  • Automatic rear wheel brakes
  • Sculptured polyester hoods

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Mast Boom Lifts here.

  • Building and factory maintenance
  • Facilities management
  • Mechanical engineering
  • Stock taking

The JLG Toucan 1310 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The JLG Toucan 1310 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Mast Boom Jib

Mast Boom Jib
Non-Marking Tyres

Non-Marking Tyres

Interested in hiring a JLG Toucan 1310?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
