JLG Toucan 1210

JLG Toucan 1210

JLG Toucan 1210

Specification

Make
Make
JLG
Model
Model
Toucan 1210
Working Height
Working Height
12m / 39ft 5in
Platform Height
Platform Height
10m / 32ft 10in
Maximum Outreach
Maximum Outreach
5m / 16ft 5in
Min Weight
Min Weight
5,200.00kg / 11,492lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

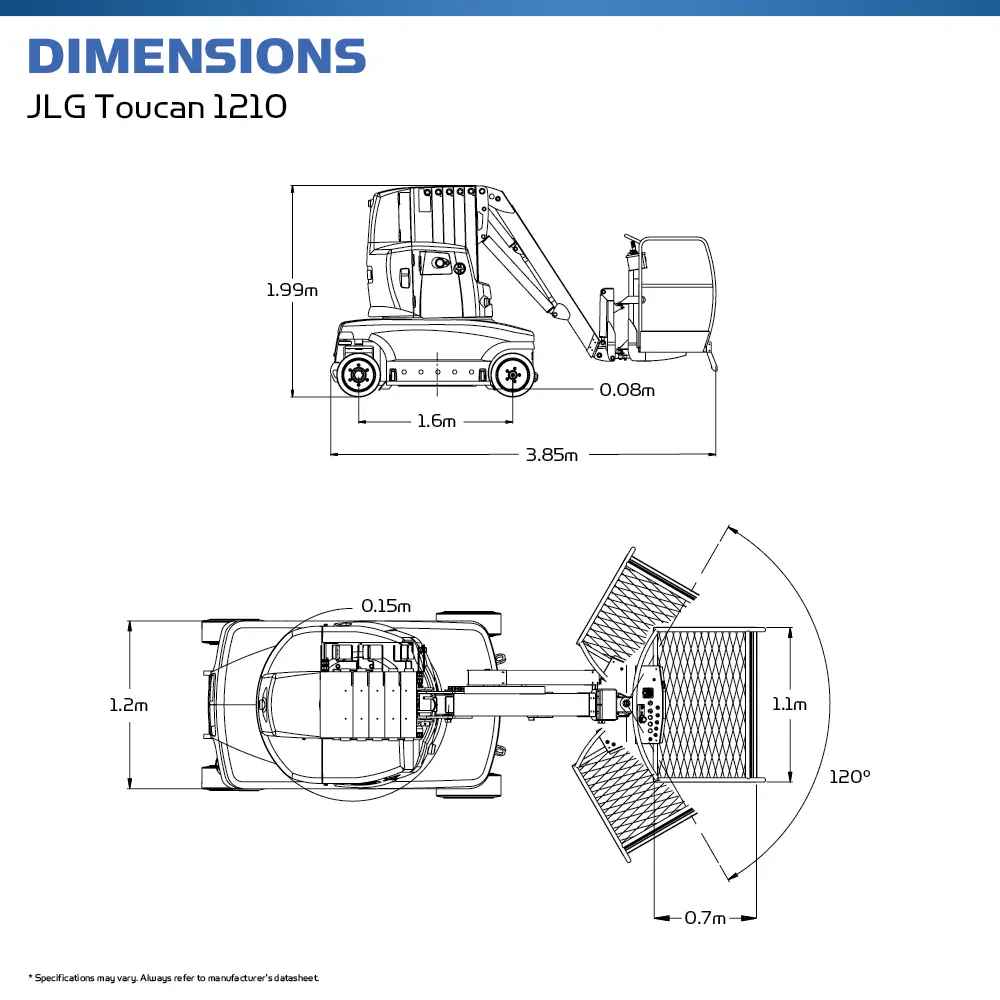

Machine Length
Machine Length
3.85m / 12ft 8in
Machine Width
Machine Width
1.2m / 4ft
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Battery
Turning Radius
Turning Radius
1.53m / 5ft 1in
Gradeability
Gradeability
12%
Cage Rotation
Cage Rotation
N/A

Interested in hiring a JLG Toucan 1210?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

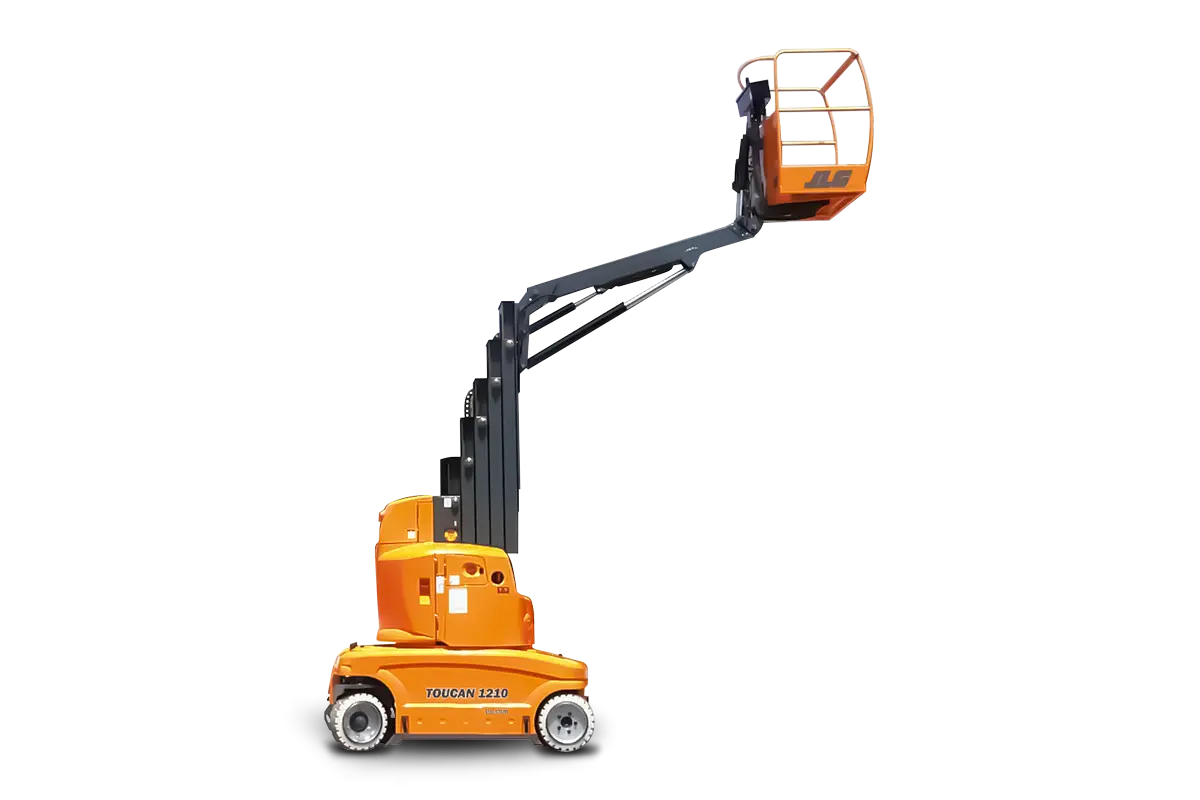

JLG Toucan 1210 Mast Boom

The JLG Toucan 1210 is a rotating steel-roller vertical mast with a jib that lets you reach into spaces denied to other lifts. The telescopic jib and powered rotating platform from this machine also provides increased versatility for the operator.

The narrow and compact dimensions of the JLG Toucan 1210, plus its lightweight factor make it ideal for internal, factory and warehouse maintenance as well as everyday procedures. Not only this, but it is equipped with a full-traction battery pack which contributes to longer duty cycles.

Key Features of the JLG Toucan 1210

  • 1.1m x 0.7m (W x L) steel platform
  • Slide bar rear entry
  • Full proportional drive joystick control with integral thumb steer switch
  • Variable speed dial control for lift/lower, slewing and jib (where applicable)
  • Selectable high / low drive speed
  • Telescopic and articulating jib
  • Function enable and malfunction warning lights
  • Load sensing system
  • Two Wheel Hydraulic Drive
  • 24V 620 A/hr full traction batteries
  • On-board 110V/230V battery charger
  • Powered battery fill
  • Auto power save when idle
  • Low charge function cut-out
  • Selectable posi-trac
  • Automatic rear wheel brakes
  • Sculptured polyester hoods

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Mast Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • Facilities management
  • Mechanical engineering

The JLG Toucan 1210 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The JLG Toucan 1210 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Mast Boom Jib

Mast Boom Jib
Non-Marking Tyres

Non-Marking Tyres
