Zoomlion ZA24J

Zoomlion ZA24J

Zoomlion ZA24J

Specification

Make
Make
Zoomlion
Model
Model
ZA24J
Working Height
Working Height
26.23m / 86ft 1in
Platform Height
Platform Height
24.23m / 79ft 6in
Maximum Outreach
Maximum Outreach
18.9m / 62ft 1in
Min Weight
Min Weight
18,140.00kg / 40,089lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs
Machine Length
Machine Length
11.27m / 37ft
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
2.82m / 9ft 4in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.48m / 21ft 4in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Zoomlion ZA24J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

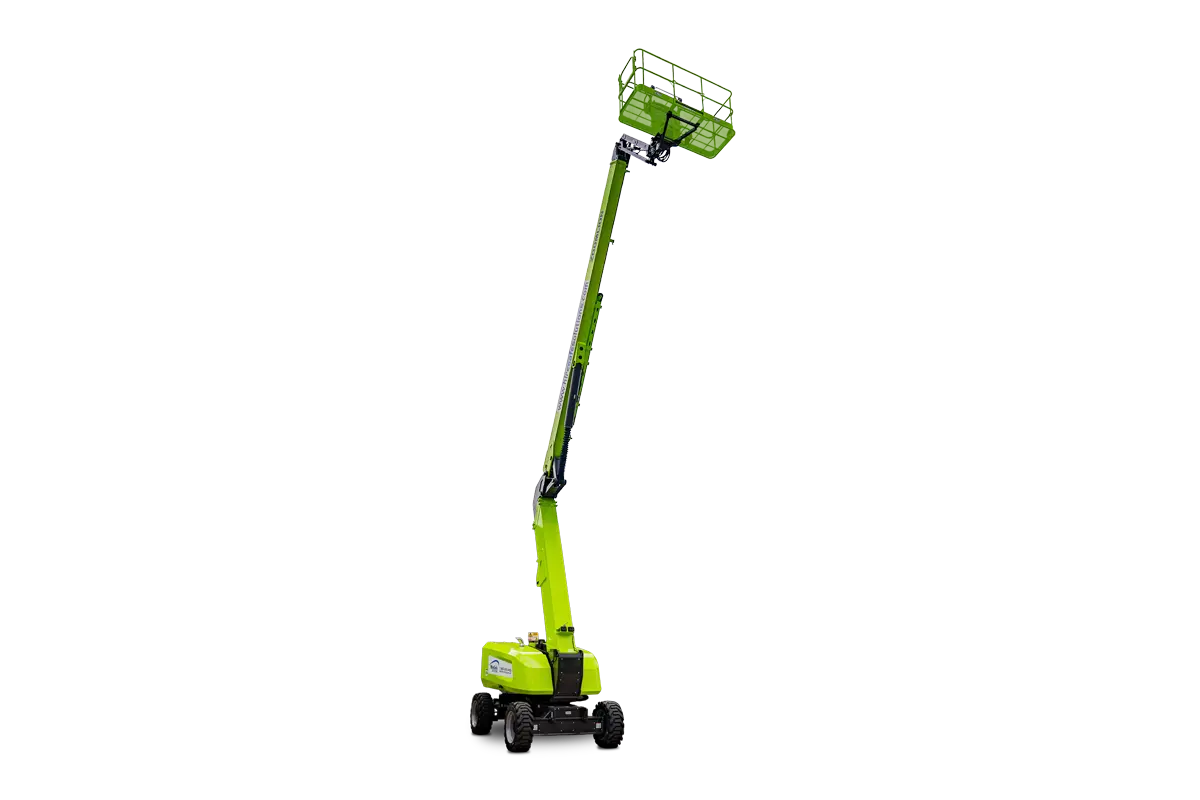

Zoomlion ZA24J Diesel Articulated Boom Lift

The Zoomlion ZA24J Diesel Articulated Boom Lift provides an impressive working height of 26.23m, a horizontal outreach of 18.9m, and an up-and-over clearance of 9.29m.

It offers a lift capacity of 250kg and is fitted with a spacious platform basket measuring 2.44m x 0.91m, enabling multiple occupants to work safely, and ensuring greater operational efficiency at height.

As with all Zoomlion products, the built-in multi-pressure control levelling system enhances stability during use by preventing any overloading conditions. The platform’s fast-lifting function enables highly efficient performance without the need for tower boom operation. Additionally, it offers an impressive below-ground reach of 5.1m.

The ZA24J offers 360° continuous turntable rotation and 180° platform rotation, allowing it to be precisely positioned with ease.



Key Features of the Zoomlion ZA24J

  • 26.23m Working Height
  • 24.23m Horizontal Reach
  • 9.29m Up and Over Height
  • 5.1m Below-Ground Reach
  • Horn
  • All motion alarm
  • Proportional control
  • Self-closing entry gate
  • Flashing beacon
  • Auto-leveling system
  • Emergency stop button
  • Over tilt protection system
  • Emergency descent system
  • Oscillating axle
  • 4.3' LED display
  • Load sensing system
  • Rough-terrain tyres

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work
  • Racking & Warehousing

The Zoomlion ZA24J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Chalwyn Valves

Chalwyn Valves
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Wheel Covers

Wheel Covers

The Zoomlion ZA24J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Stage V Engine

Stage V Engine
Four Wheel Drive

Four Wheel Drive
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Oscillating Axles

Oscillating Axles
360° Continuous Rotation

360° Continuous Rotation
Large Basket

Large Basket
