LGMG AR24J

LGMG AR24J

LGMG AR24J

Specification

Make
Make
LGMG
Model
Model
AR24J
Working Height
Working Height
26.6m / 87ft 4in
Platform Height
Platform Height
24.6m / 80ft 9in
Maximum Outreach
Maximum Outreach
18m / 59ft 1in
Min Weight
Min Weight
17,300.00kg / 38,233lbs
Safe Working Load
Safe Working Load
350.00kg / 774lbs

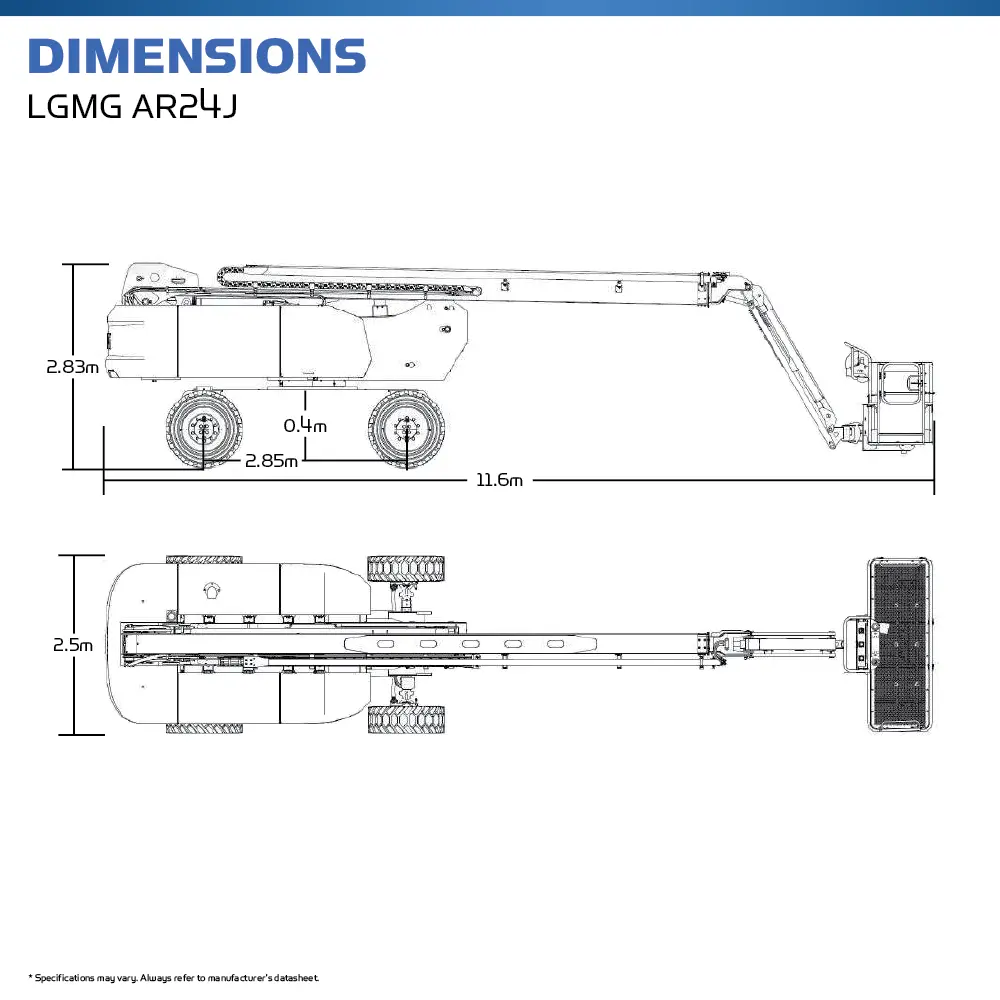

Machine Length
Machine Length
11.6m / 38ft 1in
Machine Width
Machine Width
2.5m / 8ft 3in
Machine Height
Machine Height
2.83m / 9ft 4in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
4.13m / 13ft 7in
Gradeability
Gradeability
45%

Interested in hiring a LGMG AR24J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

LGMG AR24J - Diesel Articulated Boom Lift

The LGMG AR24J Diesel Articulated Boom Lift features a 26.6m working height, 18m horizontal outreach and dual lift capacities of 250kg/350kg, making it extremely versatile when working in a range of industries. It comes equipped with a powerful diesel engine, rough terrain tyres and four-wheel drive, making it perfect for use on muddy construction sites and challenging terrains. With three steering modes (front-wheel, crab, and four-wheel), it can manoeuvre precisely in narrow or confined spaces. Features like an axle-integrated four-wheel drive and oscillating axle ensure stability and safety, even on demanding worksites.

The LGMG AR24J is a solid, reliable choice for various working at height tasks including construction, maintenance or repair work on large-scale industrial facilities, such as factories, power and chemical plants to name but a few. Its articulating boom and "up and over" capability is perfect for gaining access over obstacles. Measuring 2.44m x 0.90m, the stable platform on the LGMG AR24J provides ample room for up to 3 occupants at once, making it ideal for tasks such as cleaning, painting, and general maintenance at height where multiple workers are required.

Key Features of the LGMG AR24J

  • Axle-integrated four-wheel drive system, with strong power and smooth transmission
  • Three steering modes: front-wheel, crab and four wheel steering, to meet the demand of operations in narrow space
  • Realize all-round aerial working through booms compound action
  • Full time floating to ensure driving safety
  • Higher anti-torsional strength frame to satisfy container transportation conditions
  • Proportional control
  • Full-height drive
  • Oscillating axle
  • Platform tool box
  • Telematics
  • Auto-levelling platform
  • Anti-collision protection
  • Over tilt protection system
  • Platform control cover
  • Overload sensing system
  • Intelligent diagnostic system
  • Foam-filled rough terrain tyres

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

Construction: Ideal for exterior building construction, scaffolding, and accessing high or awkward spots that are unreachable from the ground
Industrial: Suitable for maintenance and repair work on large-scale industrial facilities, such as factories, power plants, and chemical plants
Overhead access: Its articulating boom and “up and over” capability are perfect for gaining access over obstacles like parked vehicles, machinery, or other structures
Maintenance: Provides a stable platform for tasks like cleaning, painting, and general maintenance at heights on exterior structures
Rough terrain: The all-wheel drive and oscillating axles allow for better traction and stability on uneven or rough ground, common at construction or industrial sites

The LGMG AR24J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Spark Arrestors

Spark Arrestors
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The LGMG AR24J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Stage V Engine

Stage V Engine
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Rough Terrain Tyres

Rough Terrain Tyres
Power to Platform

Power to Platform
Four-Wheel Steering

Four-Wheel Steering
Crab Steering

Crab Steering
