JLG EC600SJ

JLG EC600SJ

JLG EC600SJ

Specification

Make
Make
JLG
Model
Model
EC600SJ
Working Height
Working Height
20.36m / 66ft 10in
Platform Height
Platform Height
18.36m / 60ft 3in
Maximum Outreach
Maximum Outreach
13.84m / 45ft 5in
Min Weight
Min Weight
7,765.00kg / 17,161lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

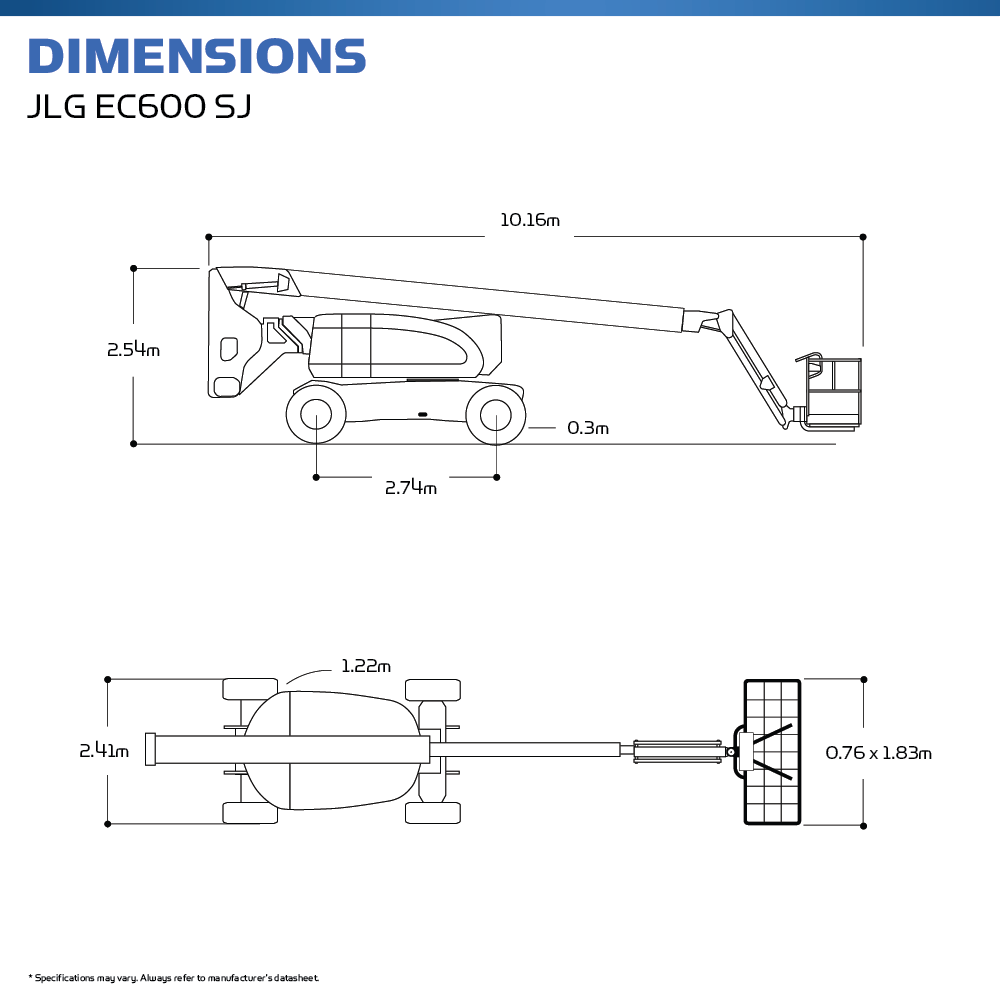

Machine Length
Machine Length
9.37m / 30ft 9in
Machine Width
Machine Width
2.42m / 8ft
Machine Height
Machine Height
2.54m / 8ft 5in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
4.64m / 15ft 3in
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a JLG EC600SJ?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

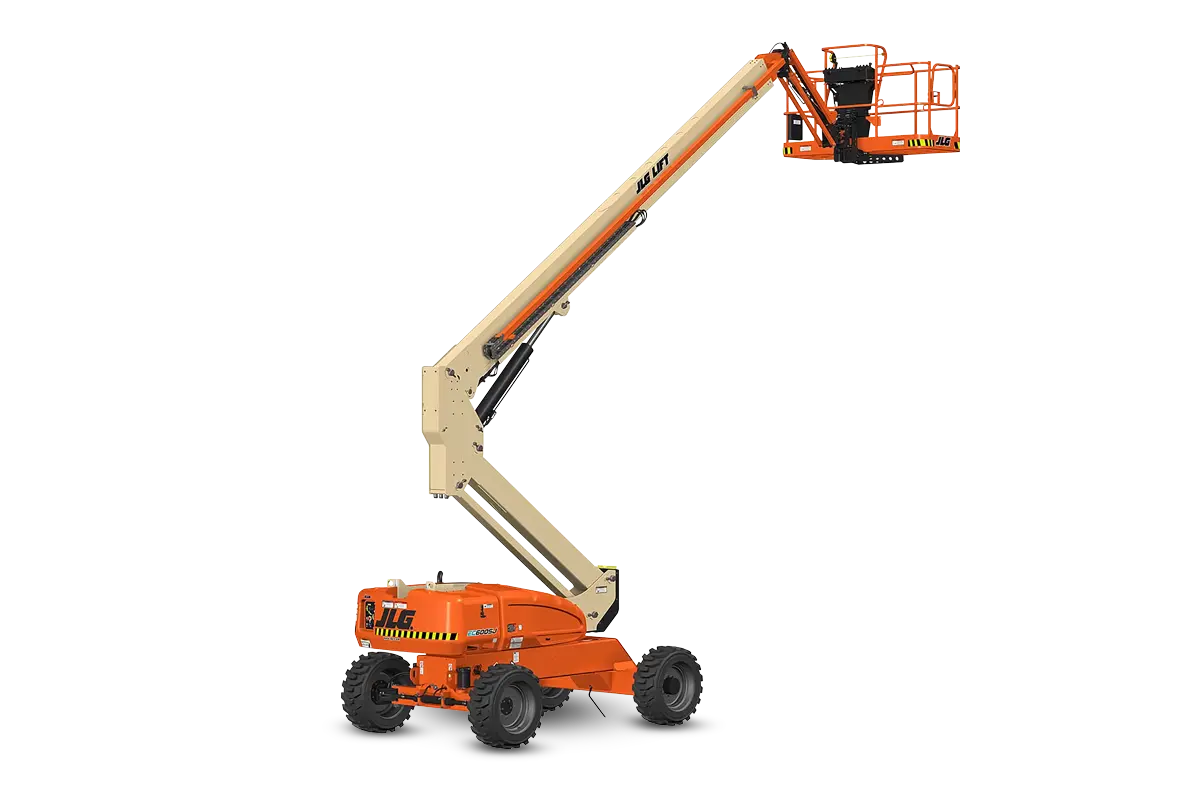

JLG EC600SJ- Electric Cherry Picker

The JLG EC600SJ is an electric cherry picker offering a 20.36m working height and a 13.84m outreach. This MEWP is environmentally friendly, offering zero emissions and reduced noise as well as non-marking rough terrain tyres as standard. The JLG EC600SJ also comes equipped with a longer duty cycle battery which offers excellent productivity.

Key Features of the JLG EC600SJ

  • 0.76m x 1.83m low mount platform
  • Full proportional drive joystick control
  • 1.22m articulating jib
  • 180 degree platform rotation
  • AC 110V power to platform
  • Two Wheel Direct Electric Drive with longer duty cycles for increased productivity
  • Largest electric drive booms in the industry, offering 20m working heights
  • Increased accessibility with the optional JibPLUS® with side-to-side movement and near-vertical jib operation
  • Zero emissions, reduced noise and standard non-marking tyres for environmentally-friendly equipment
  • Standard Automatic Traction Control and oscillating axle for increased manoeuvrability and outstanding terrain performance
  • High-efficiency direct electric drive with longer duty cycles for increased productivity

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • Building and factory maintenance
  • Upper floor levels
  • Facilities management
  • Mechanical engineering

The JLG EC600SJ can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The JLG EC600SJ comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Rough Terrain Tyres

Non-Marking Rough Terrain Tyres
Power to Platform

Power to Platform

Interested in hiring a JLG EC600SJ?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
