Dingli BA28RT

Dingli BA28RT

Dingli BA28RT

Specification

Make
Make
Dingli
Model
Model
BA28RT
Working Height
Working Height
28.1m / 92ft 3in
Platform Height
Platform Height
26.1m / 85ft 8in

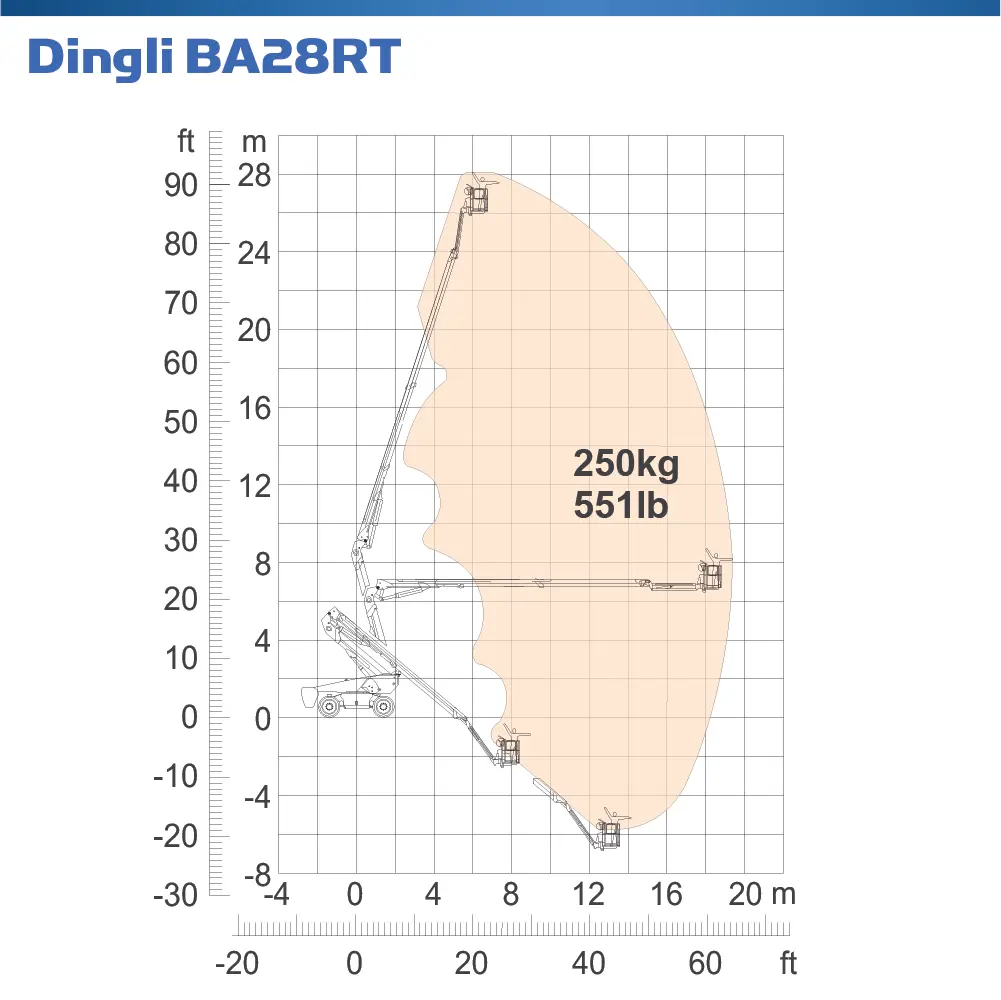

Maximum Outreach
Maximum Outreach
18.8m / 61ft 9in
Min Weight
Min Weight
18,300.00kg / 40,443lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs

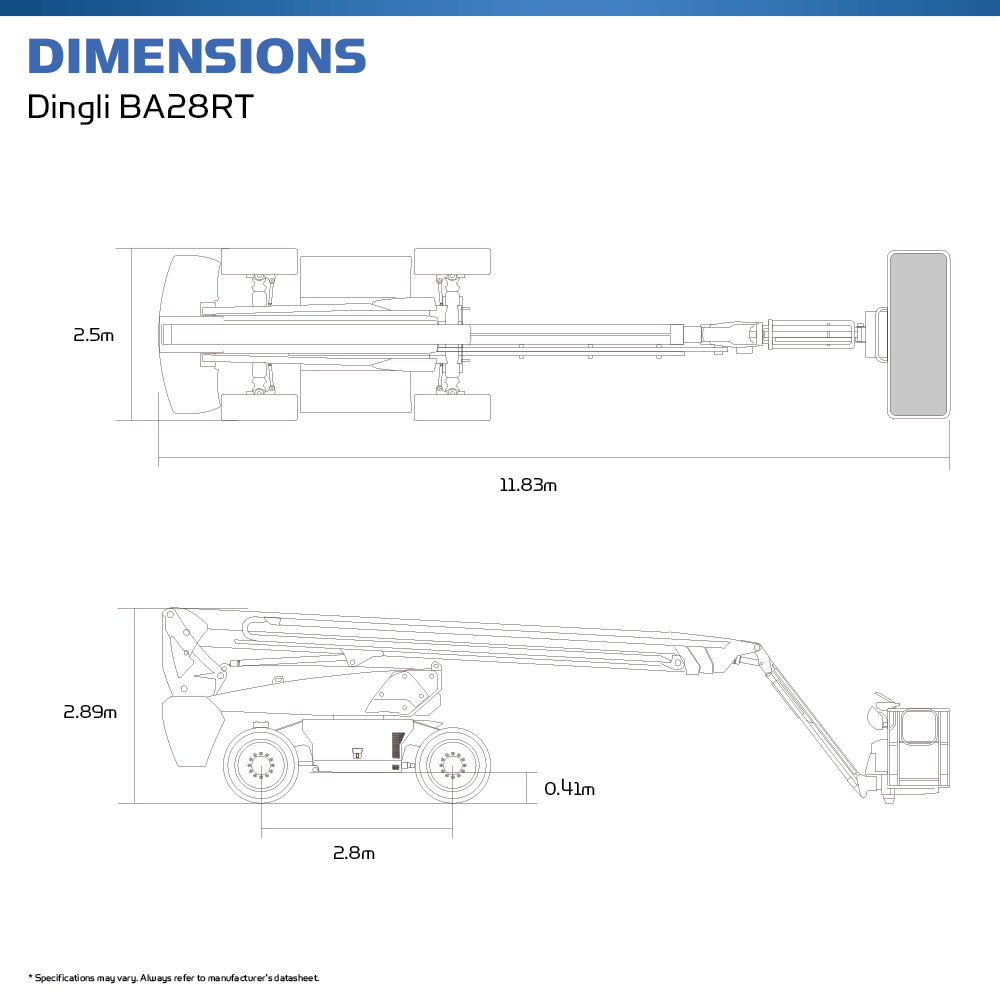

Machine Length
Machine Length
11.83m / 38ft 10in
Machine Width
Machine Width
2.5m / 8ft 3in
Machine Height
Machine Height
2.89m / 9ft 6in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
1.87m / 6ft 2in
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Dingli BA28RT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

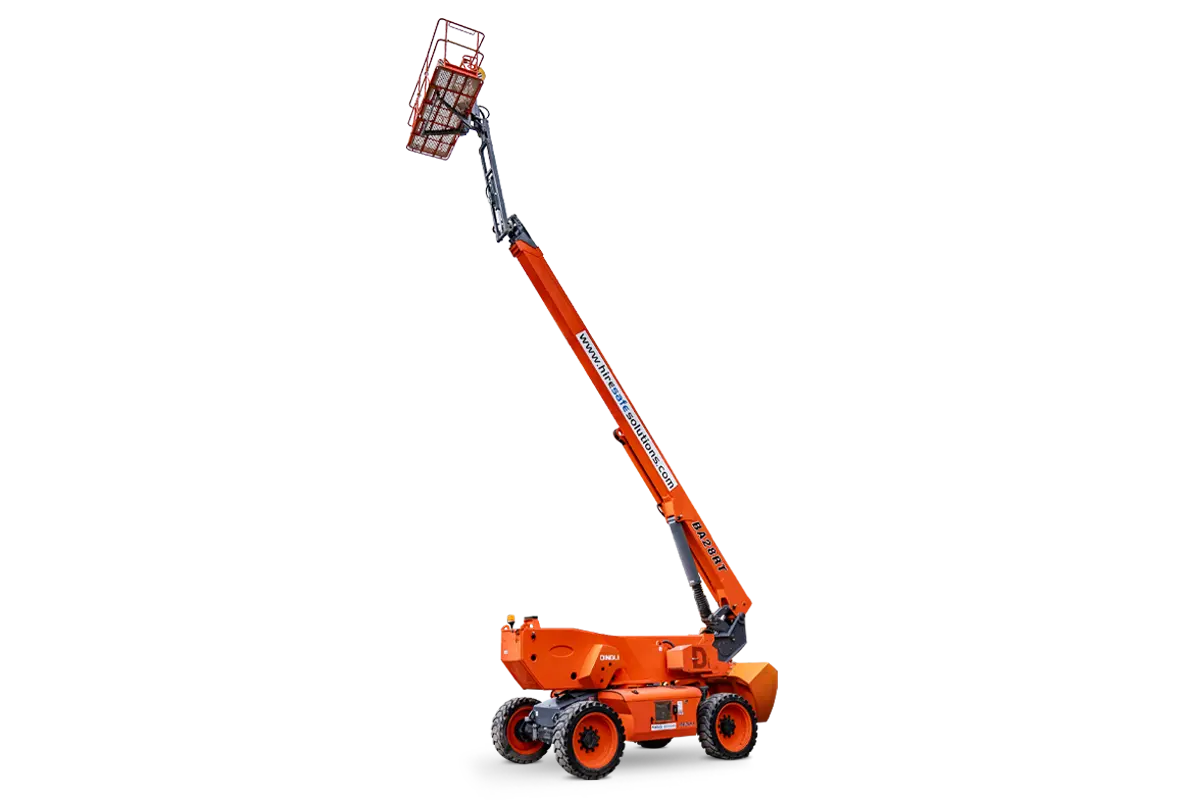

Dingli BA28RT Articulated Cherry Picker

When you need to reach a higher level, and work efficiently, the Dingli BA28RT - 28.10m Diesel Articulated Cherry Picker should be one of your most considered machines to use. It will send you to a new height, and help you confidently deal with challenges.

From the latest rise and fall technology, to the service, spare parts and technical support, Dingli will make sure that you can have all you need and finish the work smoothly. This machine is also equipped with a platform anti-extrusion device, which offers start stop protection when extrusion occurs.

Key Features:

  • Equipped with 55.4kw high power engine, gradeability up to 45%.
  • Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance;
  • Below ground reachable, large range of horizontal outreach;

The Dingli BA28RT - 28.10m Diesel Articulated Cherry Picker is available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Looking for more cherry pickers? Explore our full range here to find the perfect Cherry Picker for your operations.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Recommended training course for this platform:  IPAF Category: Mobile Boom (3b)

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The Dingli BA28RT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Dingli BA28RT comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Crab Steering

Crab Steering
Four-Wheel Steering

Four-Wheel Steering
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
