JCB 535-140

JCB 535-140

JCB 535-140

Specification

Make
Make
JCB
Model
Model
535-140
Lifting Height
Lifting Height
13.8m / 45ft 4in
Maximum Outreach
Maximum Outreach
9.52m / 31ft 3in
Lifting Capacity
Lifting Capacity
3,500.00kg / 7,735lbs

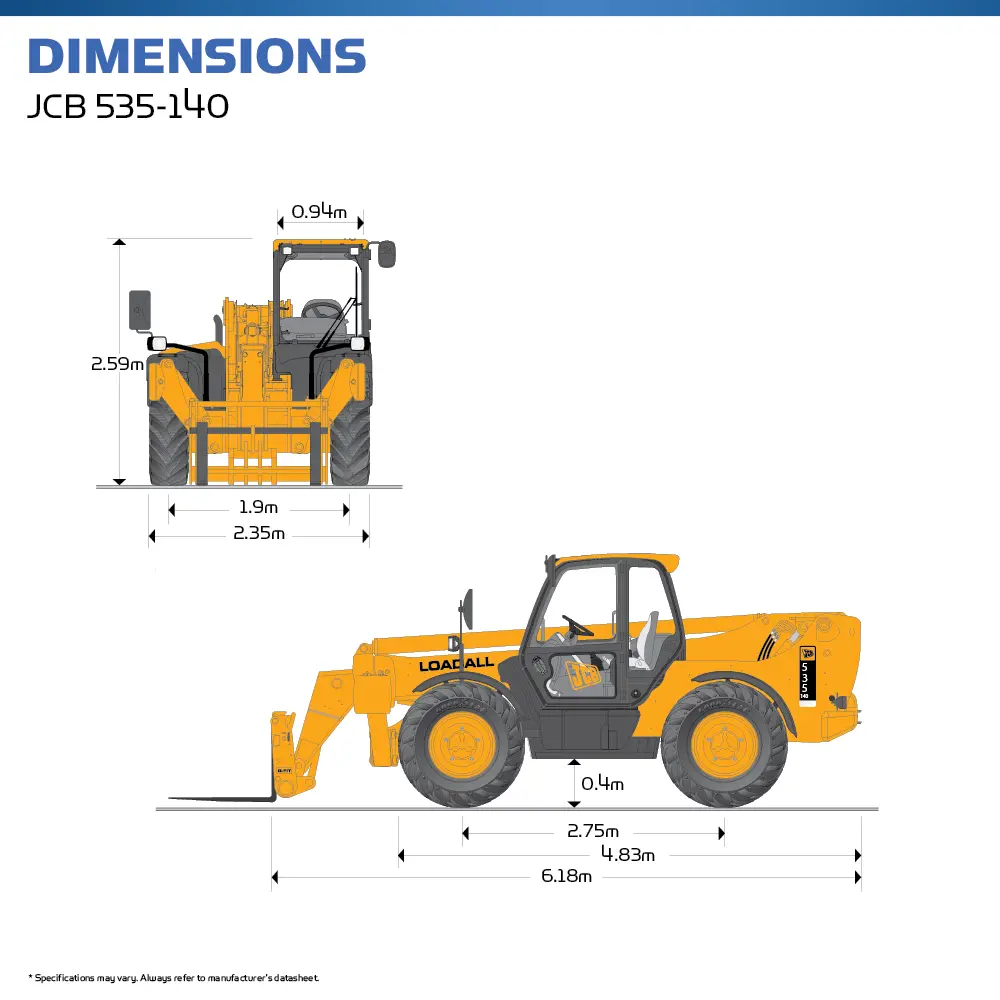

Machine Length
Machine Length
6.18m / 20ft 4in
Machine Width
Machine Width
2.35m / 7ft 9in
Machine Height
Machine Height
2.59m / 8ft 6in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
4m / 13ft 2in

Interested in hiring a JCB 535-140?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

JCB 535-140 - Telescopic Forklifts

Main Details

The JCB 535-140 Hi Viz loadall has class-leading comfort due to its spacious, safe, side-entry cab and offers new levels of visibility with a three-quarter view to the rear of the machine. This is a result of the lowered boom pivot, increasing visibility by 10% when compared with other models. This not only makes the job easier and the platform simpler to operate, but also increases on-site health and safety as operators have clearer views of obstacles.

The MEWP itself is a full size 4-stage loadall with a massive reach that offers excellent access to a wide range of areas. Combined with the highly efficient Diesel Max engine, this platform is one of the cleanest on the market.

The machine also comes equipped with a fully adjustable suspension seat and steering column, mobile phone holder, intelligently placed air vents, and ergonomic controls on the front console. Controls on the JCB 535-140 Hi Viz telehandler are intelligently grouped for instinctive use, with hydraulic, transmission and stabiliser controls laid out for quick, safe and precise operation.

Another benefit of the 535-140 is that all daily checks, maintenance, and greasing can be carried out quickly at ground level. The design of the platform means that the engine oil, hydraulic and fuel filters are centrally located for the convenience of operators. In addition, the air filter is also easily accessible and quick to clean.

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

JCB 535-140 Ideal Applications:

  • General building maintenance
  • General construction
  • Steel erection

Benefits of the JCB 535-140:

  • JCB Loadall can provide fuel-efficient matching of transmission and hydraulics
  • 4 wheel drive as standard
  • Parallel lift capability for excellent load retention
  • Designed to maximise uptime and productivity
  • A compact wheelbase, large steering lock angled, individual wheel motors, and selectable steer modes combine to save you time and improve overall performance and efficiency
  • JCB’s SmoothRide System (SRS) for enhanced operator comfort

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.
