LGMG T26J

LGMG T26J

LGMG T26J

Specification

Make
Make
LGMG
Model
Model
T26J
Working Height
Working Height
27.9m / 91ft 7in
Platform Height
Platform Height
25.9m / 85ft
Maximum Outreach
Maximum Outreach
23.32m / 76ft 7in
Min Weight
Min Weight
18,000.00kg / 39,780lbs
Safe Working Load
Safe Working Load
340.00kg / 751lbs
Machine Length
Machine Length
12.6m / 41ft 5in
Machine Width
Machine Width
2.5m / 8ft 3in
Machine Height
Machine Height
2.86m / 9ft 5in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
6.55m / 21ft 6in
Gradeability
Gradeability
45%

Interested in hiring a LGMG T26J?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

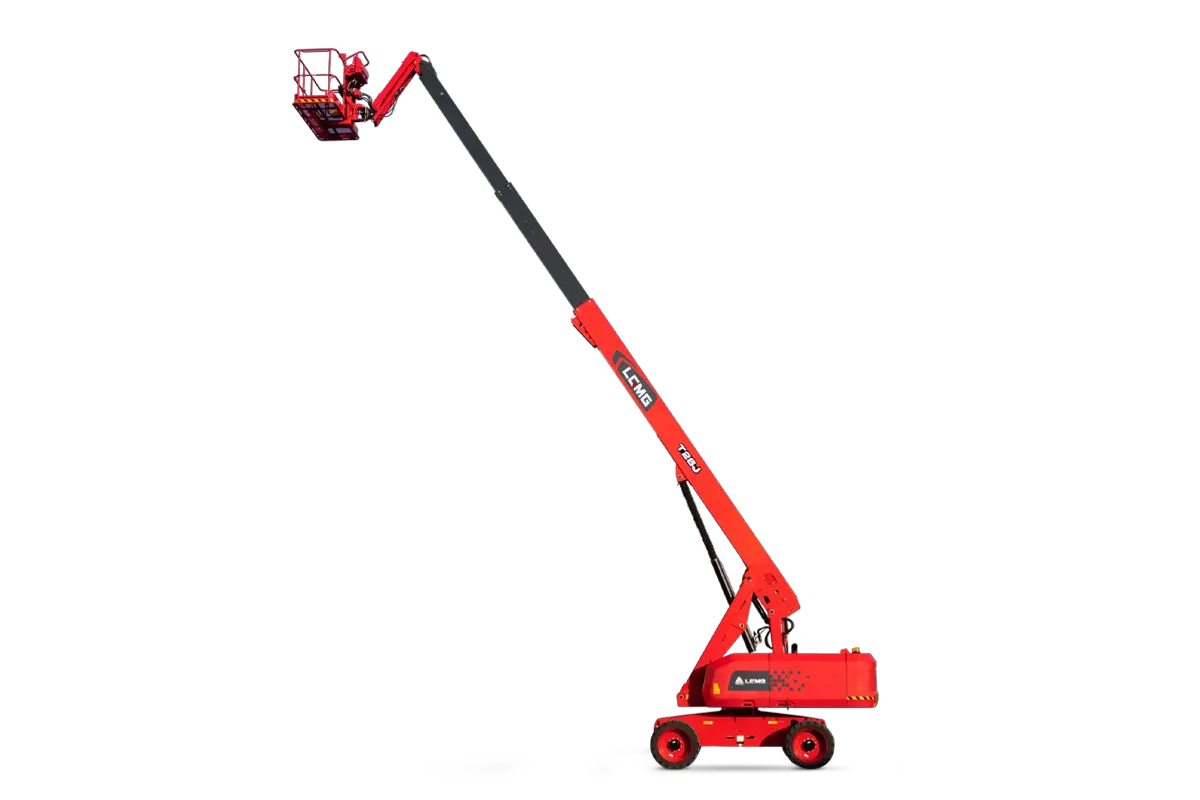

LGMG T26J Diesel Cherry Picker Super Boom

The LGMG T26J is a rough terrain diesel telescopic cherry picker suitable for a range of different applications. It can allow up to 3 people to work at the same time both indoors and outdoors, improving work efficiency. It features a 27.9m working height, 23.32m horizontal outreach and dual lift capacities of 250kg/340kg, making it extremely versatile when needing to lift materials/tools.

The rough-terrain tyres, four-wheel drive oscillating axles with proportional control ensures smooth, precise positioning and comfortable operation, delivering fantastic 45% gradeability and performance on rough terrain.

Its large platform of 1.83m x 0.76m allows occupants and their tools to work comfortably at height, reducing the number of times the platform has to be repositioned. It also offers 360° continuous turntable rotation making the LGMG T26J a great choice for a range of construction projects.

Key Features of the LGMG T26J

  • Oscillating axels and four-wheel drive delivers better gradeability on rough terrain
  • Proportional control ensures smooth driving, precise positioning and comfortable operation
  • Continuous 360° turntable rotation expands the operational area and makes
    operations more convenient
  • Swing out engine tray for easy access and maintenance.
  • Intelligent self-diagnostic system for quick troubleshooting.
  • Full-time floating axle, maximum 5 degrees tilt angle chassis
  • Smooth manoeuvring, precise positioning and comfortable operation
  • Automatic engine speed control, boom descends by its own weight
  • Increased lift capacity with a max. SWL of 250kg (unrestricted) and 340kg (restricted)
  • Tilt alarm with lift cut-out
  • Overload sensing system
  • Descent alarm with flashing beacon
  • Platform auto-leveling system
  • Emergency stop button
  • On-board diagnostic system
  • Oscillating axle
  • Four-wheel drive and break
  • Overtilt protection system
  • Anti-crush protection
  • Horn

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • “Up and Over” clearance

The LGMG T26J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The LGMG T26J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Extra Capacity

Extra Capacity
Four Wheel Drive

Four Wheel Drive
Stage V Engine

Stage V Engine
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
