JLG 1350SJP

JLG 1350SJP

JLG 1350SJP

Specification

Make
Make
JLG
Model
Model
1350SJP
Working Height
Working Height
43.3m / 142ft 1in
Platform Height
Platform Height
41.3m / 135ft 6in
Maximum Outreach
Maximum Outreach
25.03m / 82ft 2in
Min Weight
Min Weight
20,400.00kg / 45,084lbs
Safe Working Load
Safe Working Load
450.00kg / 995lbs

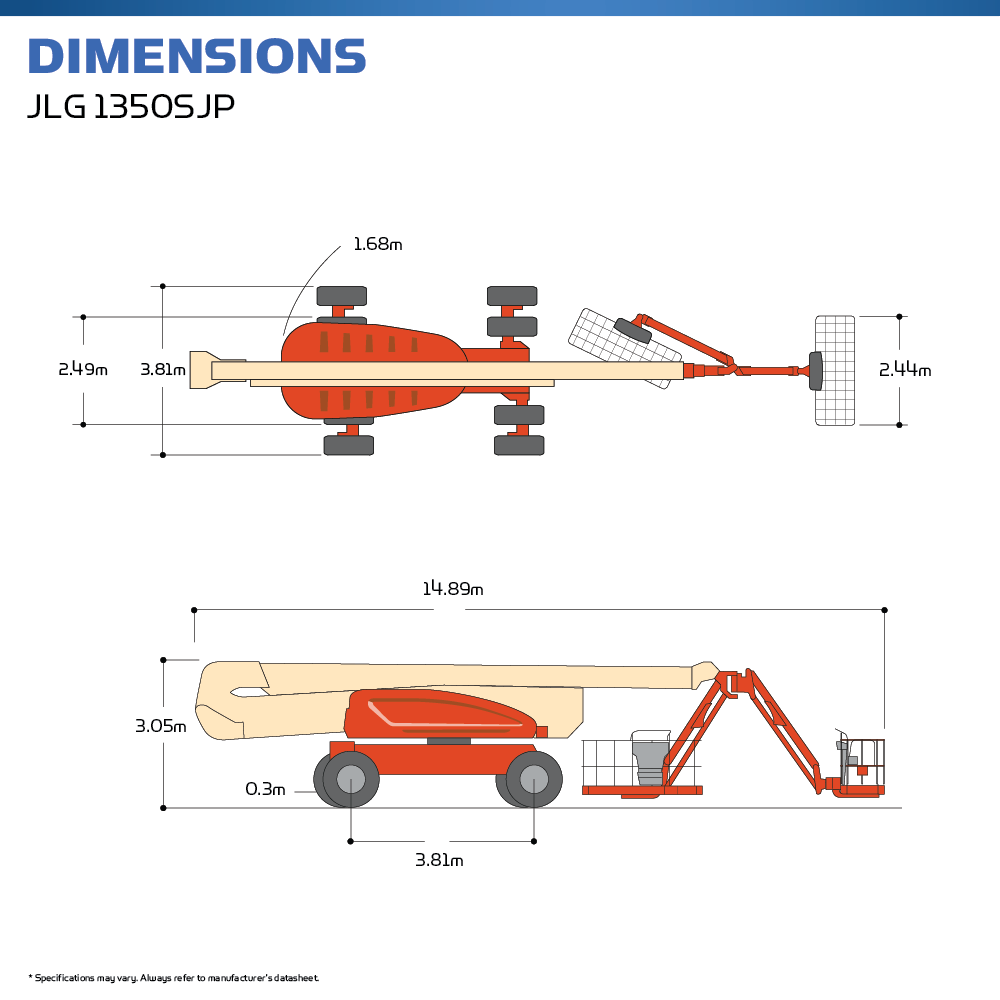

Machine Length
Machine Length
14.89m / 48ft 11in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
3.05m / 10ft 1in
Power Options
Power Options
Diesel
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a JLG 1350SJP?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

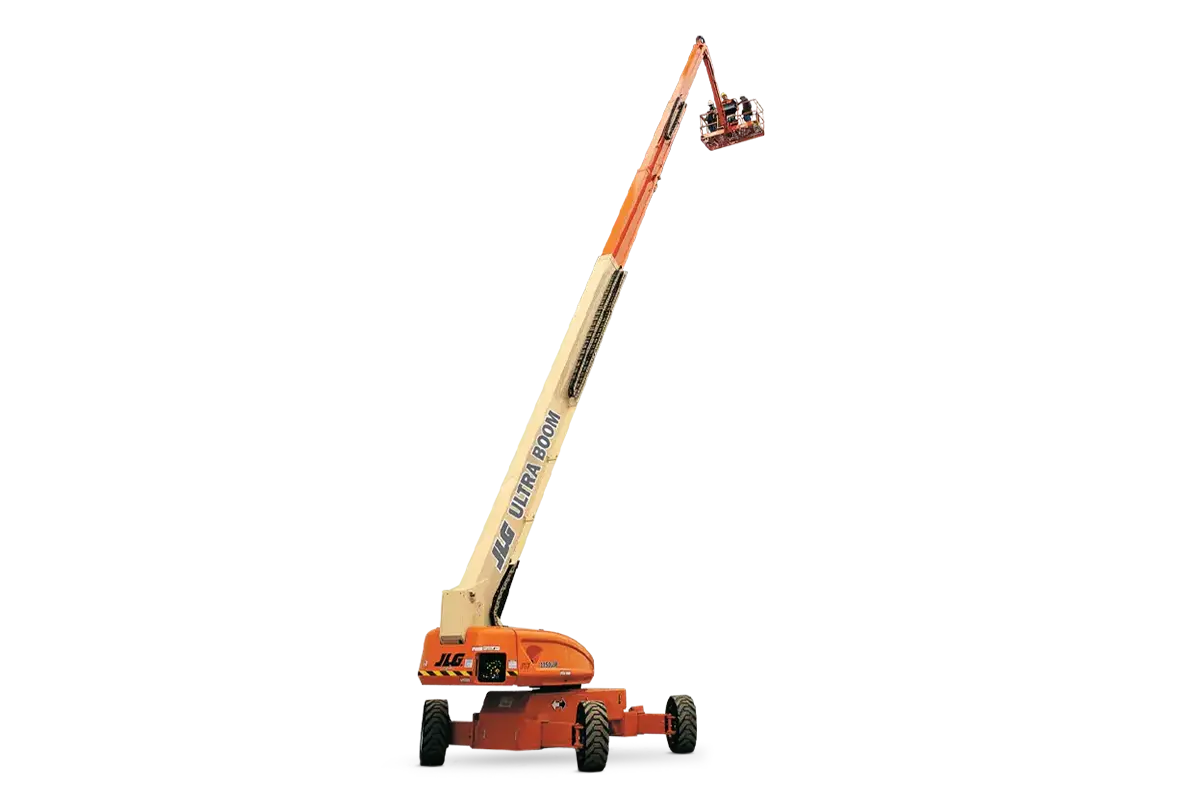

JLG 1350SJP Super MEWP

The JLG 1350SJP MEWP is also one of the largest telescopic booms on the UK market with an outreach of 25.03m.

This machine includes 4WD and four wheel steer capability, hydraulic differential lock and rough terrain tyres and its excellent ground clearance ensures class leading traction and mobility for a wide variety of jobs. Its platform capacity of up to 450kg provides fantastic versatility and operator productivity and the platform has the ability to carry either multiple operatives on board or a large amount of equipment required for the task at hand.

Key Features of the JLG 1350SJP

  • 0.91m x 2.44m low mount platform
  • Side entry with drop bar mid rail
  • Multiple function operation
  • Full proportional drive joystick control with integral thumb steer switch
  • Full proportional main boom and swing joystick control
  • Multiple speed control for telescope and platform rotate
  • 2.44m articulating jib
  • JibPLUS® with 4 way axis jib including 180° horizontal motion
  • Powered side stow on jib
  • 180° powered platform rotator
  • Platform console machine status light panel
  • Load sensing system
  • AC cable to platform
  • Gull-wing hoods
  • Swing-out engine tray
  • Spark arresting type muffler
  • Control ADE® (Advanced Design Electronics) System
  • Hydrostatic transmission
  • Four wheel drive
  • Four wheel steer/two wheel steer/crab steer
  • Horn
  • Selectable dual platform capacity system (230kg/450kg)
  • Drive-out extending axles
  • 5° tilt alarm and indicator light
  • Oscillating front axle
  • Lifting/tie down lugs
  • Ground control selector switch with key lock
  • Load sensing hydraulics
  • Platform tool tray
  • 12V DC auxiliary power
  • Engine distress warning/shut down system
  • Selectable creep speed on drive lift and swing functions
  • JLG Skyguard active system

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The JLG 1350SJP can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Nappies

Nappies
Onboard Generator

Onboard Generator
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The JLG 1350SJP comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Extra Capacity

Extra Capacity
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Crab Steering

Crab Steering
Four-Wheel Steering

Four-Wheel Steering
Four Wheel Drive

Four Wheel Drive
