Honest, reliable & reactive solutions for working at height

Genie SX-150

Genie SX-150

Genie SX-150

Specification

Make
Make
Genie
Model
Model
SX-150
Working Height
Working Height
48.33m / 158ft 7in
Platform Height
Platform Height
46.33m / 152ft 1in
Maximum Outreach
Maximum Outreach
24.38m / 80ft
Min Weight
Min Weight
22,657.00kg / 50,072lbs
Safe Working Load
Safe Working Load
340.00kg / 751lbs

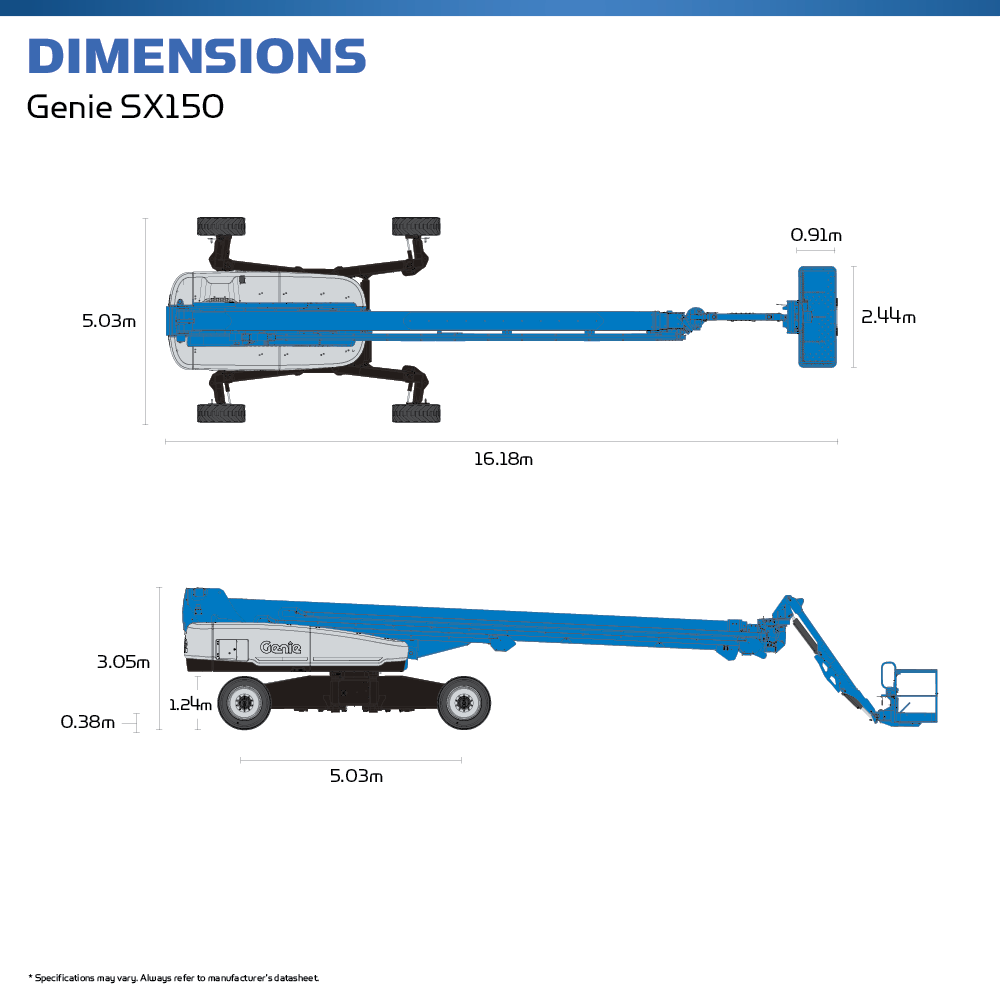

Machine Length
Machine Length
16.18m / 53ft 2in
Machine Width
Machine Width
2.49m / 8ft 3in
Machine Height
Machine Height
3.05m / 10ft 1in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
3.02m / 9ft 11in
Gradeability
Gradeability
35%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a Genie SX-150?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

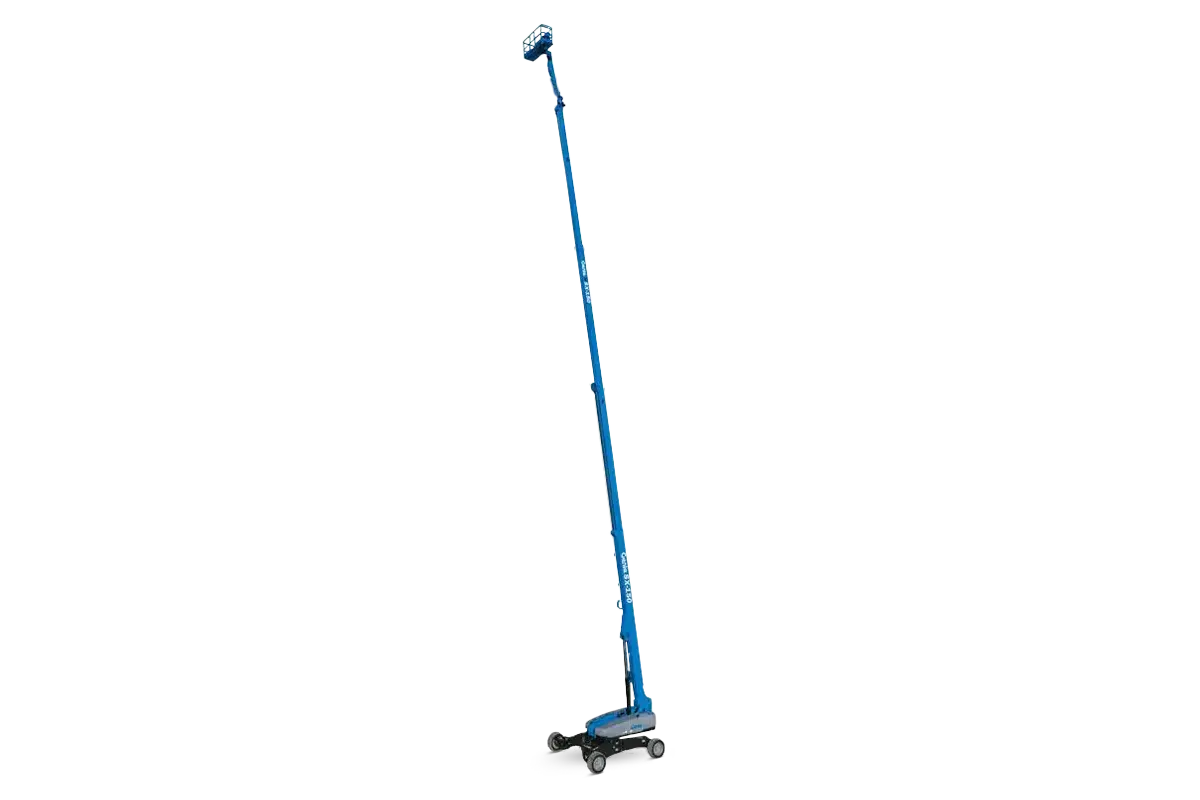

Genie SX-150 Super MEWP

The Genie SX-150 MEWP is one of the highest reaching, self-propelled Boom Lifts in the world and is the biggest boom manufactured by industry giants, Genie. This Mobile Elevating Work Platform has a striking working height of 48.33m and a working outreach out of 24.48m.

The innovative Genie SX-150 is designed and built to safely and quickly lift operators to the work face. This offers new working at height solutions for demanding applications in the oil and gas industries, commercial construction, industrial construction and for maintenance.

Whilst reaching amazing heights, the aerial platform is still light enough to transport easily between sites. It is also designed with an innovative chassis that extends to provide extra stability when working but still retracts down to a narrow and compact profile.

Key Features of the Genie SX-150

  • Suitable for extreme and challenging jobs with a working height of 48.33m
  • Rotating jib suitable for hard to reach access jobs
  • Self levelling platform
  • Hydraulic platform rotation
  • Small stowage dimensions for easy transportation
  • Ability to drive forward at full height

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The Genie SX-150 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Harness

Harness
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Genie SX-150 comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Crab Steering

Crab Steering
Four-Wheel Steering

Four-Wheel Steering

Interested in hiring a Genie SX-150?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
