Dingli BT30RT

Dingli BT30RT

Dingli BT30RT

Specification

Make
Make
Dingli
Model
Model
BT30RT
Working Height
Working Height
30.2m / 99ft 1in
Platform Height
Platform Height
28.2m / 92ft 7in
Maximum Outreach
Maximum Outreach
23m / 75ft 6in
Min Weight
Min Weight
18,900.00kg / 41,769lbs
Safe Working Load
Safe Working Load
454.00kg / 1,003lbs
Machine Length
Machine Length
12.08m / 39ft 8in
Machine Width
Machine Width
2.5m / 8ft 3in
Machine Height
Machine Height
2.96m / 9ft 9in
Power Options
Power Options
Diesel
Gradeability
Gradeability
45%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Dingli BT30RT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

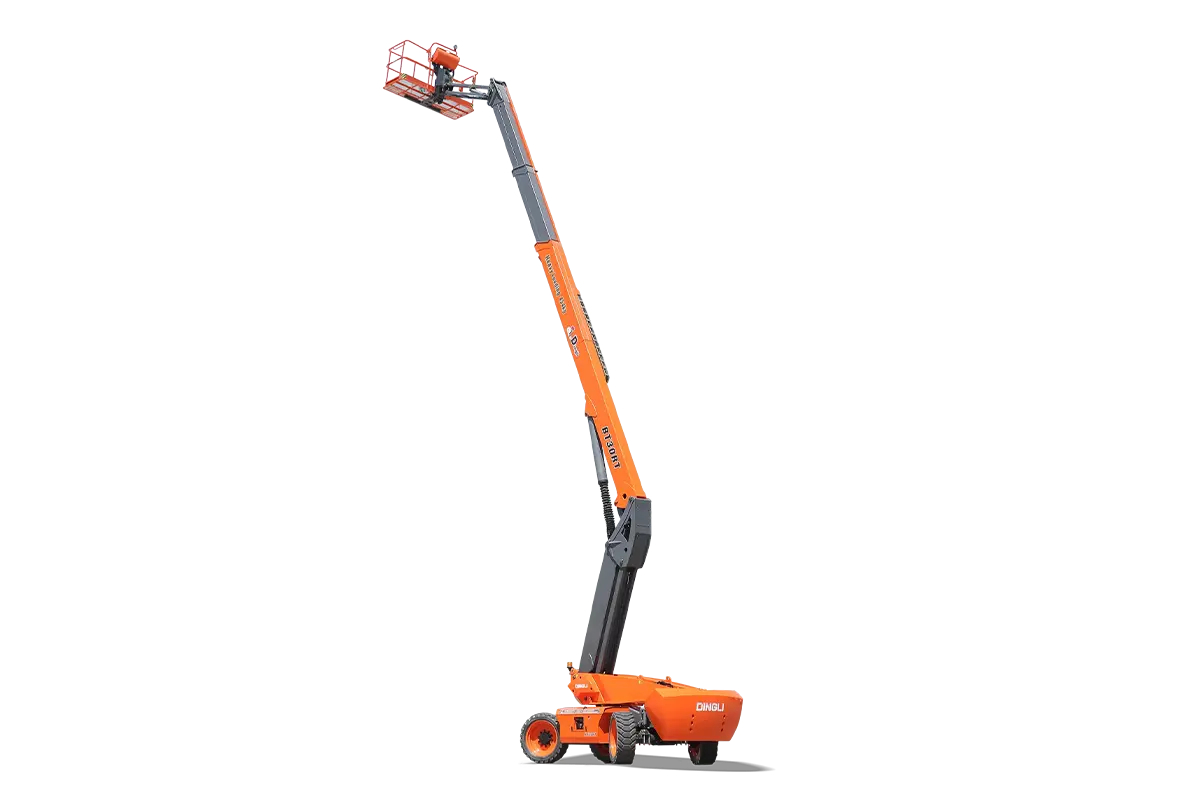

Dingli BT30RT Super MEWP

The Dingli BT30RT is a telescopic MEWP which offers a working height of just over 30m and has an impressive outreach of 22.7m.

It’s a diesel-powered MEWP that is ideal for use in external construction applications as well as general outdoor jobs. This machine (also known as Dingli BT30 ERT -  electric version) uses an axle-integrated four wheel drive system which ensures that it's completely capable of handling uneven terrain and challenging ground conditions typically related with industrial sites. The 4WD also has another benefit as it offers better off-road performance.

Furthermore, the centre of gravity moves down, making the stability of the whole machine stronger and ensures maximum steadiness. Even when operating at its impressive working height, this stability ensures maximum operator safety on a range of terrains.

Key Features of the Dingli BT30RT

  • Large telescopic boom platform for external use
  • Anti-entrapment (secondary guarding) as standard
  • Low centre of gravity for enhanced stability
  • Flexible in narrow spaces
  • Ability to transport in a container
  • Simple maintenance
  • All-terrain capability
  • 2.31m Jib
  • Front Oscillating Axle
  • Four-Wheel Steering
  • Four-Wheel Drive
  • Self-Levelling Platform
  • 180° Left And Right Swing Platform
  • Proportional Joystick Controls
  • Thumb Rocker Steer
  • Drive Enable
  • AC Power Cord To Platform
  • Tilt Alarm
  • Descent Alarm
  • Flash
  • Horn
  • Integral Integrated Special Drive Axle For Construction Machinery
  • 360° Continuous Turntable Rotation
  • Positive Traction Four Wheel Drive
  • Platform Load Sense System
  • Fault Diagnosis System
  • Operator Anti-crushing Protection System
  • Harsh Environment Kits
  • 12V DC Auxiliary Power
  • Deutz D2.9 L4 55.4kW /2600rpm Diesel Engine
  • Hydraulic Oil Radiator
  • Anti-restart Engine Protection
  • Anti-reverse Engine Device
  • Auto Engine Fault Shutdown

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

  • General building maintenance
  • General construction
  • Steel erection
  • Utilities work

The Dingli BT30RT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Chalwyn Valves

Chalwyn Valves
Harness

Harness
Nappies

Nappies
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Dingli BT30RT comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Large Basket

Large Basket
Oscillating Axles

Oscillating Axles
Power to Platform

Power to Platform
Rough Terrain Tyres

Rough Terrain Tyres
Four Wheel Drive

Four Wheel Drive
Four-Wheel Steering

Four-Wheel Steering
Crab Steering

Crab Steering
