Dingli BA44HRT Super MEWP

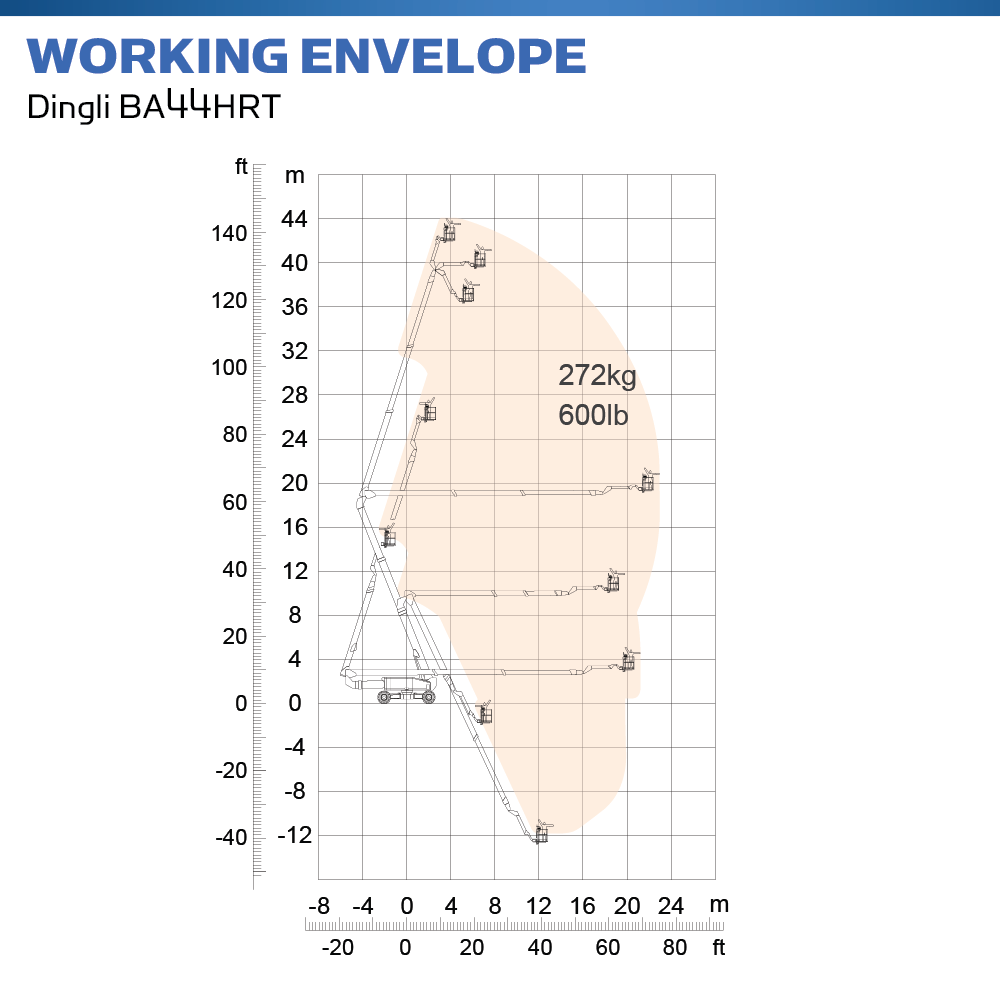

The Dingli BA44HRT is a hybrid powered articulated boom lift which offers a working height of 44.06m, an outreach of 22.97m and an 'up and over' clearance of 18.8m. It also offers an impressive maximum down probing depth of 9.65m, making it extremely useful if needing to work in areas where access is restricted, such as underneath bridges. It can lift up to two occupants and their tools (or up to 272kg) throughout its full working envelope, and comes equipped with numerous impressive features as standard, including 360° continuous rotation, 180° platform rotation and 226° jib movement.
Just like its diesel-powered counterpart, the Dingli BA44HRT boasts a 45% gradeability, powerful four-wheel drive and 3 steering modes (front-only, front & rear, and crab) making it ideal for a wide range of applications including construction, steel erection and cladding, where ground conditions may not be optimal. It also features 'one key in-situ axle expansion', which allows each axle to expand and retract whilst keeping the machine completely stationary; perfect in confined areas when space is limited.
This particular model benefits from Dingli's hybrid power system, utilising both a powerful 358.4V/173Ah lithium battery and a 55.4kw high power engine, meaning it can be used both internally and externally in a range of challenging environments.
One of the Dingli BA44HRT's most impressive features is its Category 3 safety architecture, offering full redundancy of electronic control software & hardware, giving your operators complete peace of mind in the event of a component failure.
Key Features of the Dingli BA44HRT
- Versatile Hybrid power system
- Large articulated boom platform for external use
- Axle-integrated 4WD system for better off-road performance
- Four-wheel steering
- Anti-entrapment (secondary guarding) as standard
- Low centre of gravity for enhanced stability
- Flexible in narrow spaces
- Simple maintenance
- All-terrain capability
- One-Key In-Situ Axle Expansion Technology
- Load Sense System
- 12V DC Auxiliary Power
- Hydraulic Oil Radiator
- Harsh Environment Kits
- Fault Diagnosis System
- Turntable Protection Lock
- High Stiffness Boom System
- Fully-Opened Chassis Cover
- AC Power Cord To Platform
- Descent & Movement Alarms
- 180°Left & Right Swing Platform
- Platform Rotation Angle Monitoring
- Platform Bottoming Out Protection
- Proportional Joystick Controls
- Loose & Broken Chain Monitoring
- Fast & Slow Speed Monitoring
- Working Condition Monitoring
- Engine Start & Stop Protection
- Rexroth Hydrostatic Drive System
- Automatic Steering Angle Matching
- Drive Forced Shunt & Merge Function
- Negative Pressure Brake With Detection
- Real-Time Machine Status Display System
- Cat.3 Safety Architecture - ISO 13849-1
- Operator Anti-Extrusion Protection System
- Deutz TD2.9 L4 55.4kW 2600rpm Diesel Engine
- 4.2m Amplitude Flexible Jib With Angle Detection
- 360°Turntable Continuous Rotation With Inspection
- Expandable Chassis With Proprietary Patented Design
- Horn
- Tilt Alarm
- Drive Enable
- Flashing Beacon
- Four-Wheel Drive
- Four-Wheel Steering
- In-Situ Axle Expansion
- Self-Levelling Platform
Recommended training course for this platform: IPAF Category: Mobile Boom (3b)
