Dingli 1923RTL

Dingli 1923RTL

Dingli 1923RTL

Specification

Make
Make
Dingli
Model
Model
1923RTL
Working Height
Working Height
19m / 62ft 5in
Platform Height
Platform Height
17m / 55ft 10in
Min Weight
Min Weight
10,530.00kg / 23,271lbs
Safe Working Load
Safe Working Load
680.00kg / 1,503lbs
Machine Length
Machine Length
4.46m / 14ft 8in
Machine Width
Machine Width
2.29m / 7ft 7in
Machine Height
Machine Height
3.6m / 11ft 10in
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
1m / 3ft 4in
Gradeability
Gradeability
40%

Interested in hiring a Dingli 1923RTL?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

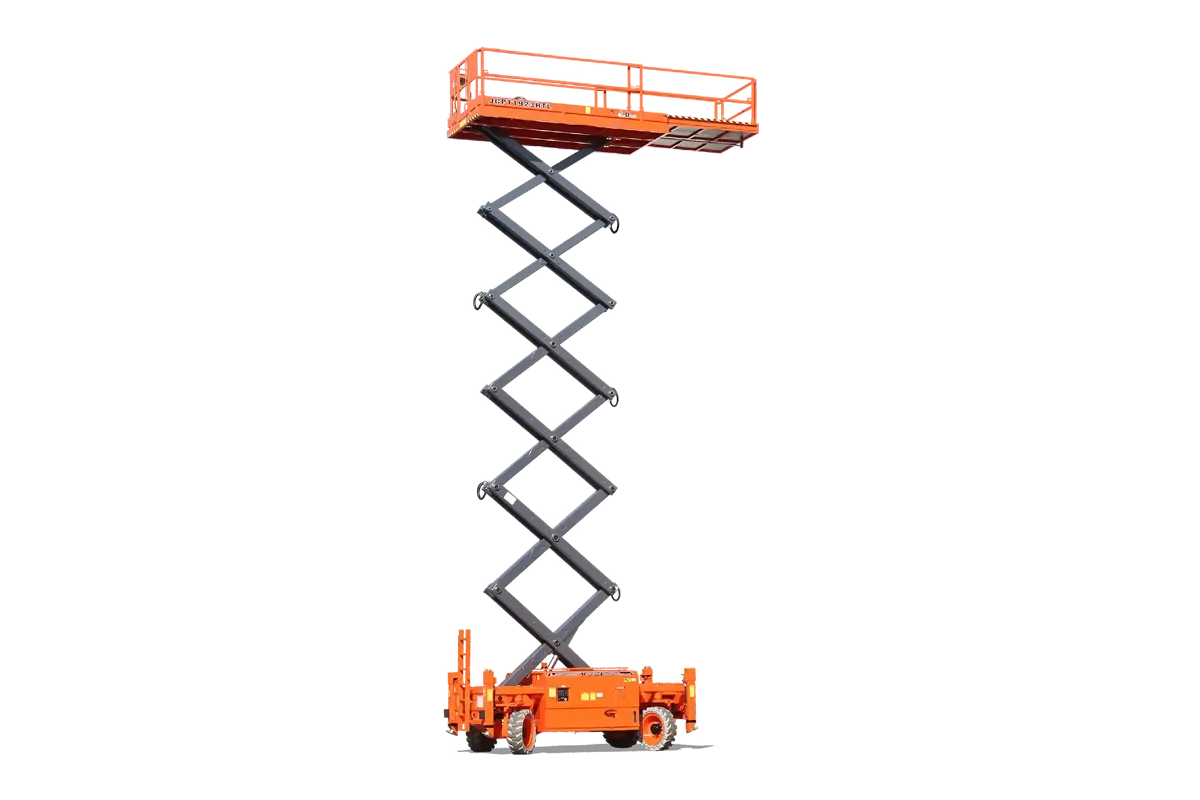

Dingli 1923RTL Diesel Scissor Lift

The Dingli 1923RTL is a 19m rough terrain Scissor Lift, powered by a 36.4kw high-power Diesel engine. It features 4WD and steering, seamless rough-terrain performance, automatic levelling and is driveable at full height with a large platform capacity of 680kg.

Equipped with a 4.06m x 2m large working platform, 2m automatic one-way extension deck, and automatic self-levelling outriggers, the Dingli 1923RTL is ideal for a range of applications where ground conditions are not optimal.

The machine itself measures 4.46m x 2.29m x 2.75m in length, width and height respectively and weighs approximately 10,530kg.

Key Features of the Dingli 1923RTL

  • Proportional Joystick Controls
  • Self-Locking Gates
  • Four-Wheel Drive
  • Four-Wheel Steering
  • Four-Wheel Braking
  • Onboard Fault Diagnostic System
  • Charging Protection System
  • Flashing LED Beacon
  • Foldable Guard Rails
  • Lanyard Attachment Point
  • Tie-Down And Lifting Points
  • Automatic Levelling Hydraulic Outriggers
  • Anti-Restart Engine Protection
  • Emergency Pump
  • Drivable At Full Height

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • General building maintenance
  • Heavy Duty tasks

Interested in hiring a Dingli 1923RTL?
