Ruthmann Bluelift SA11P

Ruthmann Bluelift SA11P

Ruthmann Bluelift SA11P

Specification

Make
Make
Ruthmann
Model
Model
SA11P
Working Height
Working Height
10.8m / 35ft 6in
Platform Height
Platform Height
8.8m / 28ft 11in
Maximum Outreach
Maximum Outreach
6.2m / 20ft 5in
Min Weight
Min Weight
1,535.00kg / 3,392lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

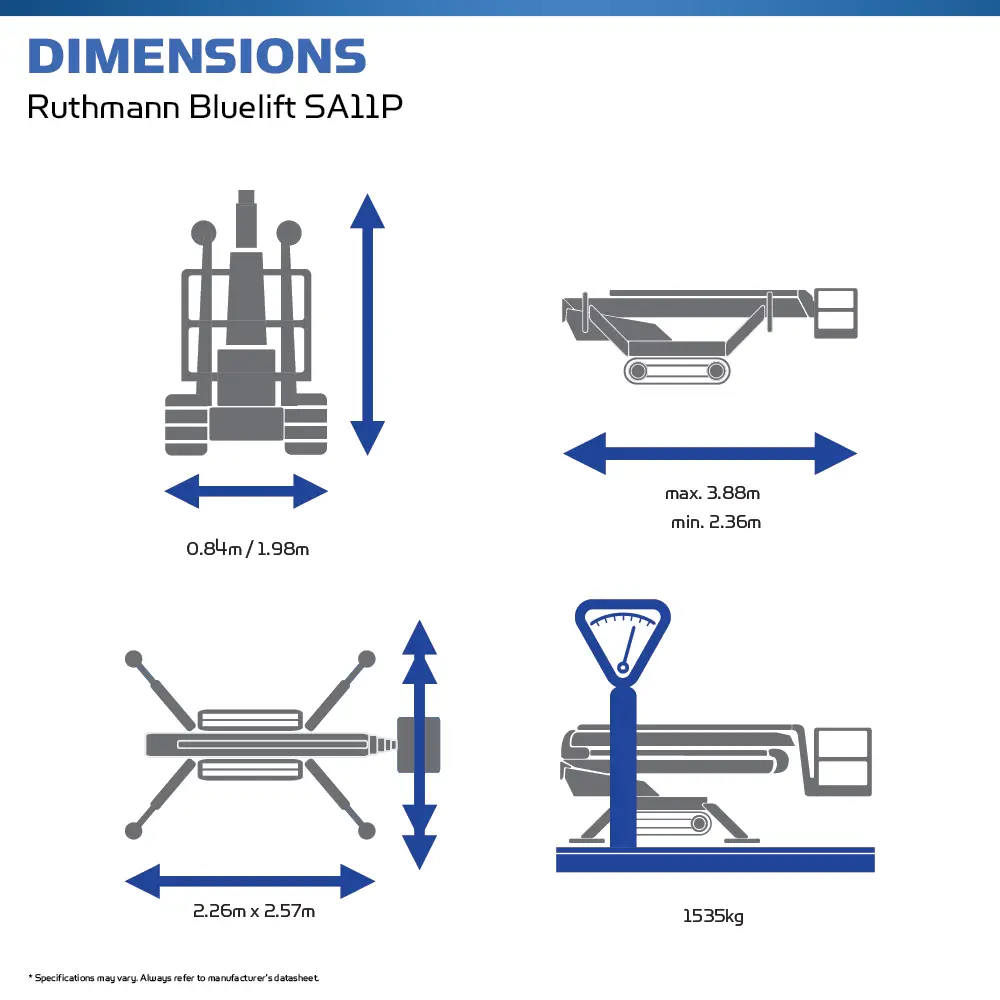

Machine Length
Machine Length
2.36m / 7ft 9in
Machine Width
Machine Width
0.84m / 2ft 10in
Machine Height
Machine Height
1.98m / 6ft 6in
Power Options
Power Options
Electric/Battery
Gradeability
Gradeability
28%
Cage Rotation
Cage Rotation
160 degrees

Interested in hiring a Ruthmann Bluelift SA11P?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Key Features Accessories Ideal Applications Overview Resources

Ruthmann Bluelift SA11P Spider Lift

The total length of the Ruthmann Bluelift SA11P work platform can be reduced to its minimum due to the removable work basket. When the work basket is removed, the machine's work platform can even fit  through single doors without difficulty and attaching, removing, and transporting the work basket is quick and easy. The Ruthmann Bluelift SA11P is equipped with a Self Stabilizing System which is a valuable feature. With just one lever, the spider lift (tracked-drive) work platform can conveniently position itself automatically, reducing set-up time and will guarantee safe and fuss-free operation, especially in rough and uneven terrain.

Key Features of the Ruthmann Bluelift SA11P

  • Quickly removable aluminum basket
  • Removable jib
  • Basket rotation
  • Blue lithium pack
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Radio remote control with interactive and multi-lingual display
  • Moment limiting device
  • Automatic center position of turret
  • Self-stabilizing system
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Drive speed system with safety control
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Electric pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atrium’s
  • Building and factory maintenance
  • Finished floors
  • Narrow access

The Ruthmann Bluelift SA11P can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Ruthmann Bluelift SA11P comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Extra Capacity

Extra Capacity
